Planetary Gearbox BLDC Geared Motor
Gearmotors and Gearboxes

PG60-EC5776012

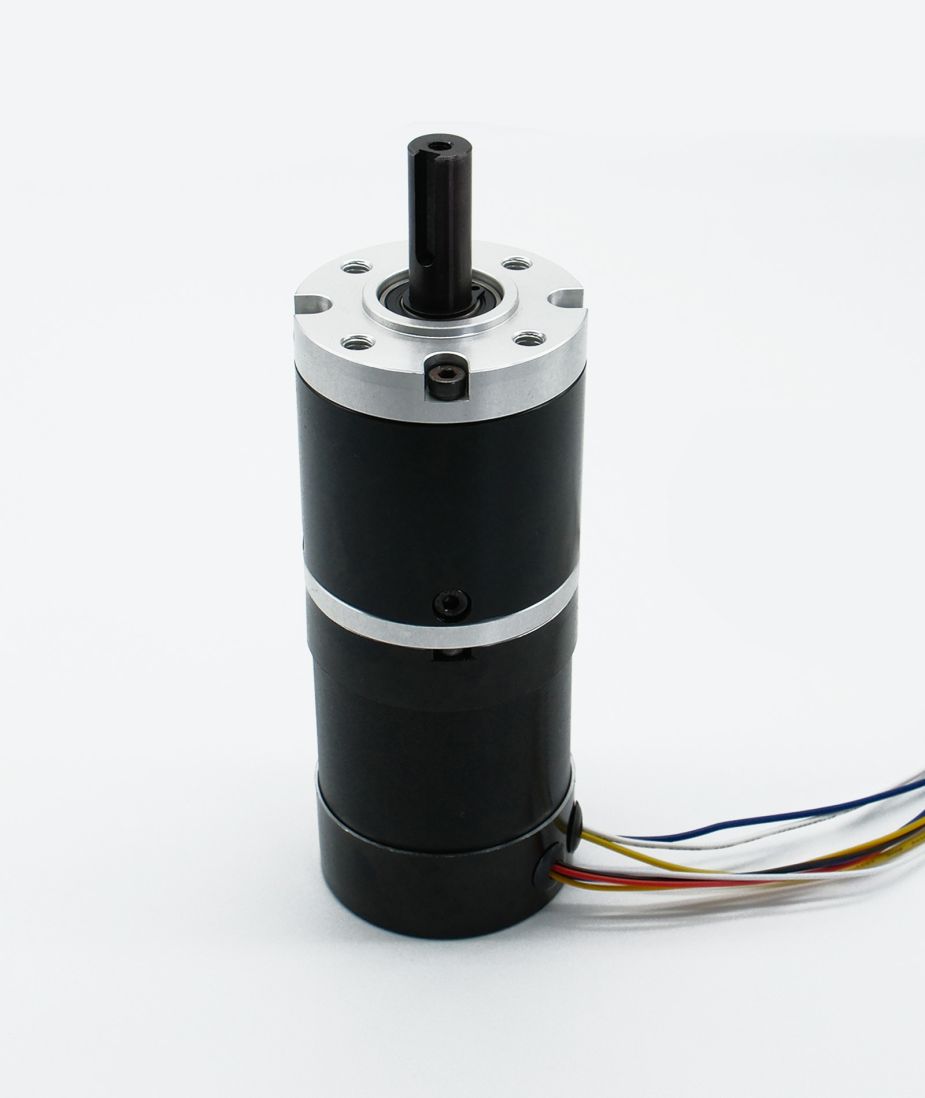

Planetary Gearbox BLDC Geared Motor Ø60mm Reduction drive
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
PG60-EC5776012
Gearbox Model
PG60
Gearbox Type
Planetary Gearboxes
Motor in Use
EC5776012
>> Motor details
Type of Motor
Brushless DC Motors
Gearbox Diameter (Ø mm)
60
Gearhead Data
Reduction RatioNumber of
Gear Stages		Gearbox Housing
Length (mm)		No-load Speed
(rpm)		Nominal Speed
(rpm)		Nominal Torque
(gf.cm)
3.56
1
39.5
1292
969
2.85
5.1
1
39.5
902
676
4.08
12.7
2
50.5
362
272
8.89
18.2
2
50.5
253
190
12.74
26
2
50.5
177
133
18.2
45
3
61.6
102
77
27
64.6
3
61.6
71
53
38.76
92.6
3
61.6
50
37
55.56
132.6
3
61.6
35
26
79.56
160.6
4
77.6
29
21
80.3
230
4
77.6
20
15
115
329.6
4
77.6
14
10
164.8
472
4
77.6
10
7
236
676.5
4
77.6
7
5
338.25

Dimension Drawing

dimension drawing
