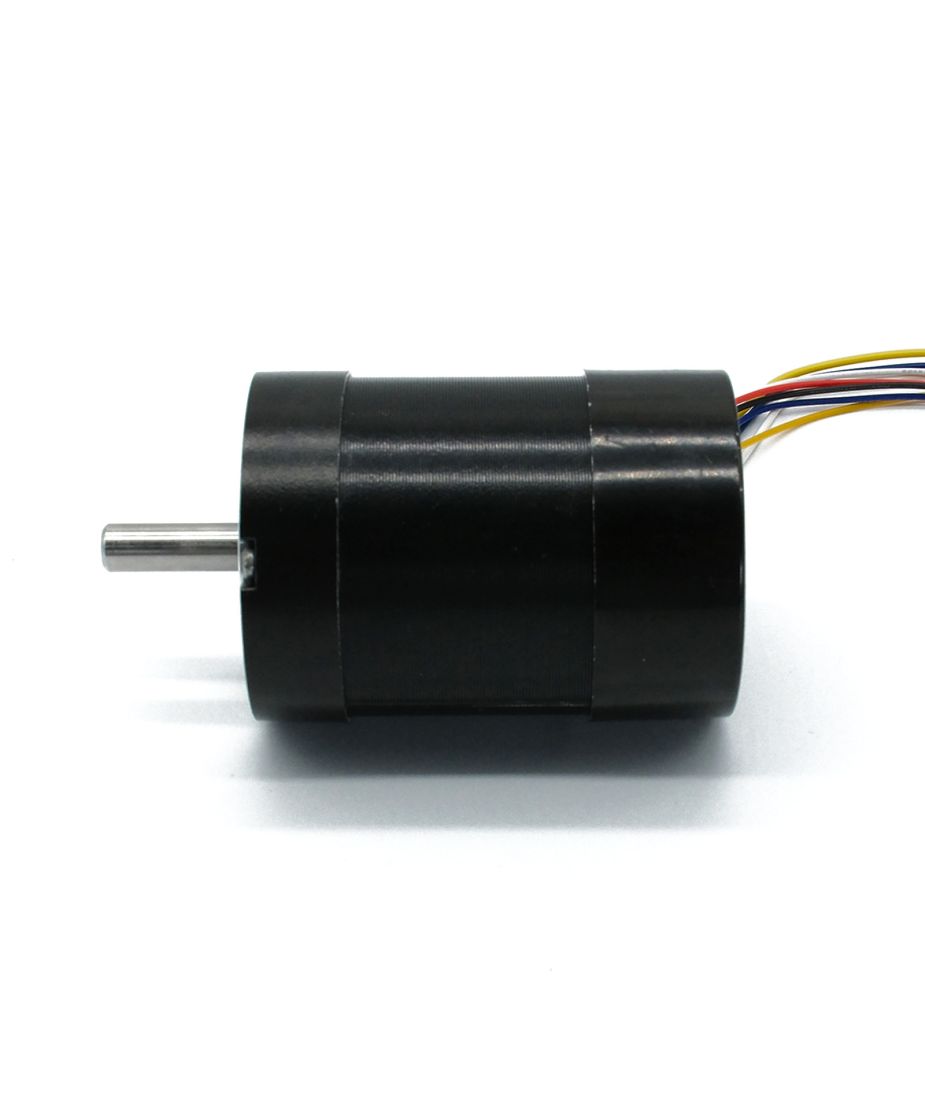

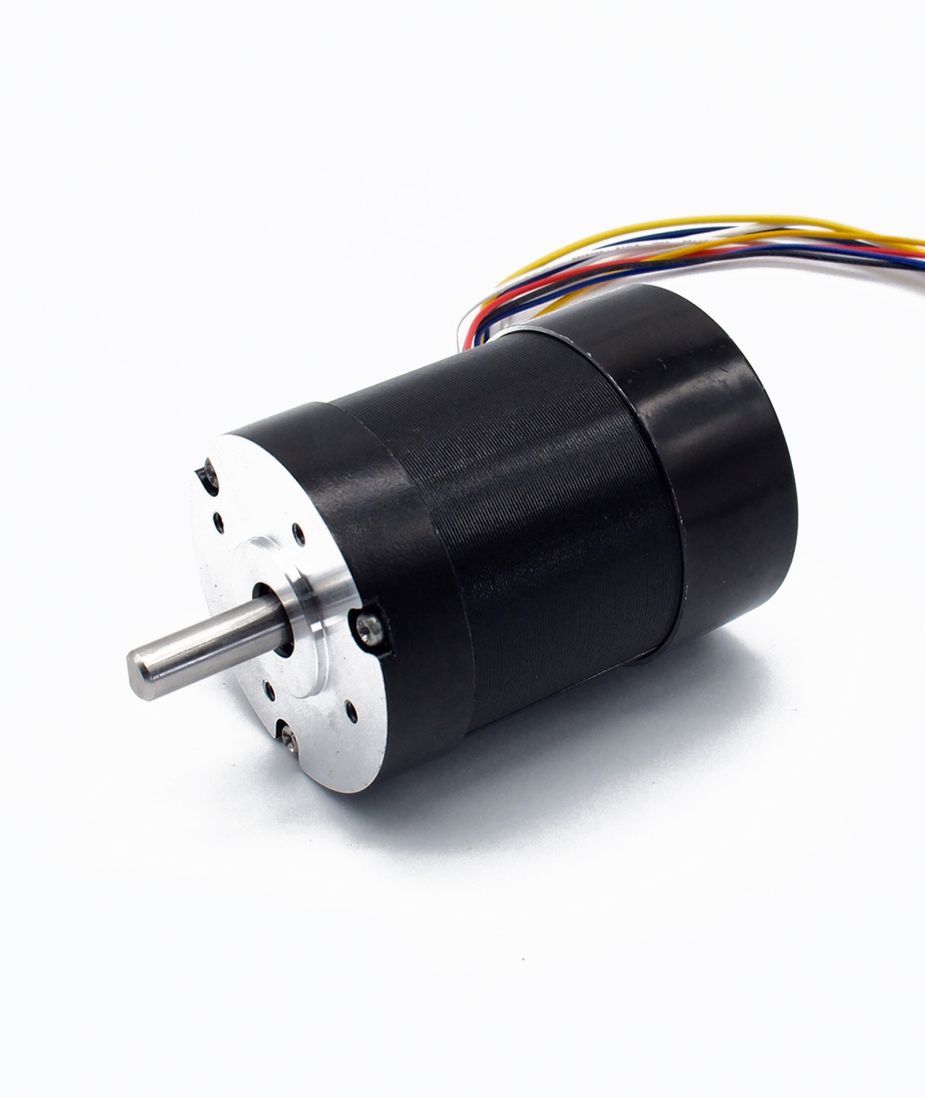

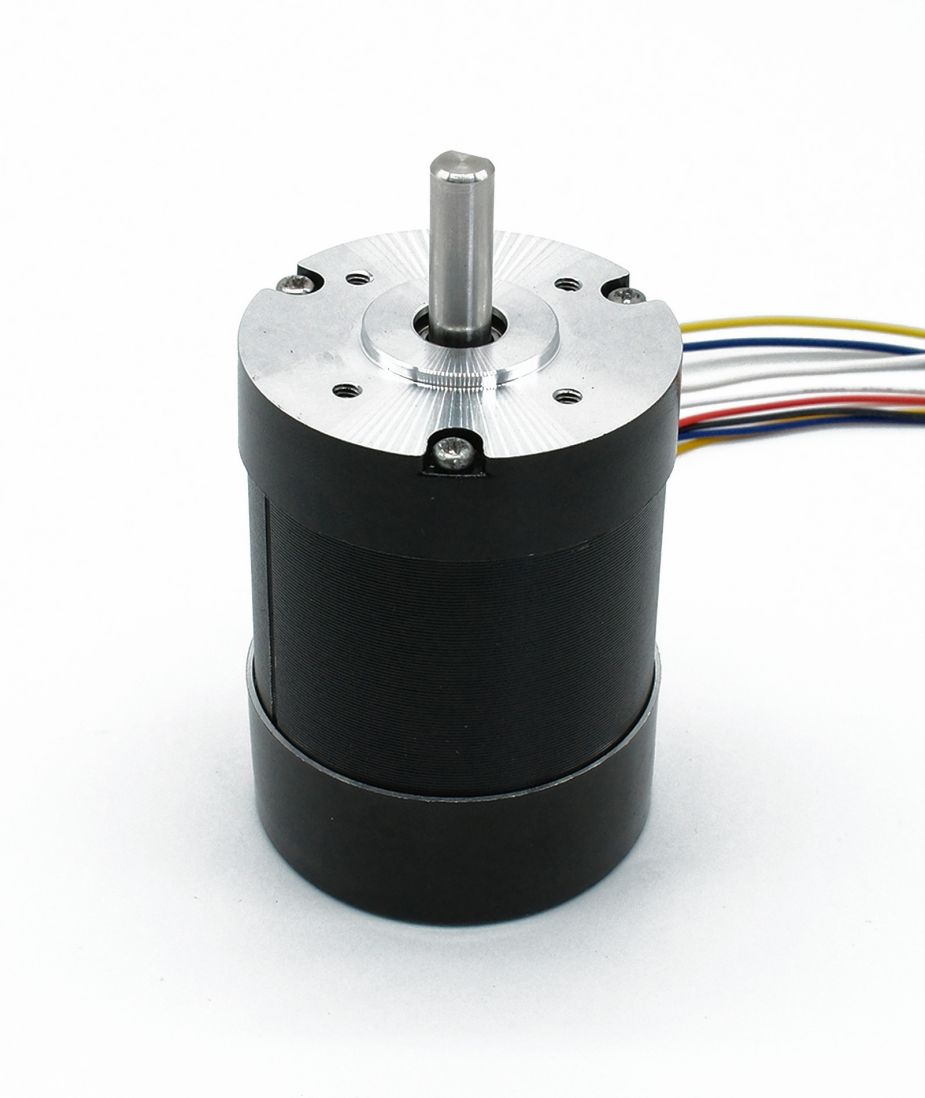

Diameter Ø57mm BLDC Brushless DC Motor
Brushless DC Motors

EC5776012

EC5776012 Brushless DC Motor Ø57mm BLDC 12V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC5776012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
57
Housing Length (mm)
75.5
Shaft Diameter (Ø mm)
8
No-load Speed (rpm)
4600
No-load Current (A)
0.00064
Nominal Speed (rpm)
3450
Nominal Torque (gf.cm)
1000
Nominal Current (A)
0.0037
Nominal Power (W)
44
Stall Torque (gf.cm)
5600
Stall Current (A)
24
Life (hr Typical)
5000
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
