Planetary Gearbox BLDC Geared Motor
Gearmotors and Gearboxes

PG60-EC57115024

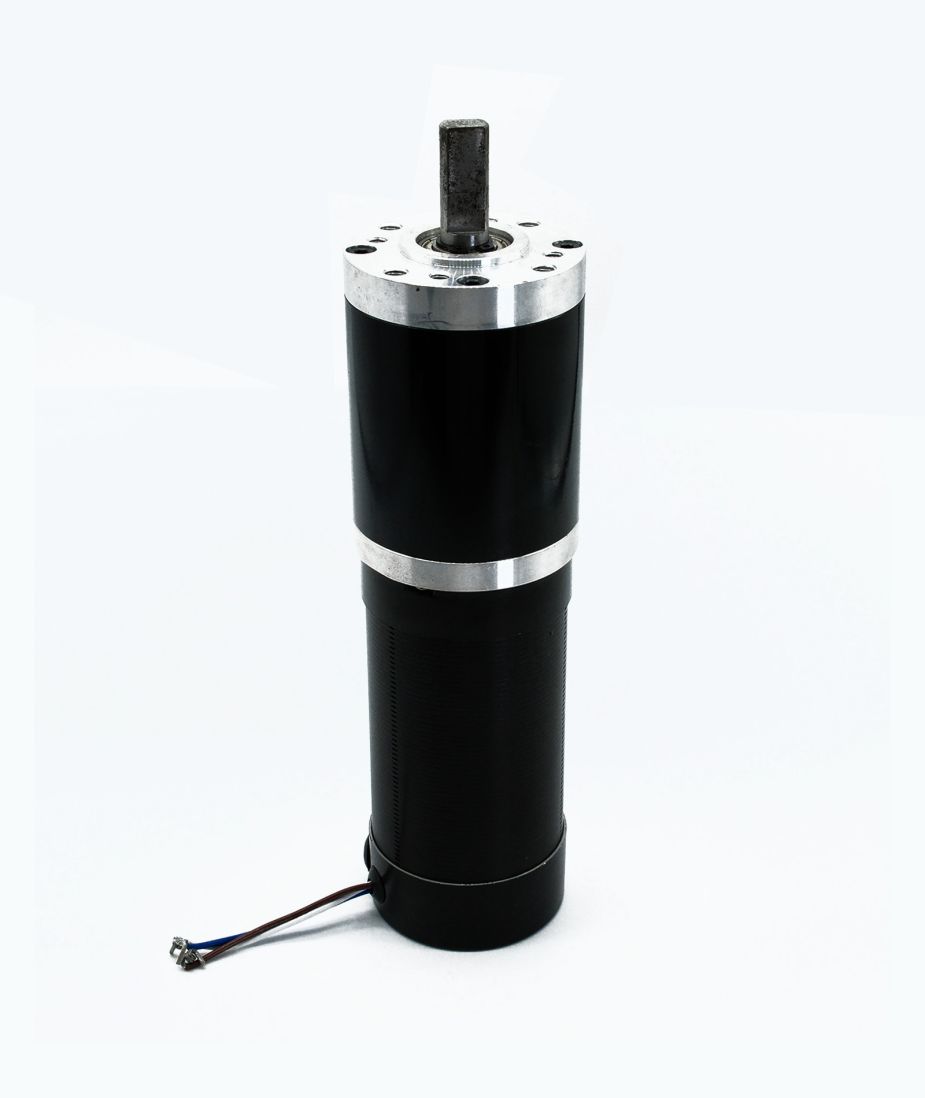

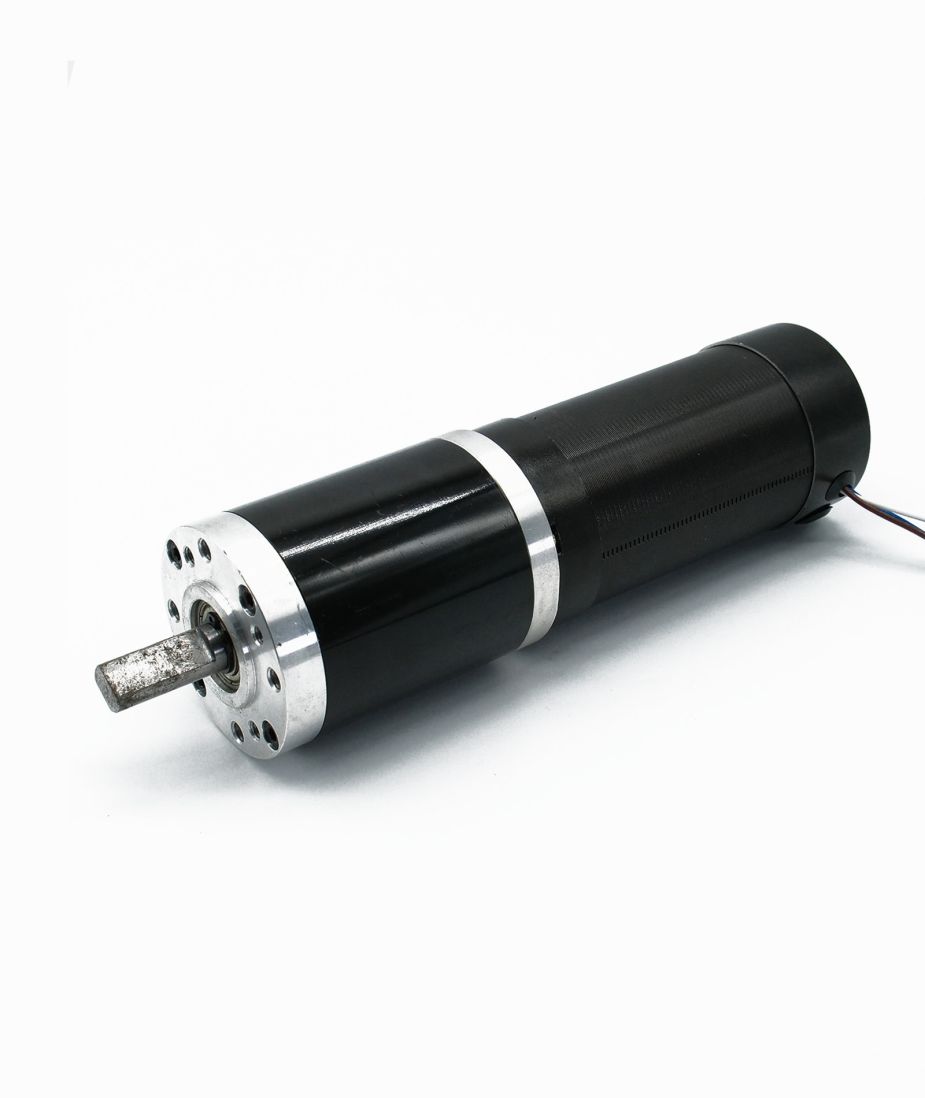

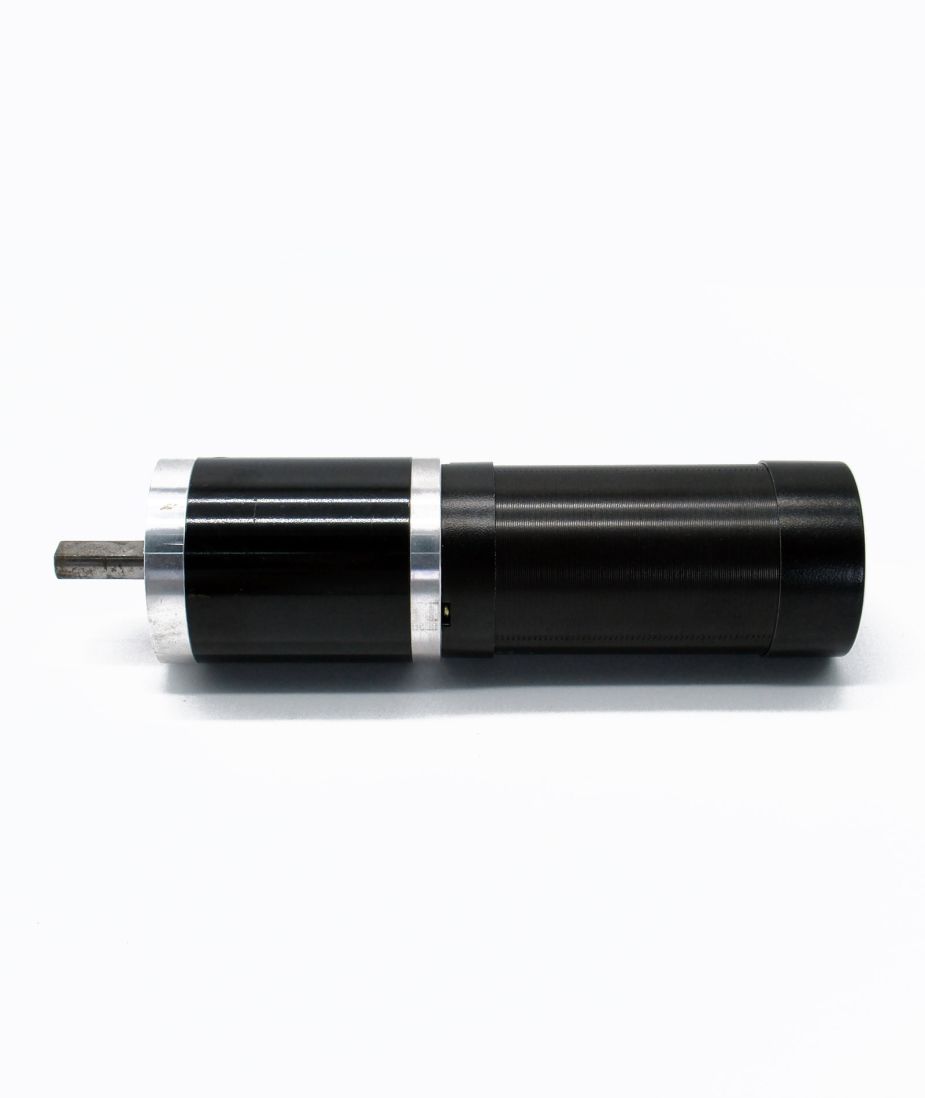

Planetary Gearbox BLDC Geared Motor Ø60mm Reduction drive
  • Free Delivery in 3-5 Working Days
  • Flexible Rental Period
  • Free Easy Returns
Send a Request

Specifications

Model
PG60-EC57115024
Gearbox Model
PG60
Gearbox Type
Planetary Gearboxes
Motor in Use
EC57115024
>> Motor details
Type of Motor
Brushless DC Motors
Gearbox Diameter (Ø mm)
60
Gearhead Data
Reduction RatioNumber of
Gear Stages		Gearbox Housing
Length (mm)		No-load Speed
(rpm)		Nominal Speed
(rpm)		Nominal Torque
(gf.cm)
3.56
1
39.5
1264
885
8.54
5.1
1
39.5
882
618
12.24
12.7
2
50.5
354
248
26.67
18.2
2
50.5
247
173
38.22
26
2
50.5
173
121
54.6
45
3
61.6
100
70
81
64.6
3
61.6
70
49
116.28
92.6
3
61.6
49
34
166.68
132.6
3
61.6
34
24
238.68
160.6
4
77.6
28
20
240.9
230
4
77.6
20
14
345
329.6
4
77.6
14
10
450
472
4
77.6
10
7
450
676.5
4
77.6
7
5
450
