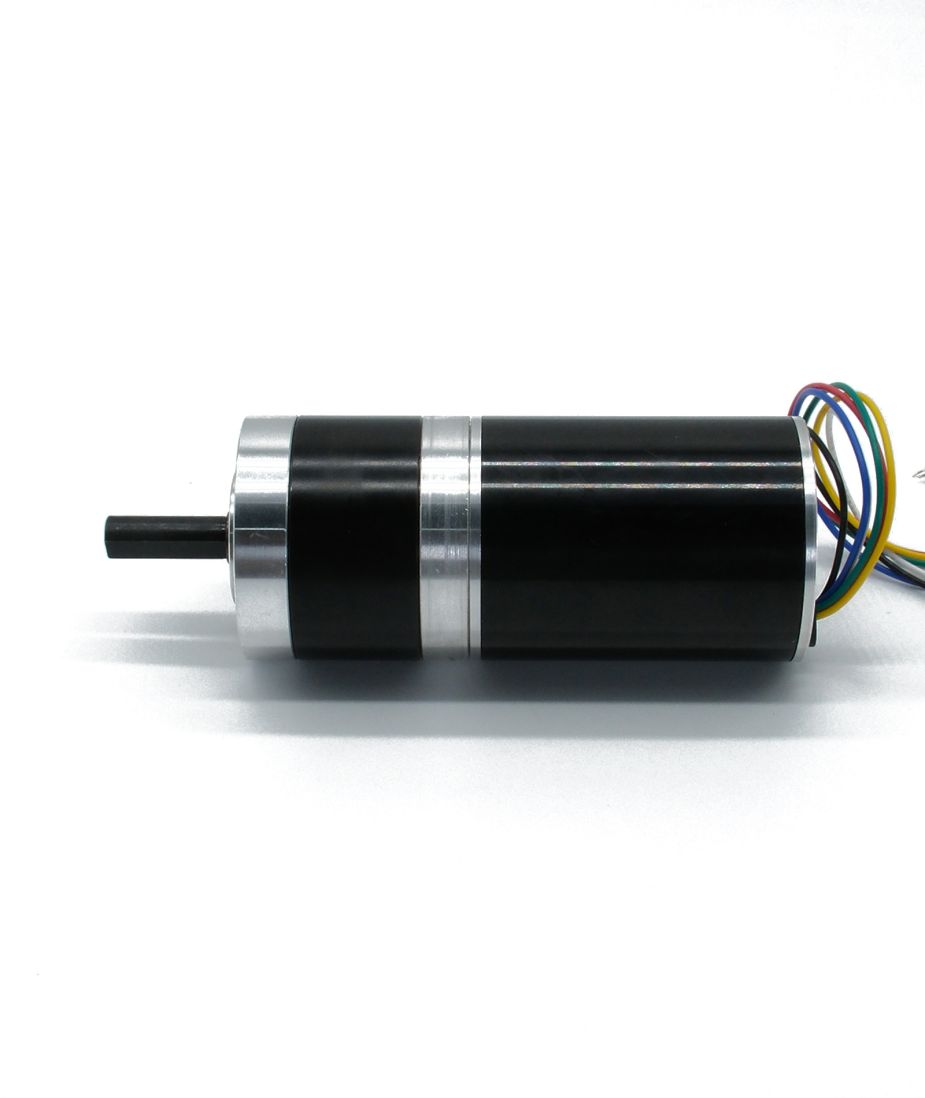

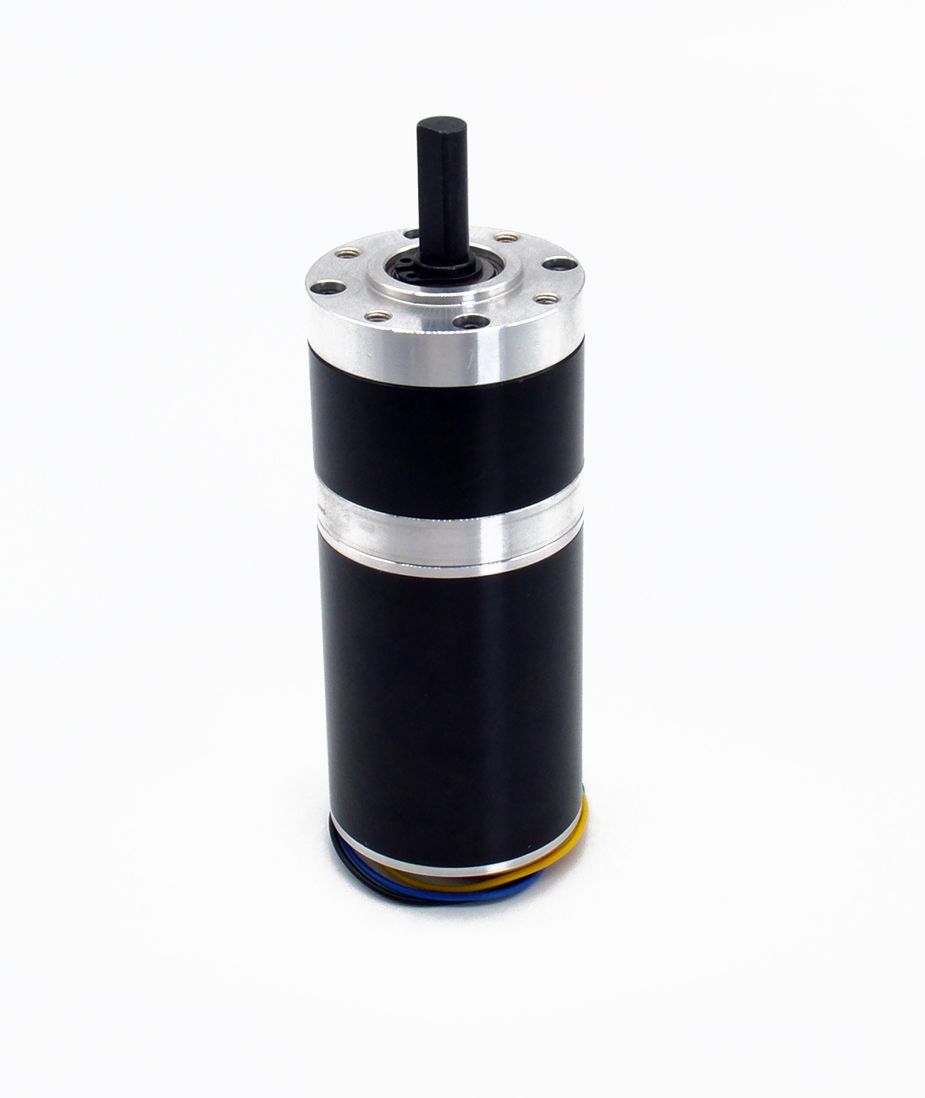

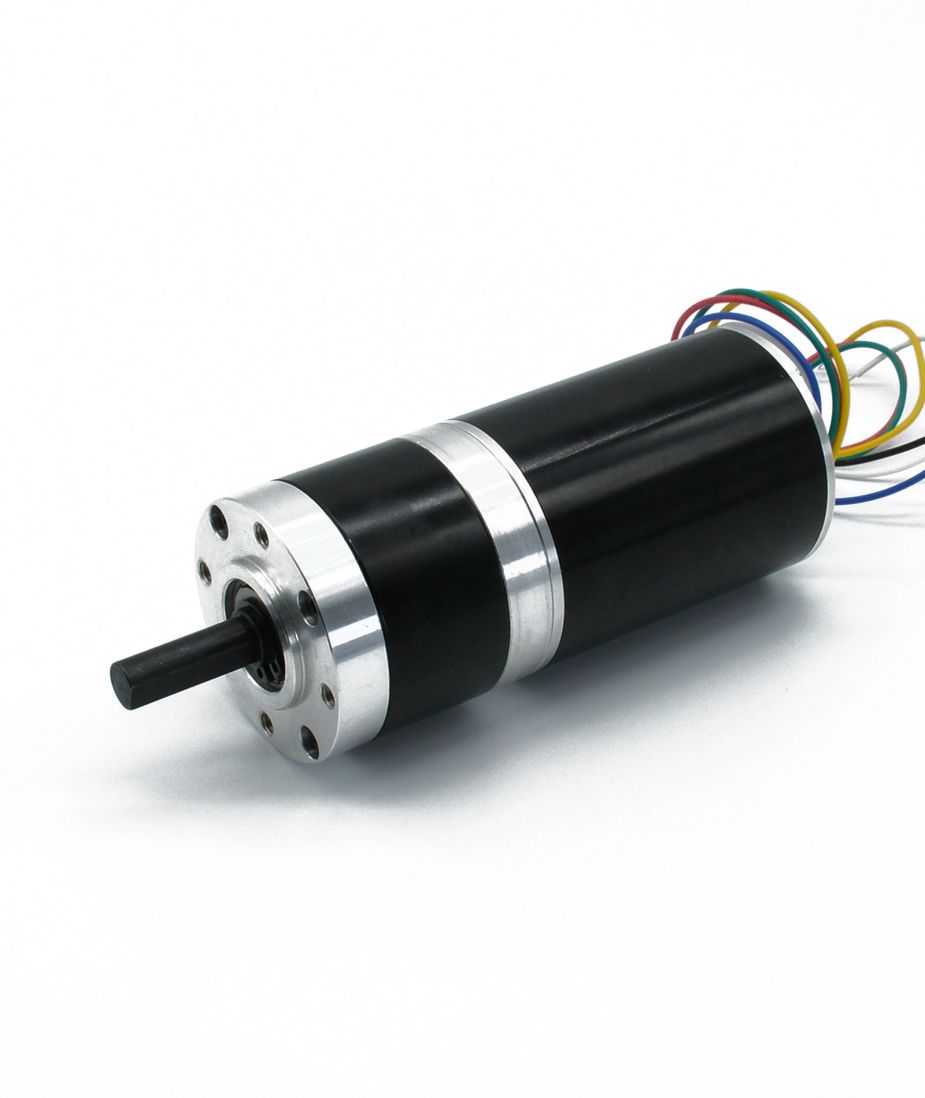

Planetary Gearbox BLDC Geared Motor
Gearmotors and Gearboxes

PG45-EC4560024

Planetary Gearbox BLDC Geared Motor Ø45mm Reduction drive
  • Free Delivery in 3-5 Working Days
  • Flexible Rental Period
  • Free Easy Returns
Send a Request

Specifications

Model
PG45-EC4560024
Gearbox Model
PG45
Gearbox Type
Planetary Gearboxes
Motor in Use
EC4560024
>> Motor details
Type of Motor
Brushless DC Motors
Gearbox Diameter (Ø mm)
45
Gearhead Data
Reduction RatioNumber of
Gear Stages		Gearbox Housing
Length (mm)		No-load Speed
(rpm)		Nominal Speed
(rpm)		Nominal Torque
(gf.cm)
3.7
1
33.1
2027
1486
2.96
5
1
33.1
1500
1100
4
13.7
2
41.2
547
401
9.59
18.5
2
41.2
405
297
12.95
25
2
41.2
300
220
17.5
51
3
49.3
147
108
30.6
68.5
3
49.3
109
80
41.1
92.5
3
49.3
81
59
55.5
125
3
49.3
60
44
70
188
4
60.4
40
29
70
256
4
60.4
29
21
70
345
4
60.4
22
16
70
462
4
60.4
16
12
70
625
4
60.4
12
9
70
