Diameter Ø45mm BLDC Brushless DC Motor
Brushless DC Motors

EC4560024

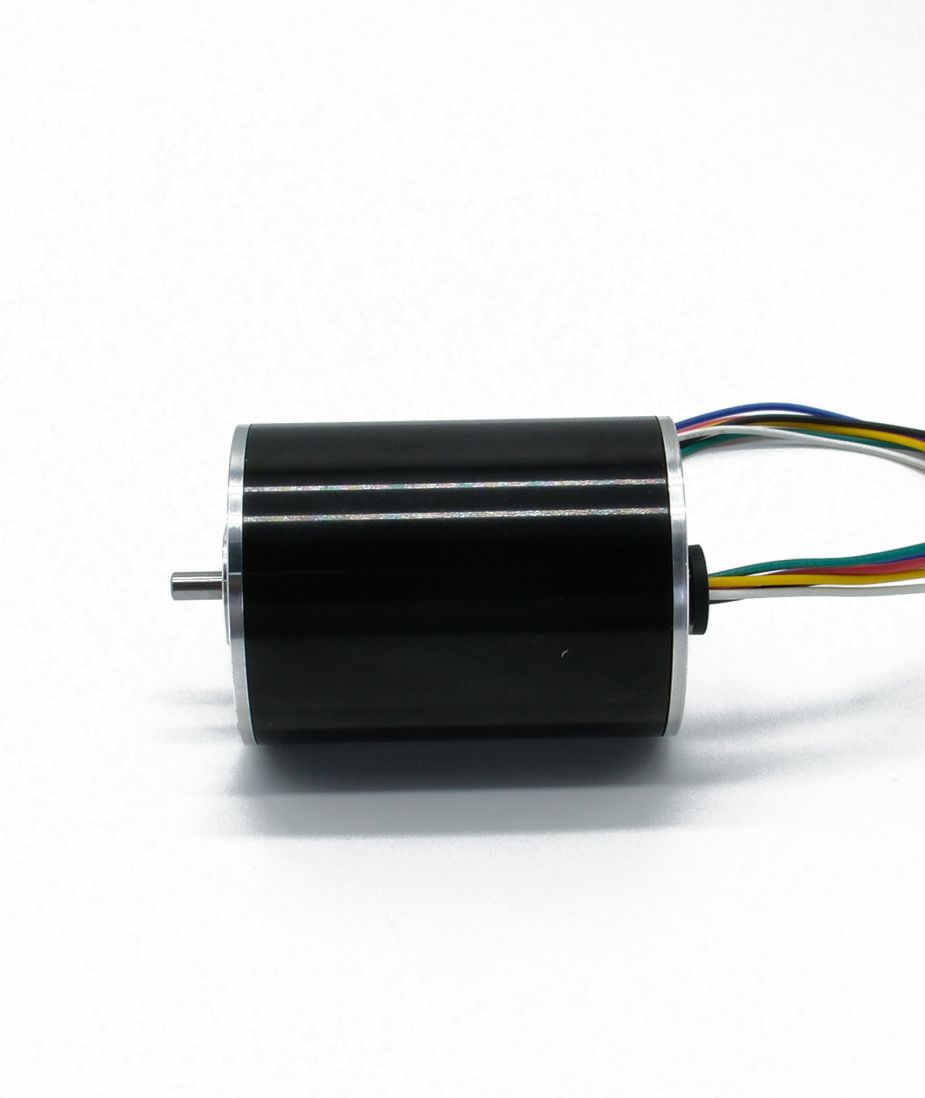

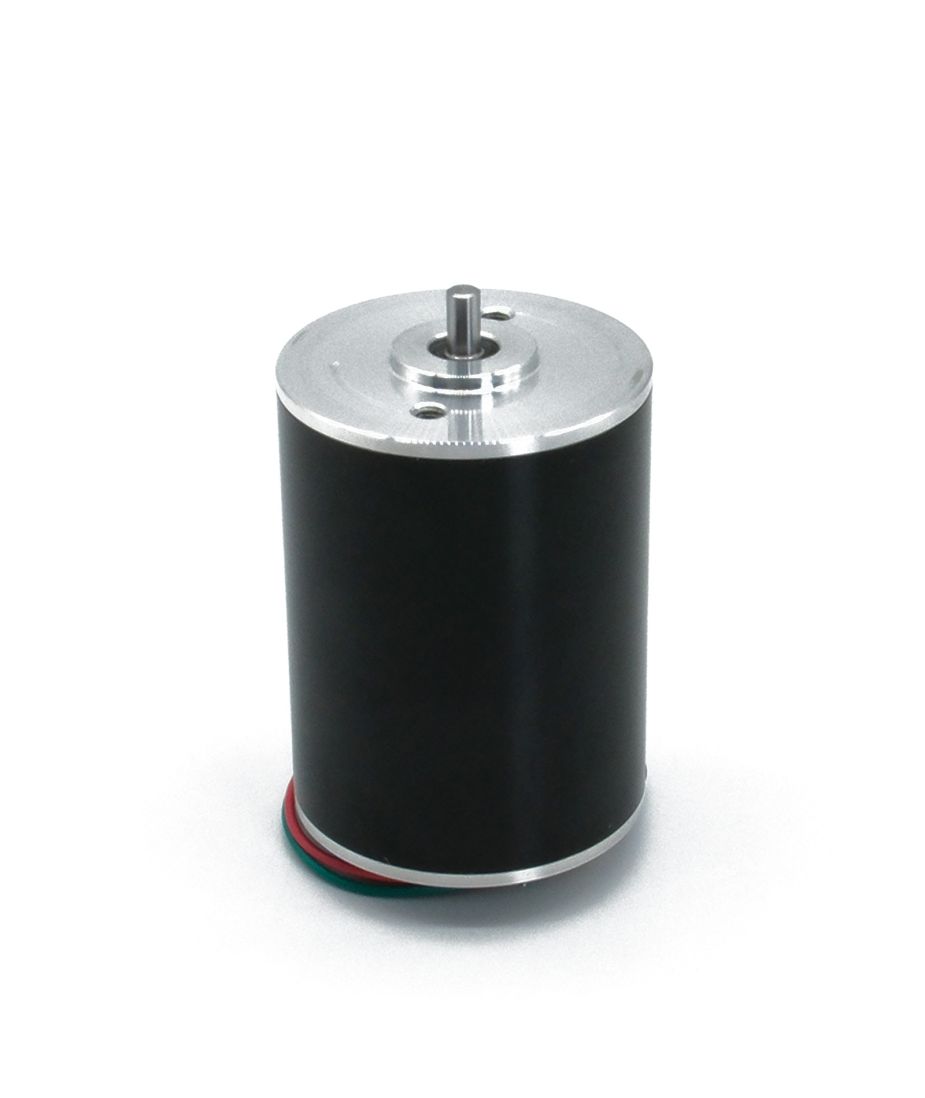

EC4560024 Brushless DC Motor Ø45mm BLDC 24V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC4560024
Nominal Voltage (V DC)
24
Motor Diameter (Ø mm)
45
Housing Length (mm)
60
Shaft Diameter (Ø mm)
6
No-load Speed (rpm)
7500
No-load Current (A)
0.00031
Nominal Speed (rpm)
5500
Nominal Torque (gf.cm)
1000
Nominal Current (A)
0.003
Nominal Power (W)
72
Stall Torque (gf.cm)
5000
Stall Current (A)
17
Life (hr Typical)
5000
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
