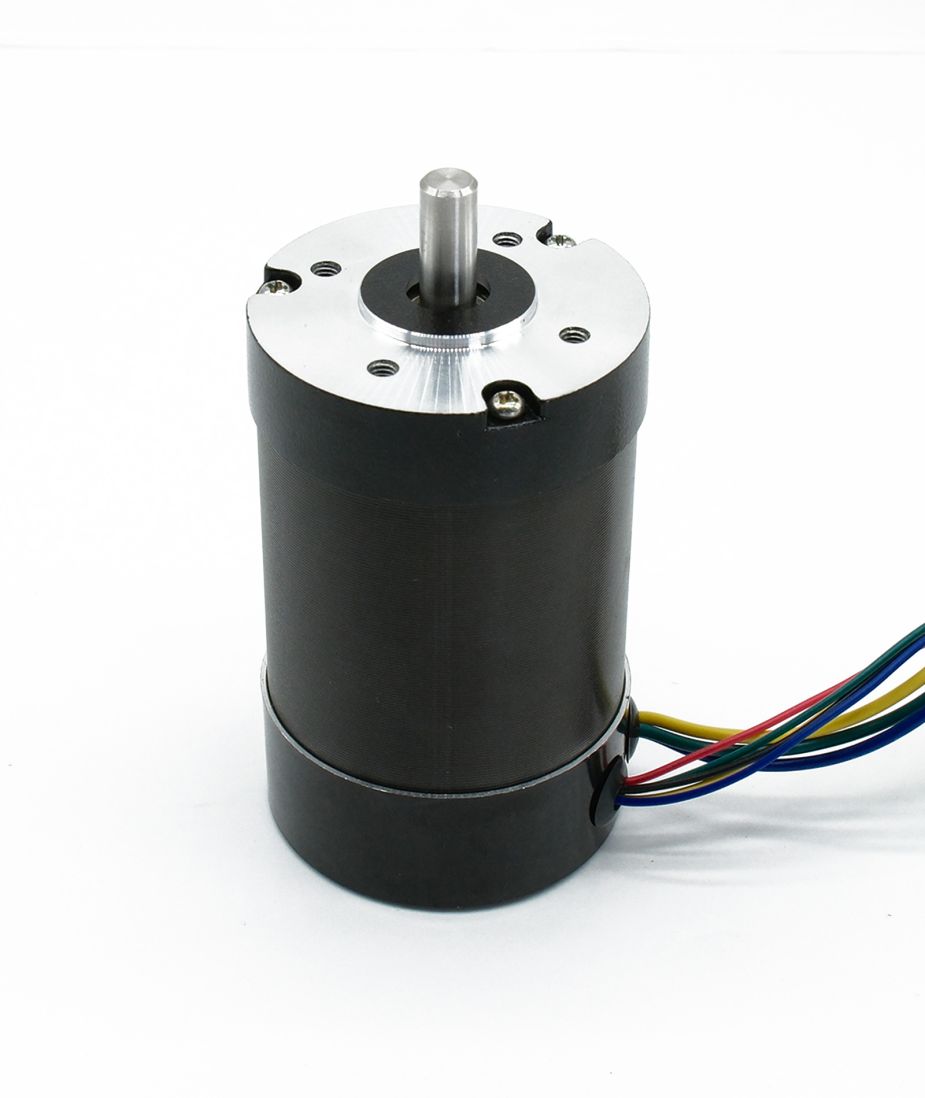

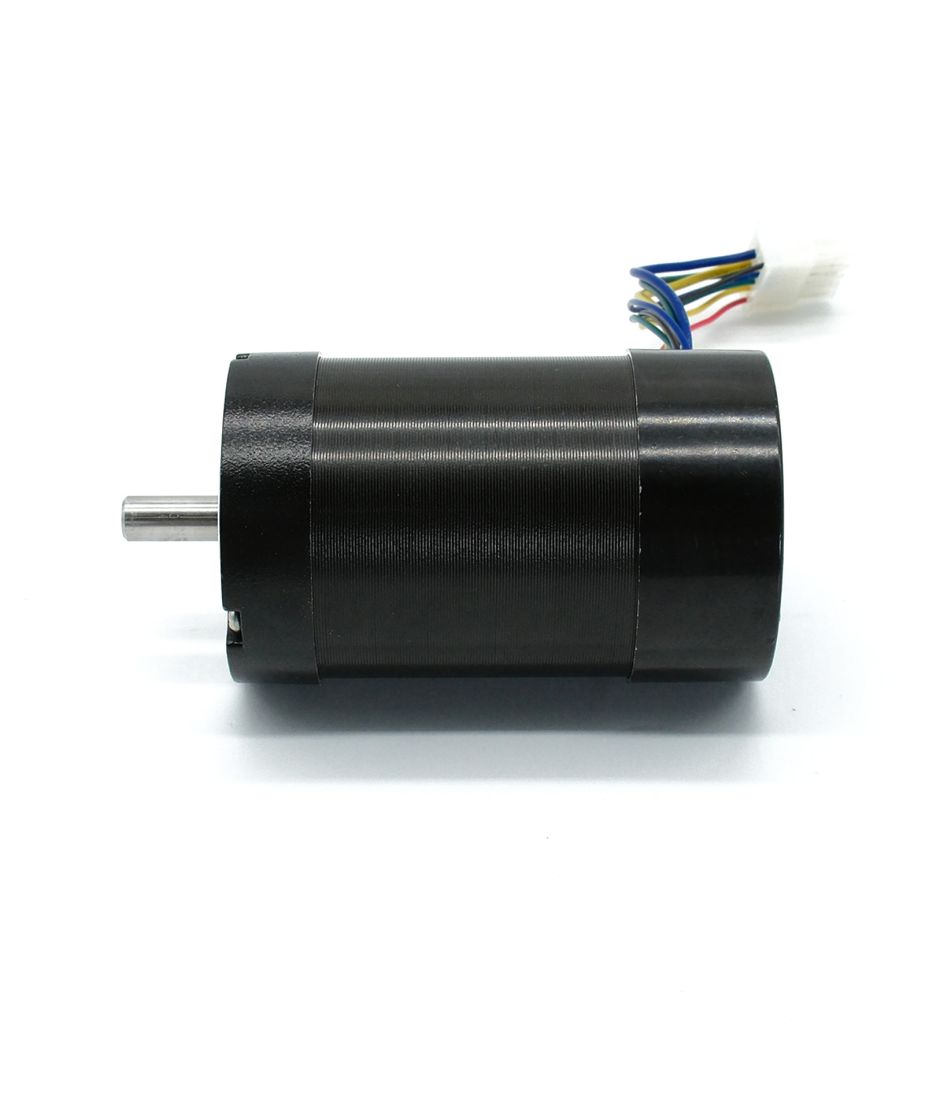

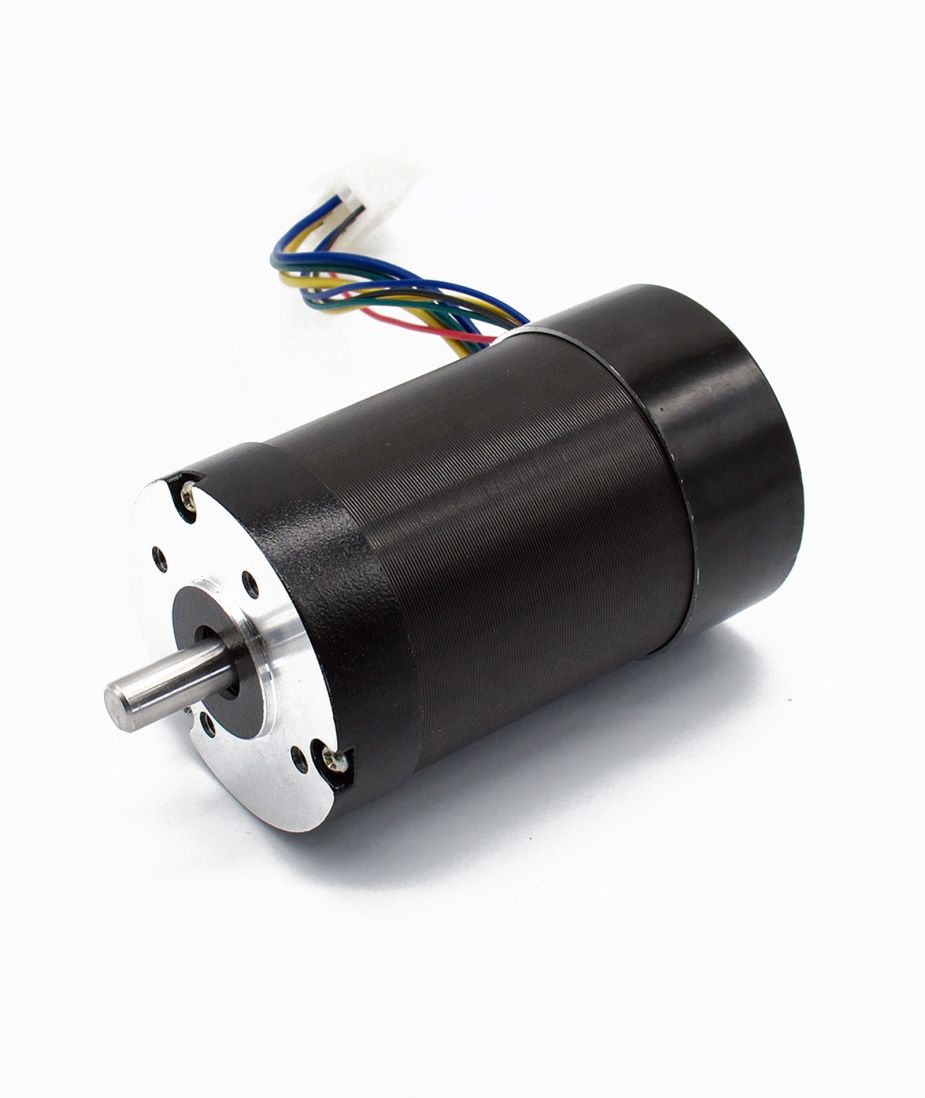

Diameter Ø57mm BLDC Brushless DC Motor
Brushless DC Motors

EC5796024

EC5796024 Brushless DC Motor Ø57mm BLDC 24V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC5796024
Nominal Voltage (V DC)
24
Motor Diameter (Ø mm)
57
Housing Length (mm)
95.5
Shaft Diameter (Ø mm)
8
No-load Speed (rpm)
5000
No-load Current (A)
0.00037
Nominal Speed (rpm)
3500
Nominal Torque (gf.cm)
2500
Nominal Current (A)
0.0035
Nominal Power (W)
85
Stall Torque (gf.cm)
8500
Stall Current (A)
17
Life (hr Typical)
5000
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing
