EC3660024

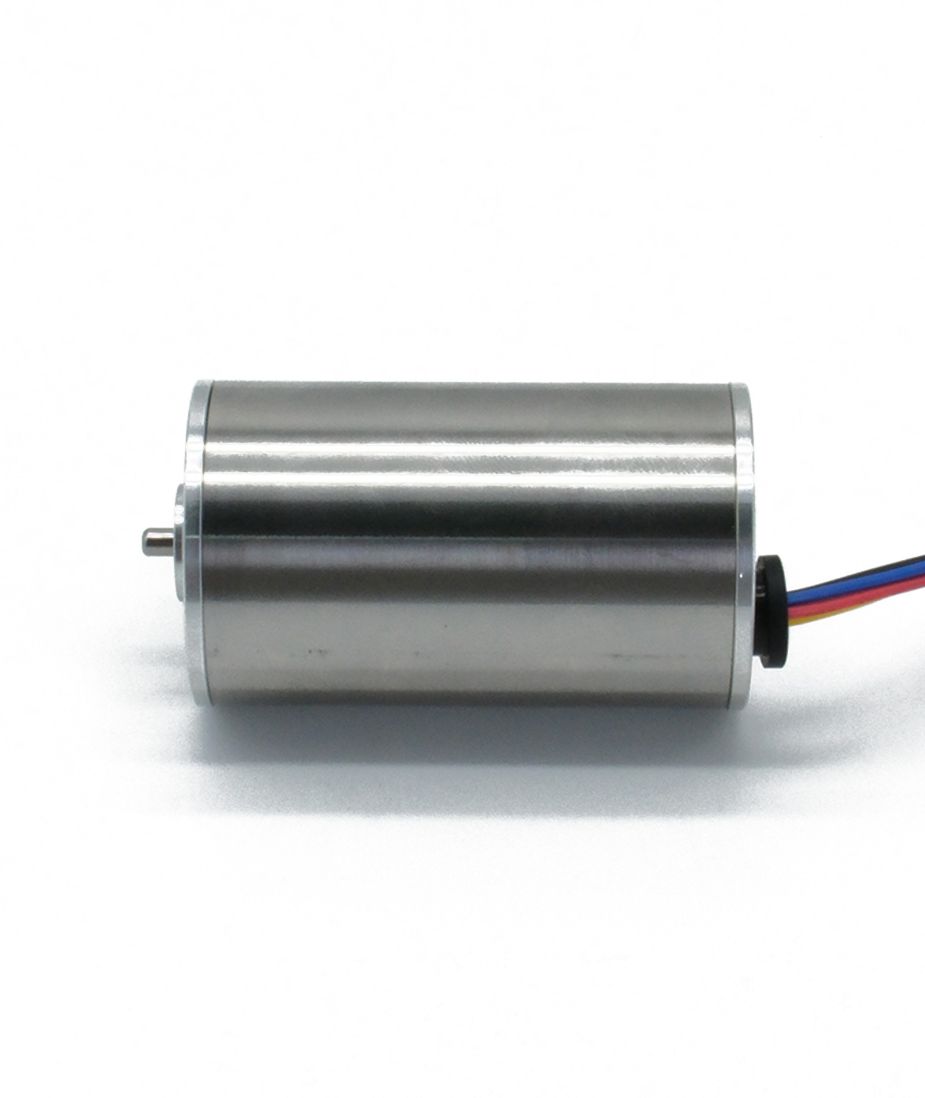

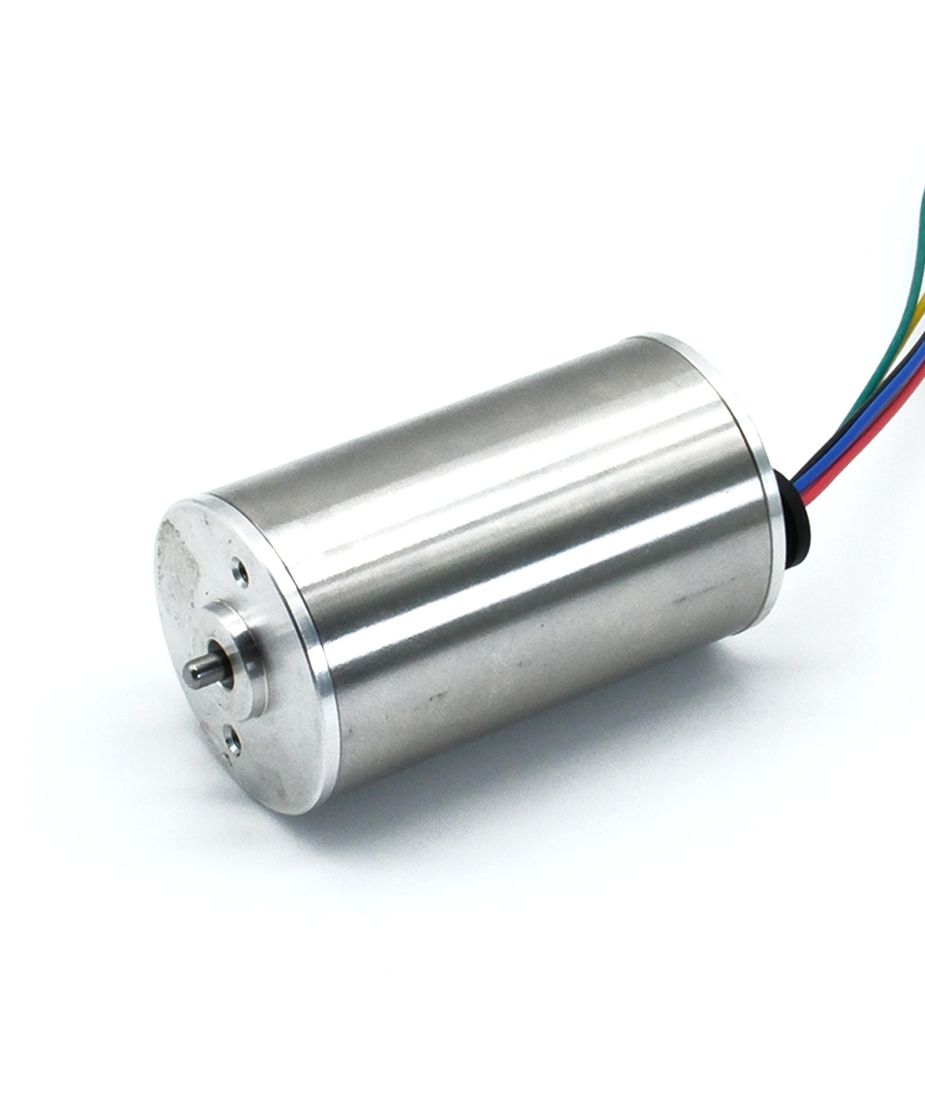

EC3660024 Brushless DC Motor Ø36mm BLDC 24V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service

Specifications

Model
EC3660024
Nominal Voltage (V DC)
24
Motor Diameter (Ø mm)
36
Housing Length (mm)
60
Shaft Diameter (Ø mm)
3.175
No-load Speed (rpm)
6000
No-load Current (A)
0.00015
Nominal Speed (rpm)
4500
Nominal Torque (gf.cm)
600
Nominal Current (A)
0.0015
Nominal Power (W)
35
Stall Torque (gf.cm)
2500
Stall Current (A)
7
Life (hr Typical)
5000
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
