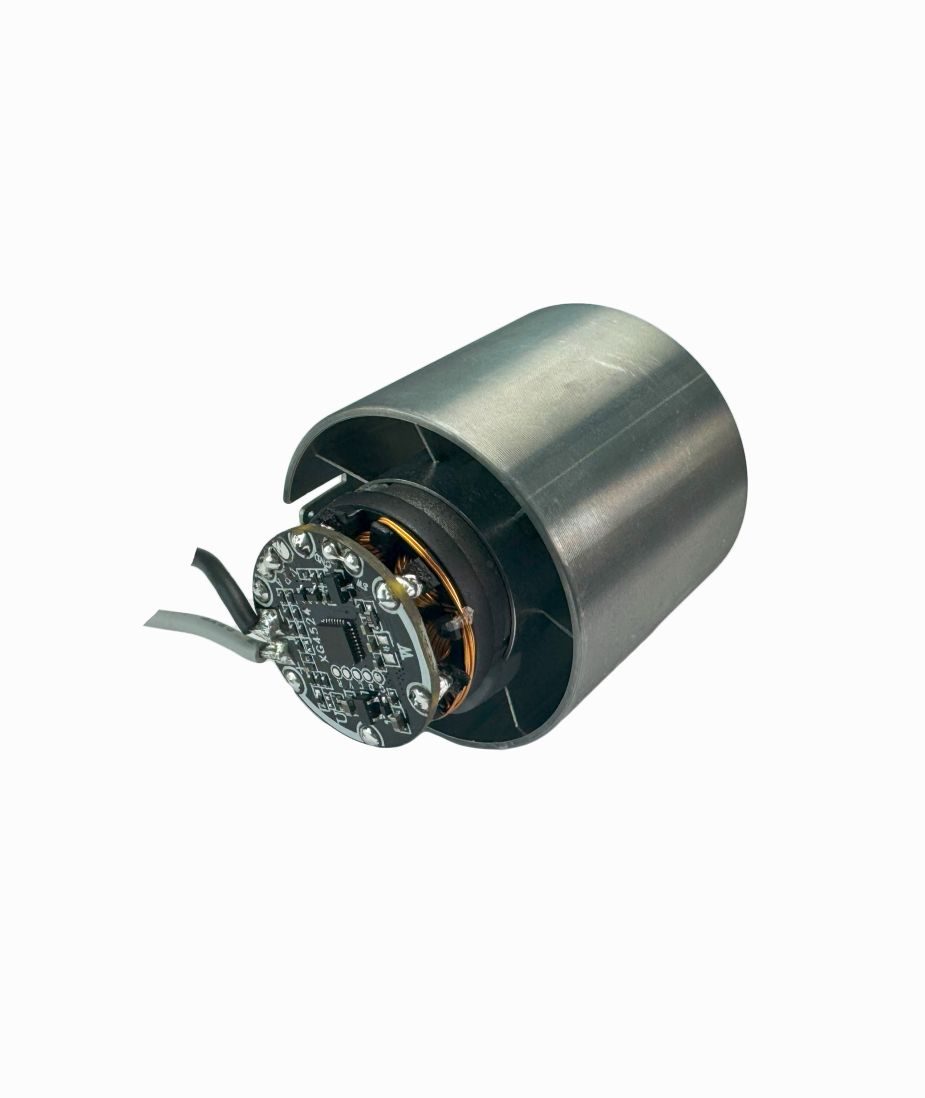

Diameter Ø40mm 100000rpm Motor
Ultra High Speed Motors/Blowers

EC402316.8

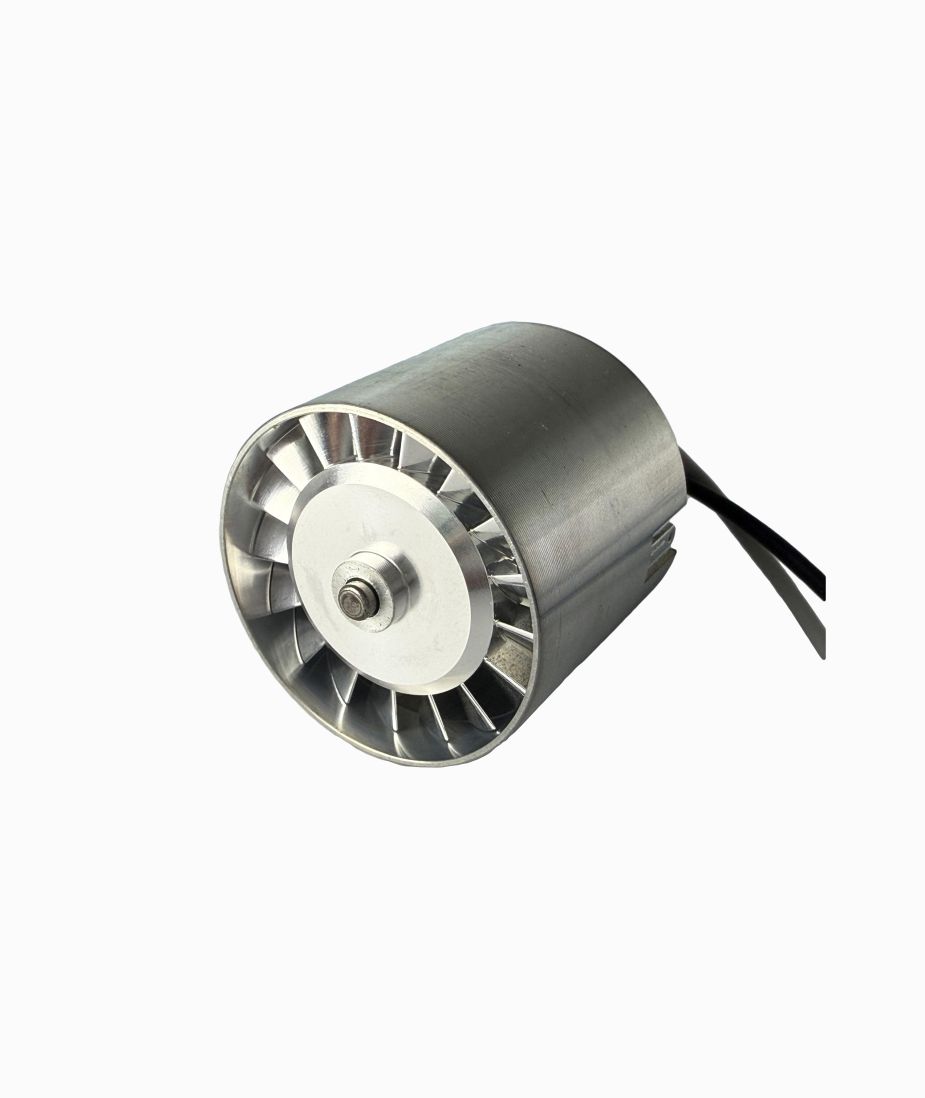

EC402316.8 Ultra High Speed Motor Blowers Ø40mm 100000rpm
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC402316.8
Nominal Voltage (V DC)
16.8
Motor Diameter (Ø mm)
40
Housing Length (mm)
57
Stator Diameter (Ø mm)
23
No-load Speed (rpm)
100000
No-load Current (A)
25
Nominal Power (W)
420
Wind Speed (≥ m/s)
27
Wind Pressure (≥ g)
450
Measured Noise (≤ dBA)
95
Insulation Class
Class F: 155°C
Life (hr Typical)
1000

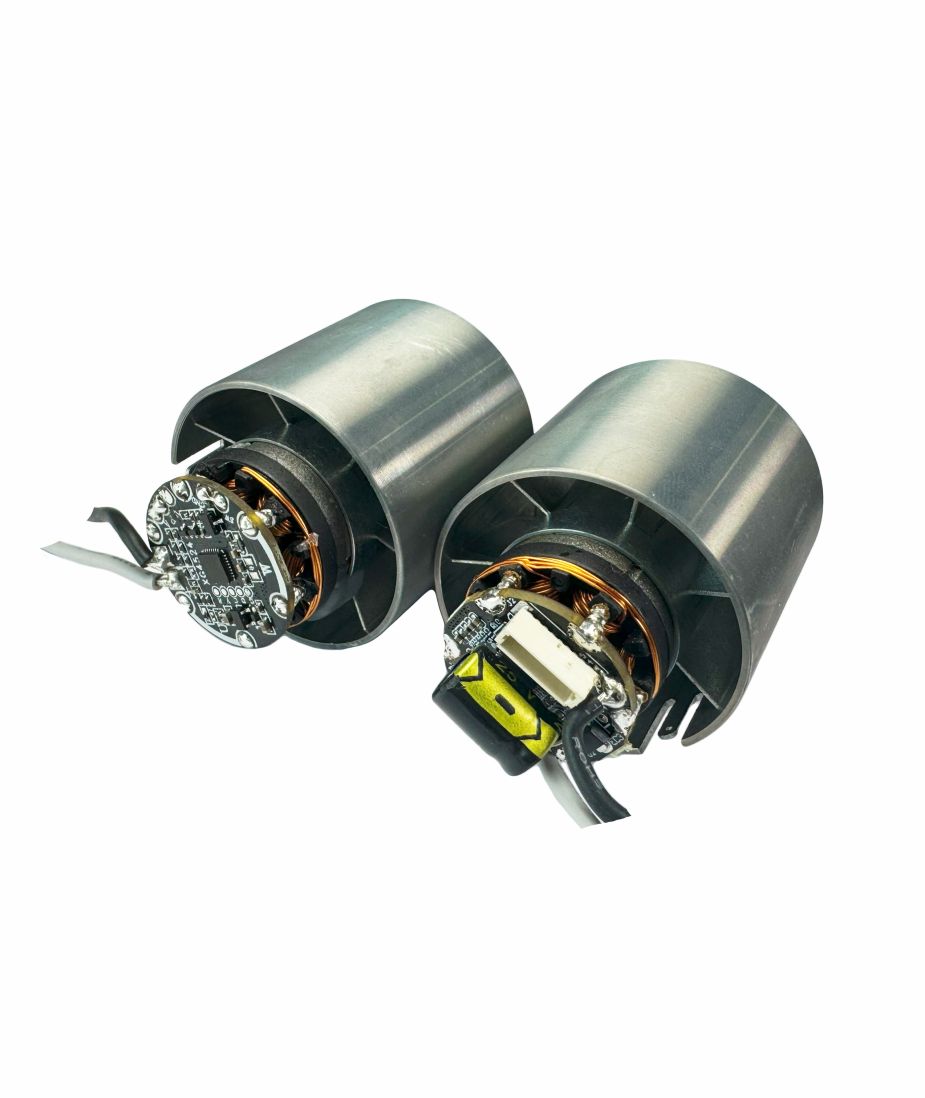

With Driver PCBA
Configurable on Request

Dimension Drawing
