Diameter Ø32.5mm 100000rpm Motor
Ultra High Speed Motors/Blowers

EC3320310

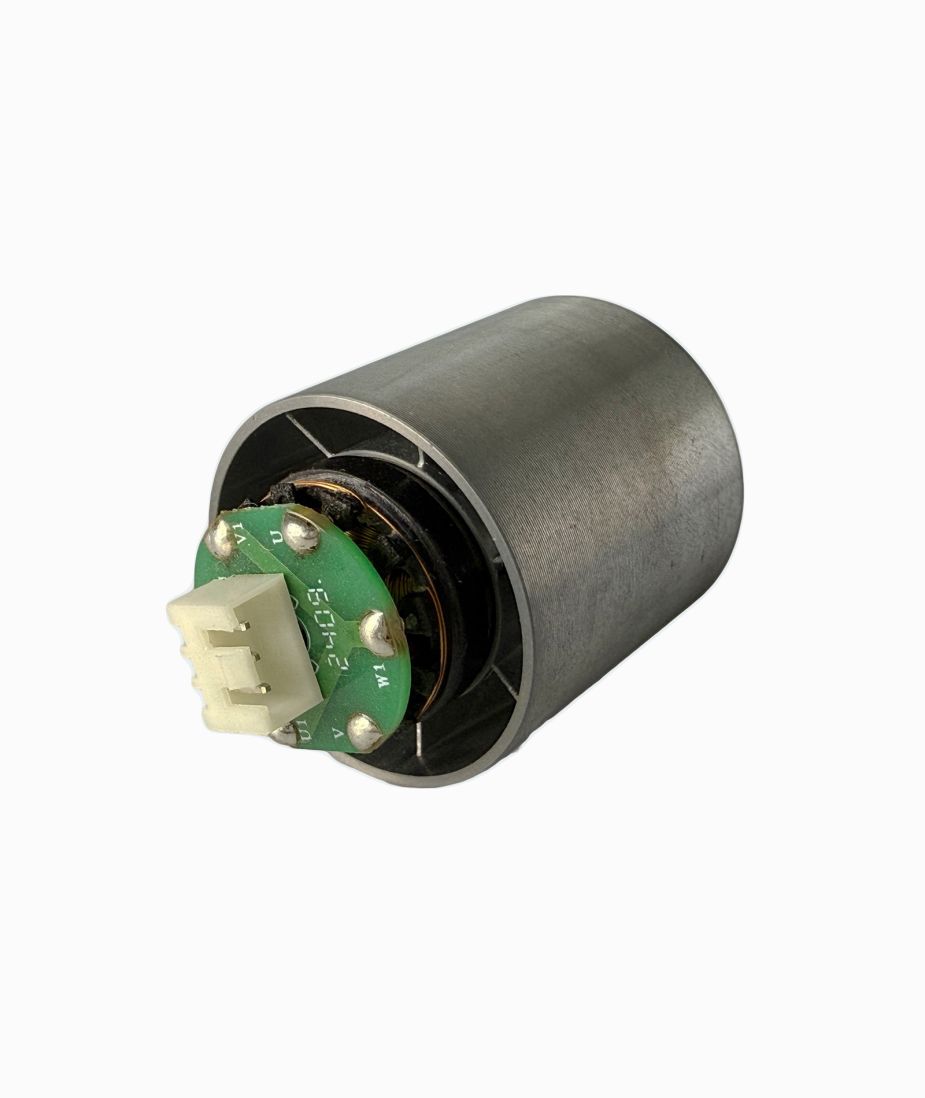

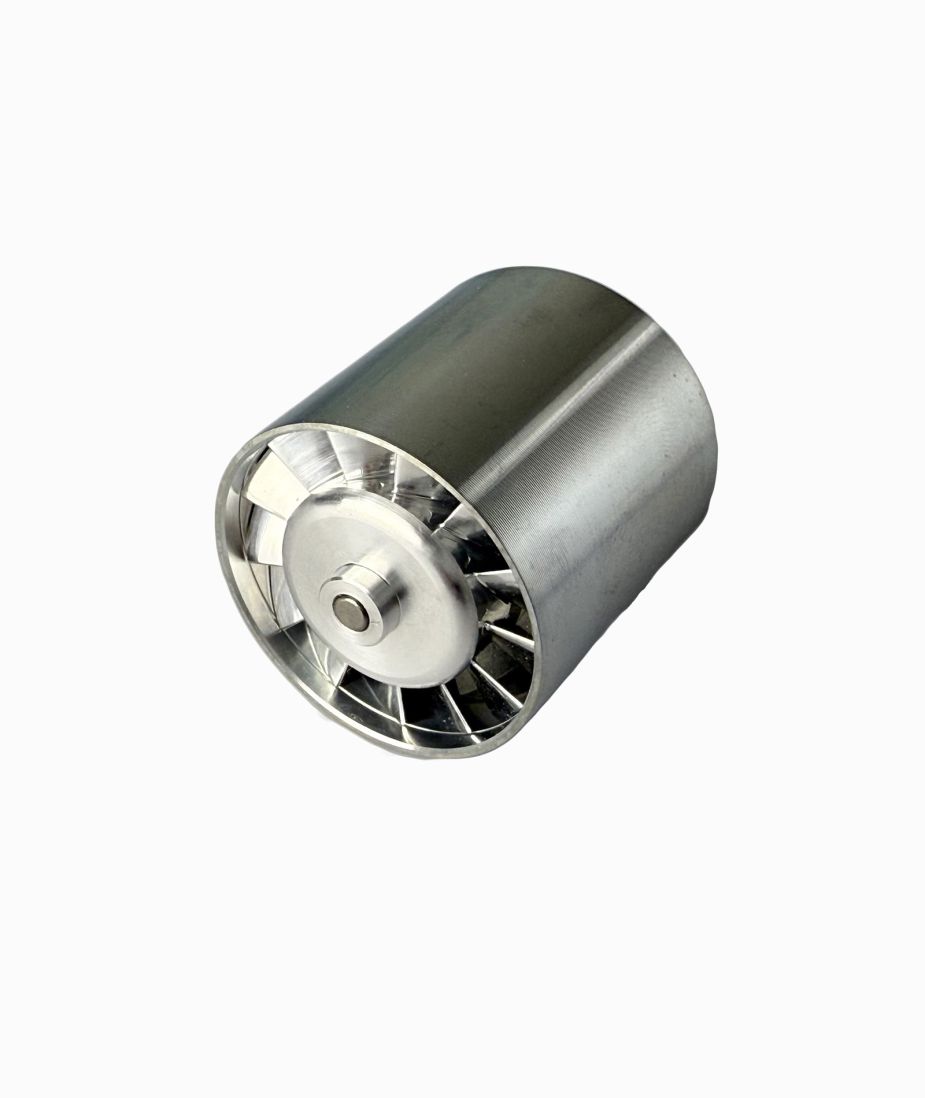

EC3320310 Ultra High Speed Motor Blowers Ø32.5mm 100000rpm
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC3320310
Nominal Voltage (V DC)
310
Motor Diameter (Ø mm)
32.5
Housing Length (mm)
33
Stator Diameter (Ø mm)
20
No-load Speed (rpm)
100000
No-load Current (A)
1.2
Nominal Power (W)
130
Wind Speed (≥ m/s)
26
Wind Pressure (≥ g)
180
Measured Noise (≤ dBA)
85
Insulation Class
Class F: 155°C
Life (hr Typical)
1000
With Driver PCBA
Configurable on Request

Dimension Drawing

Downloads
