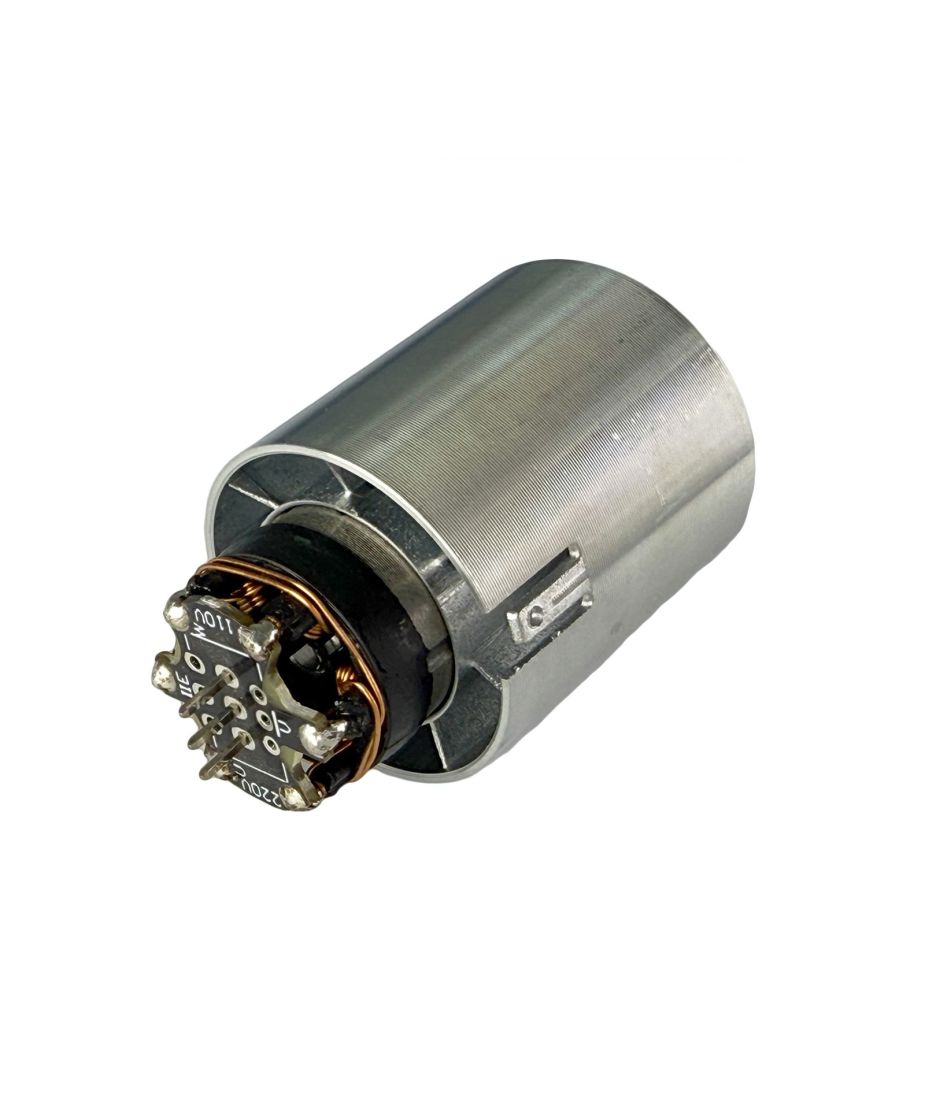

Diameter Ø28.8mm 130000rpm Motor
Ultra High Speed Motors/Blowers

EC29177.4

EC29177.4 Ultra High Speed Motor Blowers Ø28.8mm 130000rpm
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC29177.4
Nominal Voltage (V DC)
7.4
Motor Diameter (Ø mm)
28.8
Housing Length (mm)
46
Stator Diameter (Ø mm)
17
No-load Speed (rpm)
130000
No-load Current (A)
26
Nominal Power (W)
220
Wind Speed (≥ m/s)
30
Wind Pressure (≥ g)
220
Measured Noise (≤ dBA)
90
Insulation Class
Class F: 155°C
Life (hr Typical)
500
With Driver PCBA
Configurable on Request

Dimension Drawing

Downloads
