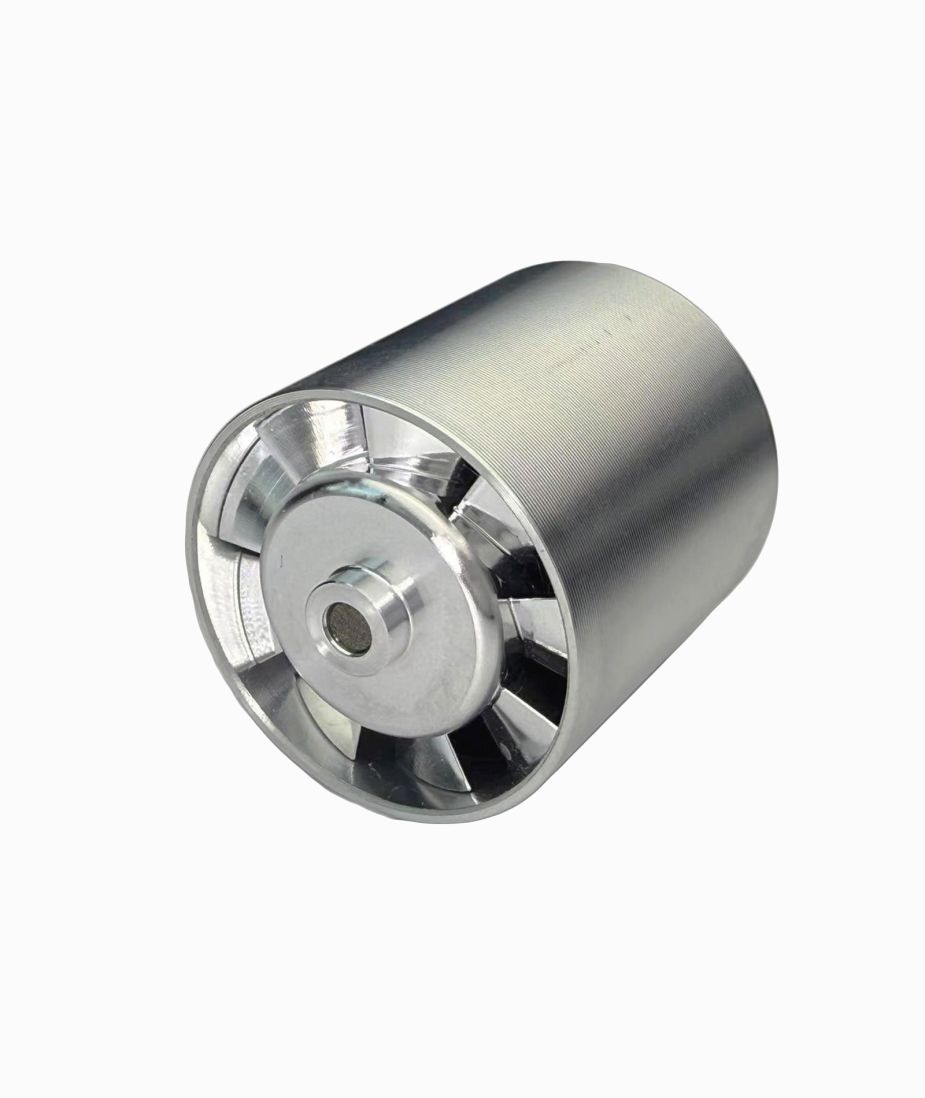

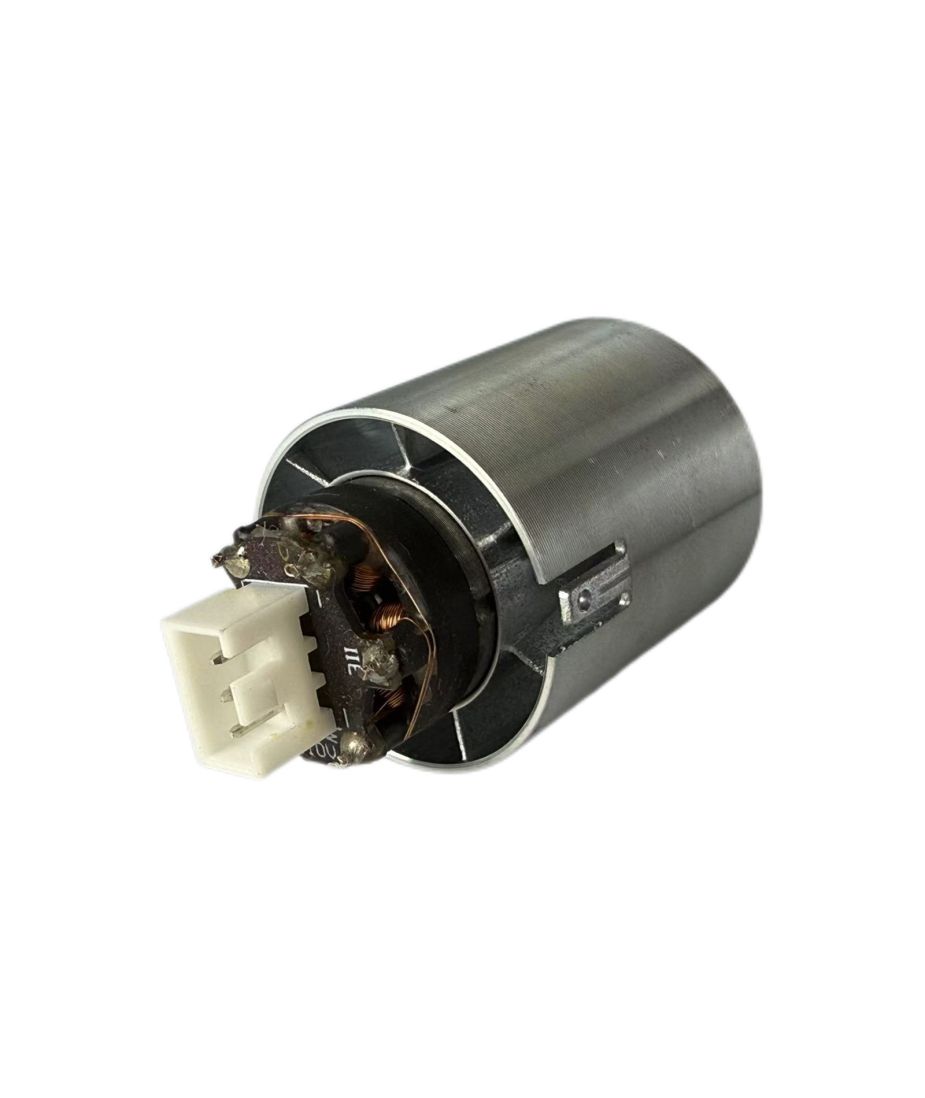

Diameter Ø27mm 50000rpm Motor
Ultra High Speed Motors/Blowers

EC27173.7

EC27173.7 Ultra High Speed Motor Blowers Ø27mm 50000rpm
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC27173.7
Nominal Voltage (V DC)
3.7
Motor Diameter (Ø mm)
27
Housing Length (mm)
42
Stator Diameter (Ø mm)
17
No-load Speed (rpm)
50000
No-load Current (A)
3.2
Nominal Power (W)
12
Wind Speed (≥ m/s)
19
Wind Pressure (≥ g)
25
Measured Noise (≤ dBA)
80
Insulation Class
Class F: 155°C
Life (hr Typical)
1000
With Driver PCBA
Configurable on Request

Dimension Drawing

Downloads
