Diameter Ø25mm 32000rpm Motor
Ultra High Speed Motors/Blowers

EC25153.7

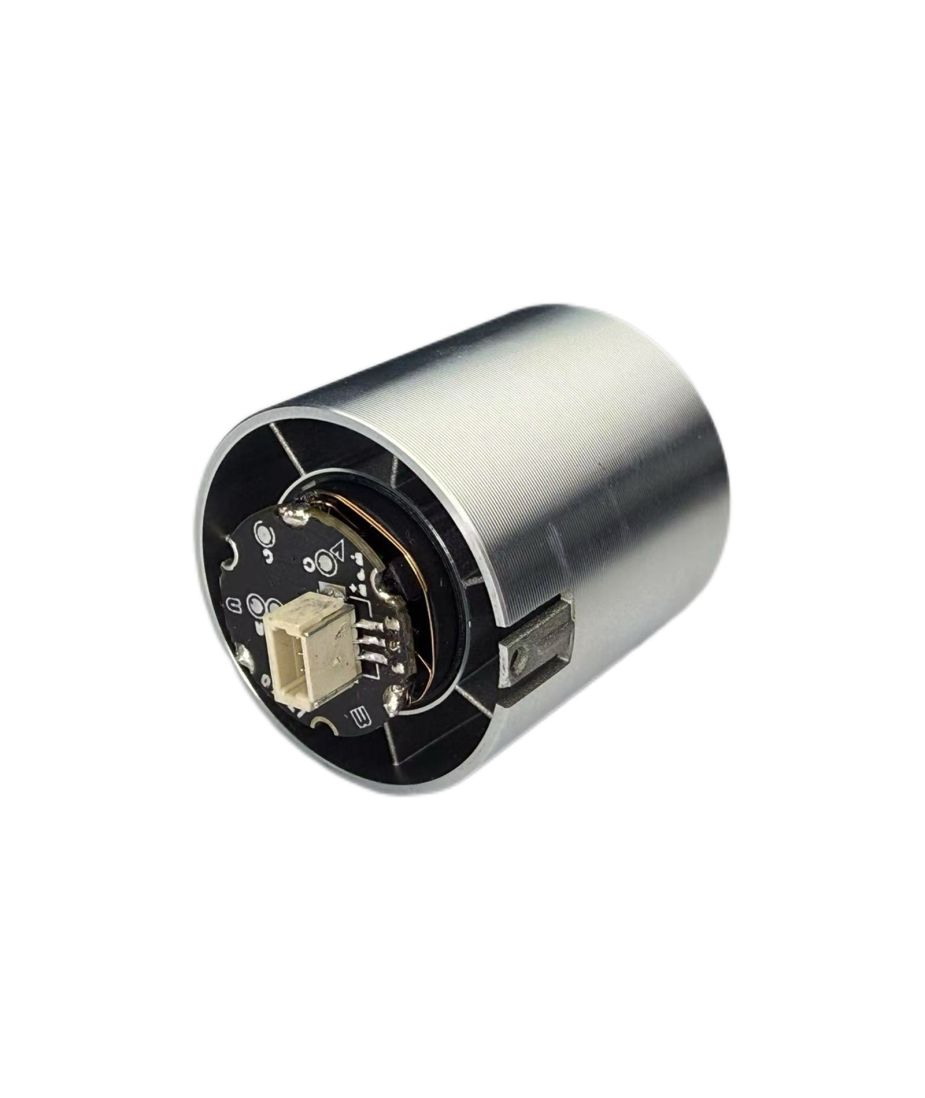

EC25153.7 Ultra High Speed Motor Blowers Ø25mm 32000rpm
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC25153.7
Nominal Voltage (V DC)
3.7
Motor Diameter (Ø mm)
25
Housing Length (mm)
30
Stator Diameter (Ø mm)
15
No-load Speed (rpm)
32000
No-load Current (A)
2.6
Nominal Power (W)
10
Wind Speed (≥ m/s)
10
Wind Pressure (≥ g)
18
Measured Noise (≤ dBA)
75
Insulation Class
Class F: 155°C
Life (hr Typical)
1000
With Driver PCBA
Configurable on Request

Dimension Drawing

Downloads
