Worm Gearbox DC Geared Motor
Gearmotors and Gearboxes

WG4632-DC2431006

Worm Gearbox DC Geared Motor Size 46×32mm Reduction drive
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
WG4632-DC2431006
Gearbox Model
WG4632
Gearbox Type
Worm Gearboxes
Motor in Use
DC2431006
>> Motor details
Type of Motor
Brushed DC Motors
Gearbox Size (mm)
46×32
Gearhead Data
Reduction RatioNumber of
Gear Stages		Gearbox Housing
Length (mm)		No-load Speed
(rpm)		Nominal Speed
(rpm)		Nominal Torque
(gf.cm)
146
3
46
38
32
2
188
3
46
30
25
2.5
300
3
46
19
16
4
438
4
46
12
10
5
563
4
46
10
8
7
700
4
46
8
6
8
900
4
46
6
5
8
1020
5
46
5
4
8
1313
5
46
4
3
8
1688
5
46
3
3
8

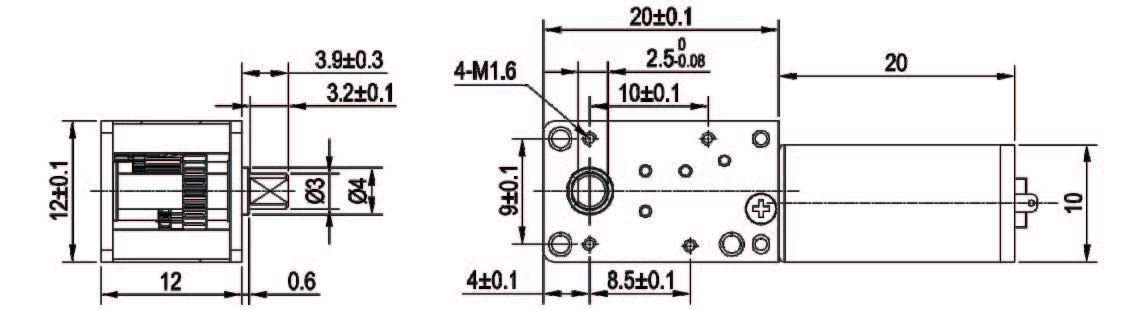

Dimension Drawing

dimension drawing
