Planetary Gearbo BLDC Geared Motor
Gearmotors and Gearboxes

PG12-ECL1223024

Planetary Gearbox BLDC Geared Motor Ø12mm Reduction drive
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
PG12-ECL1223024
Gearbox Model
PG12
Gearbox Type
Planetary Gearboxes
Motor in Use
ECL1223024
Type of Motor
Brushless DC Motors
Gearbox Diameter (Ø mm)
12
Gearhead Data
Reduction RatioNumber of
Gear Stages		Gearbox Housing
Length (mm)		No-load Speed
(rpm)		Nominal Speed
(rpm)		Nominal Torque
(gf.cm)
4
1
14.3
6500
4650
0.05
5
1
14.3
5200
3720
0.06
16
2
17.35
1625
1162
0.2
20
2
17.35
1300
930
0.25
25
2
17.35
1040
744
0.32
64
3
20.4
406
290
0.71
80
3
20.4
325
232
0.89
100
3
20.4
260
186
1.12
125
3
20.4
208
148
1.2
256
4
23.45
101
72
1.8
320
4
23.45
81
58
1.8
400
4
23.45
65
46
1.8
500
4
23.45
52
37
1.8
500
4
23.45
52
37
1.4
625
4
23.45
41
29
1.4

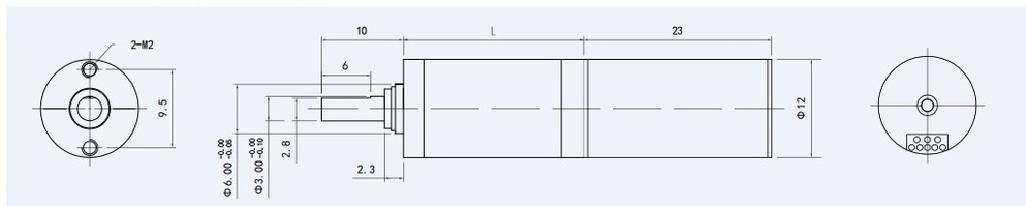

Dimension Drawing

dimension drawing
