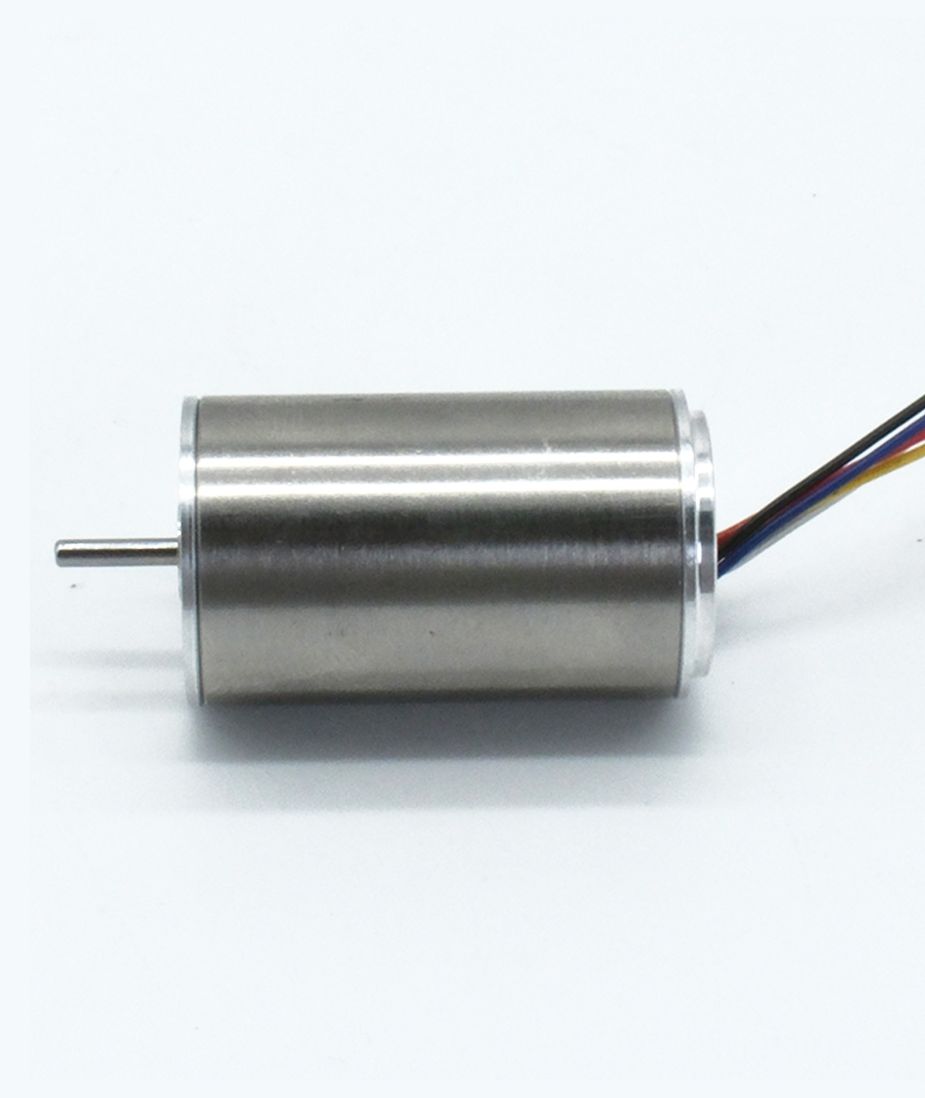

Diameter Ø22mm BLDC Coreless Brushless DC Motor
Brushless DC Motors

ECL2230012

ECL2230012 Coreless Motor Ø22mm BLDC 12V Ironless Winding
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
ECL2230012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
22
Housing Length (mm)
30
Shaft Diameter (Ø mm)
2
No-load Speed (rpm)
14500
No-load Current (A)
0.00013
Nominal Speed (rpm)
14500
Nominal Torque (gf.cm)
80
Nominal Current (A)
0.00125
Nominal Power (W)
15
Stall Torque (gf.cm)
843
Stall Current (A)
9
Life (hr Typical)
5000
Ironless Winding
Yes
Internal Rotor
Yes

Dimension Drawing
