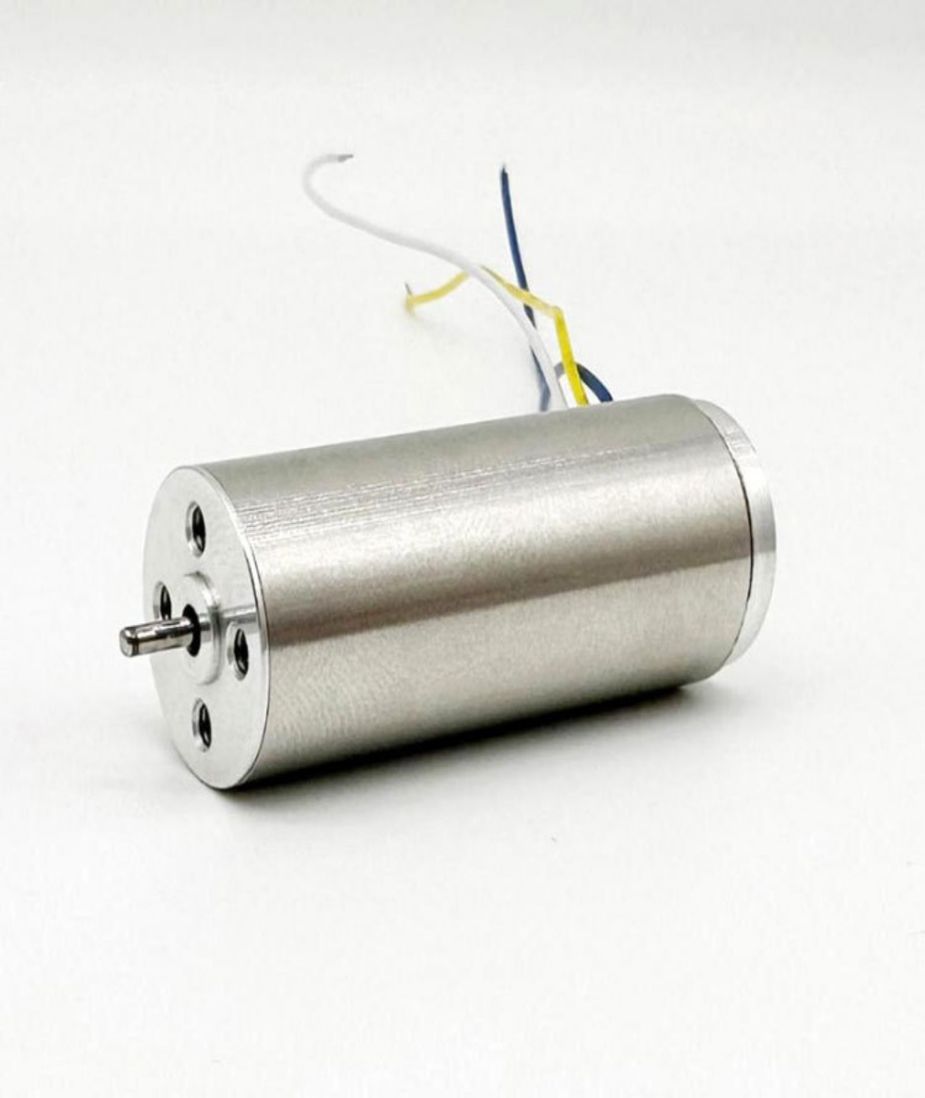

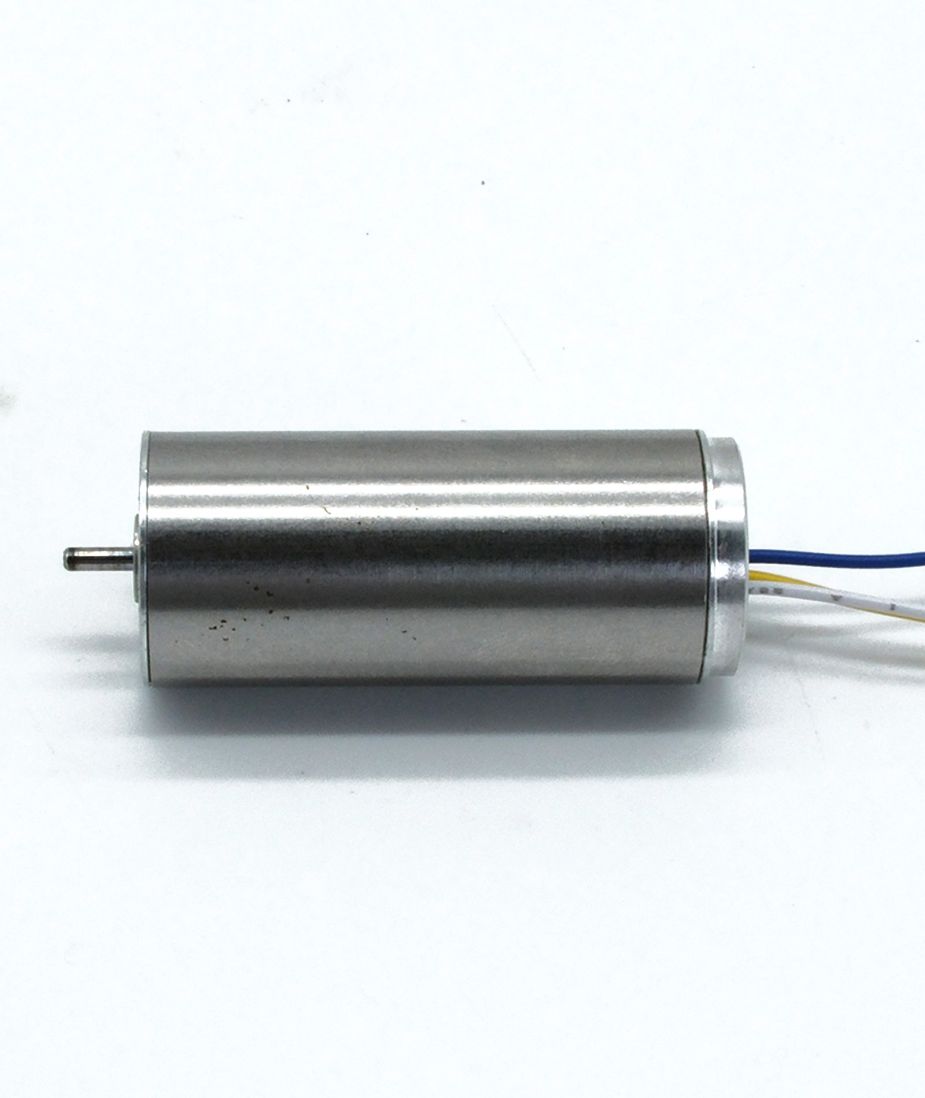

Diameter Ø16mm BLDC Coreless Brushless DC Motor
Brushless DC Motors

ECL1630024

ECL1630024 Coreless Motor Ø16mm BLDC 24V Ironless Winding
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
ECL1630024
Nominal Voltage (V DC)
24
Motor Diameter (Ø mm)
16
Housing Length (mm)
30
Shaft Diameter (Ø mm)
1.5
No-load Speed (rpm)
15000
No-load Current (A)
0.00009
Nominal Speed (rpm)
13000
Nominal Torque (gf.cm)
77
Nominal Current (A)
0.00059
Nominal Power (W)
15
Stall Torque (gf.cm)
590
Stall Current (A)
4
Life (hr Typical)
5000
Ironless Winding
Yes
Internal Rotor
Yes

Dimension Drawing
