Diameter Ø12mm BLDC Coreless Brushless DC Motor
Brushless DC Motors

ECL1233012

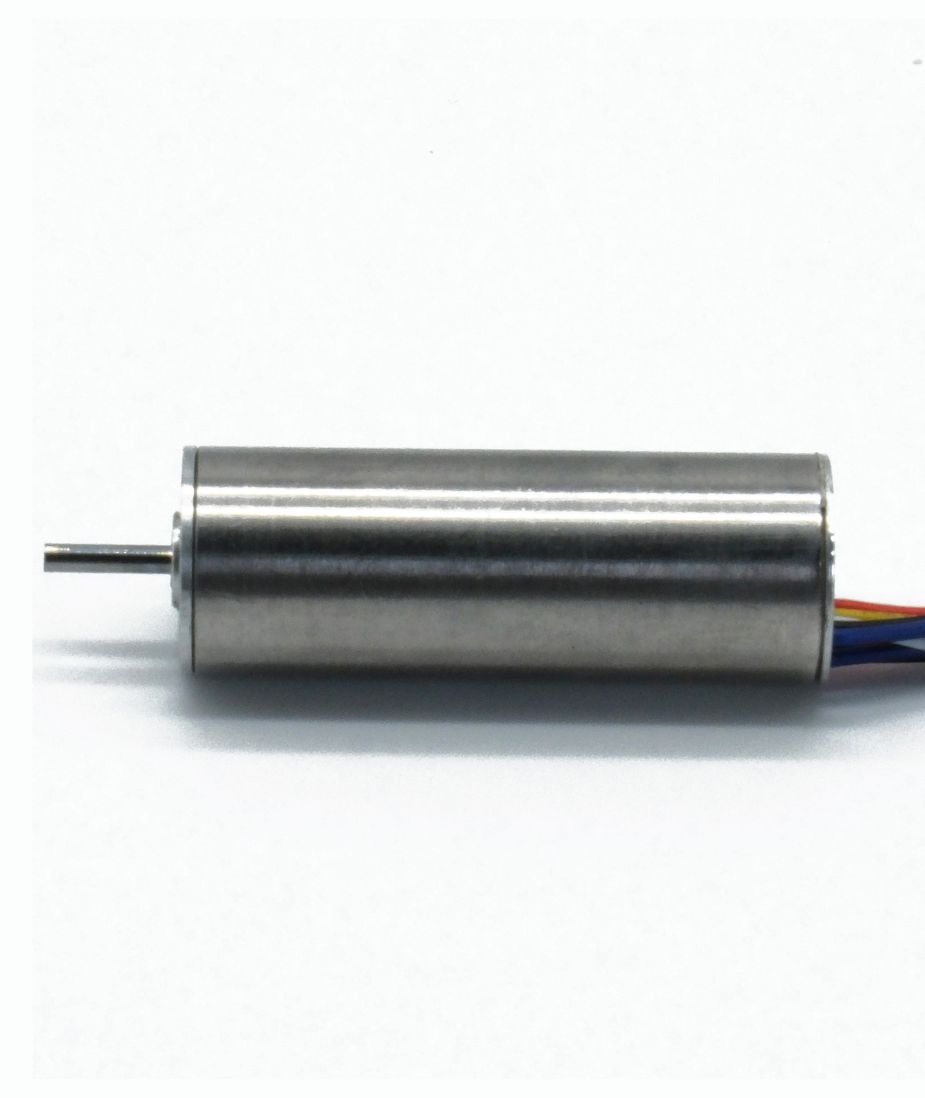

ECL1233012 Coreless Motor Ø12mm BLDC 12V Ironless Winding
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
ECL1233012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
12
Housing Length (mm)
33
Shaft Diameter (Ø mm)
1.5
No-load Speed (rpm)
18500
No-load Current (A)
0.00012
Nominal Speed (rpm)
15000
Nominal Torque (gf.cm)
25
Nominal Current (A)
0.00053
Nominal Power (W)
7
Stall Torque (gf.cm)
128
Stall Current (A)
2.3
Life (hr Typical)
5000
Ironless Winding
Yes
Internal Rotor
Yes

Dimension Drawing

Downloads
