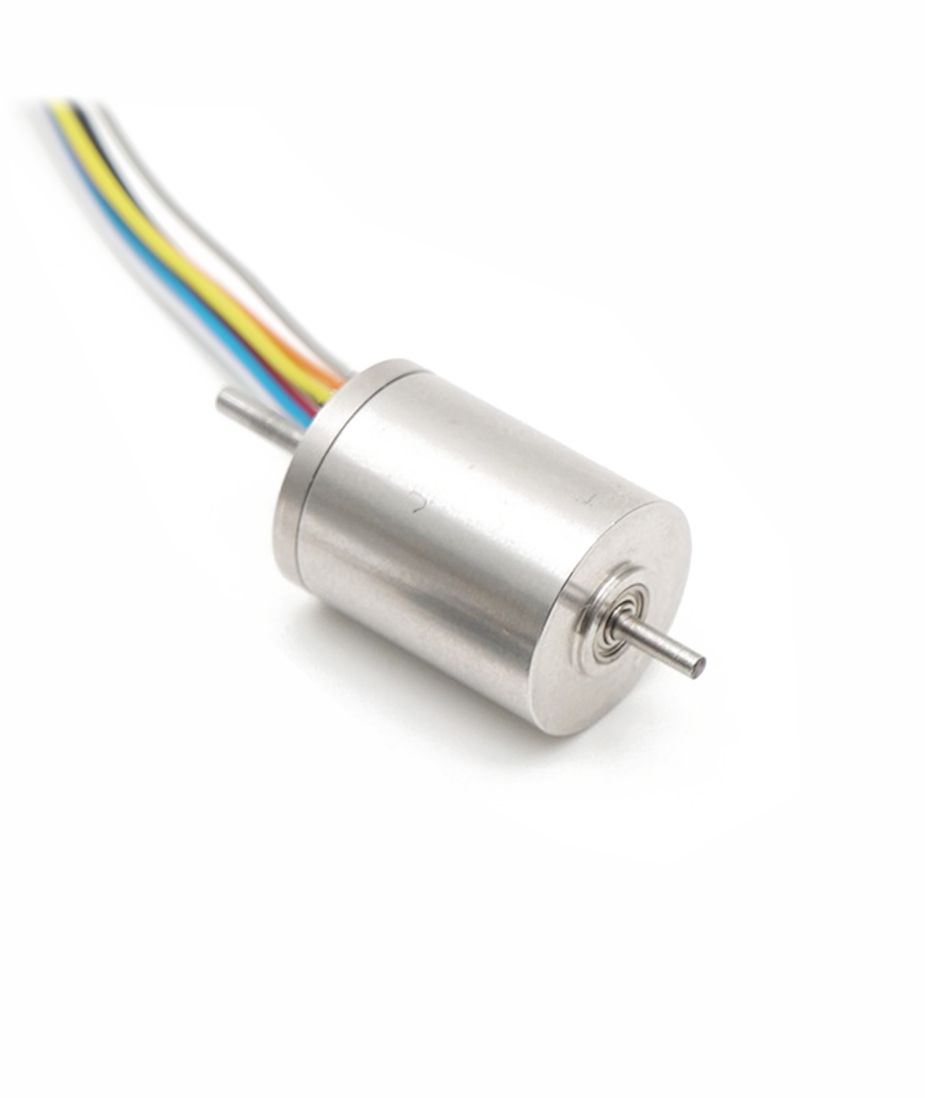

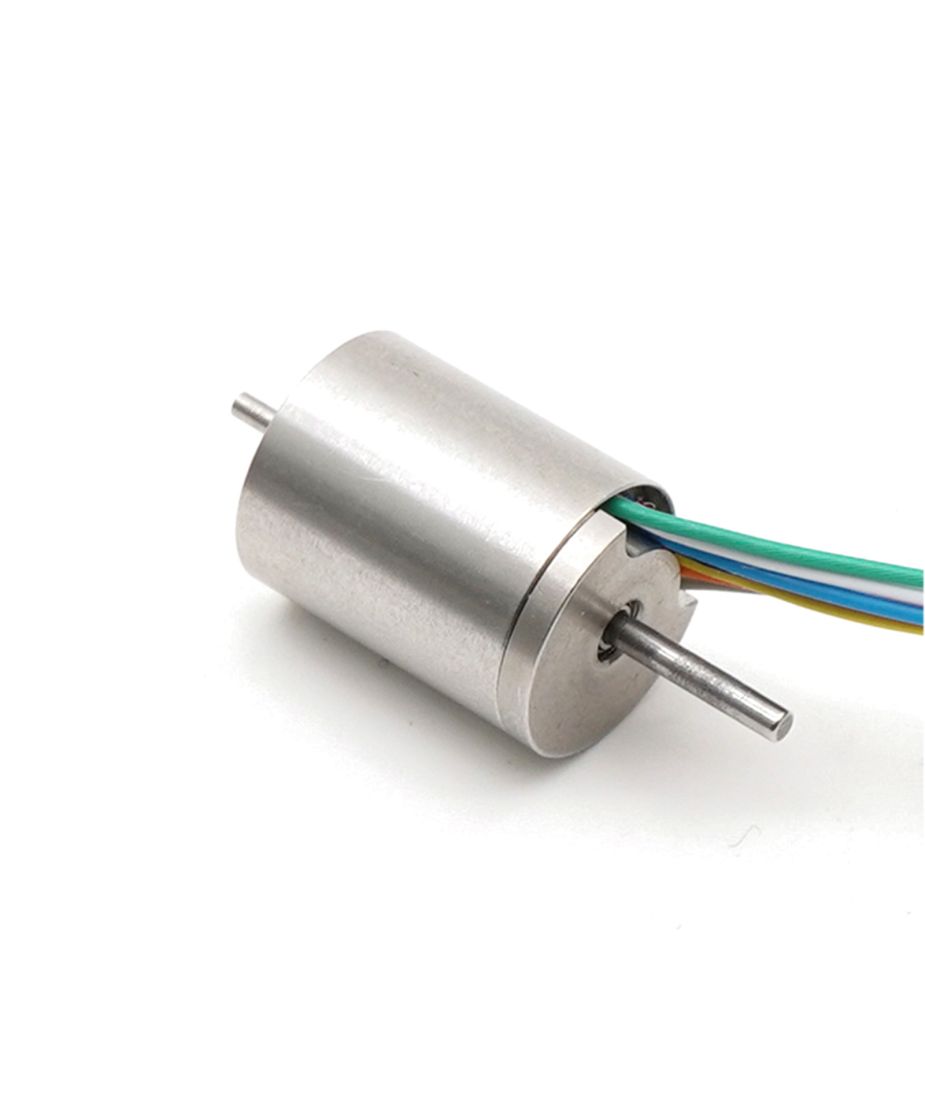

Diameter Ø12mm BLDC Coreless Brushless DC Motor
Brushless DC Motors

ECL1215012

ECL1215012 空心杯无刷直流电机 Ø12mm BLDC 12V 电子换向马达
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
ECL1215012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
12
Housing Length (mm)
15
Shaft Diameter (Ø mm)
1.5
No-load Speed (rpm)
26075
No-load Current (A)
0.084
Nominal Speed (rpm)
22164
Nominal Torque (gf.cm)
10.3
Nominal Current (A)
0.3
Nominal Power (W)
2.4
Stall Torque (gf.cm)
68.8
Stall Current (A)
1.7
Life (hr Typical)
10000
Weight (g)
35
Ironless Winding
Yes
Internal Rotor
Yes

Dimension Drawing

Downloads
