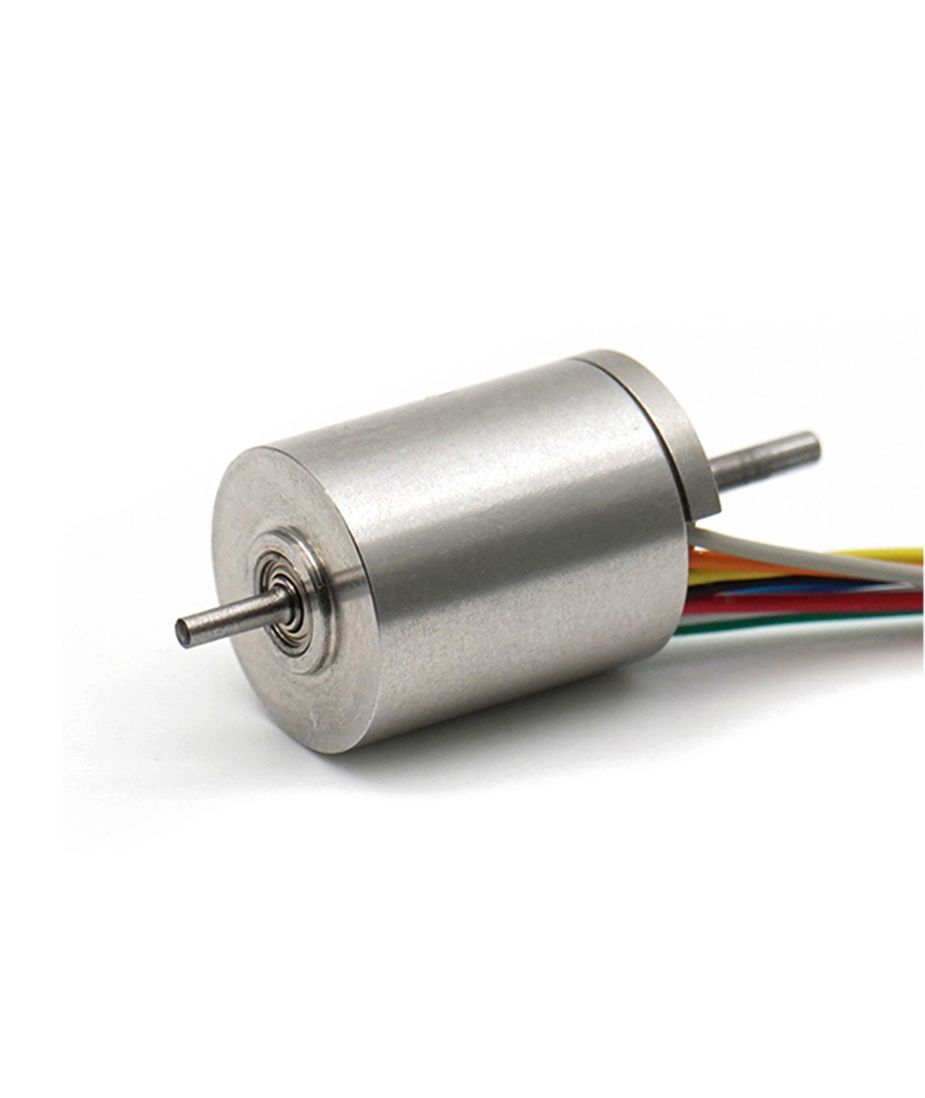

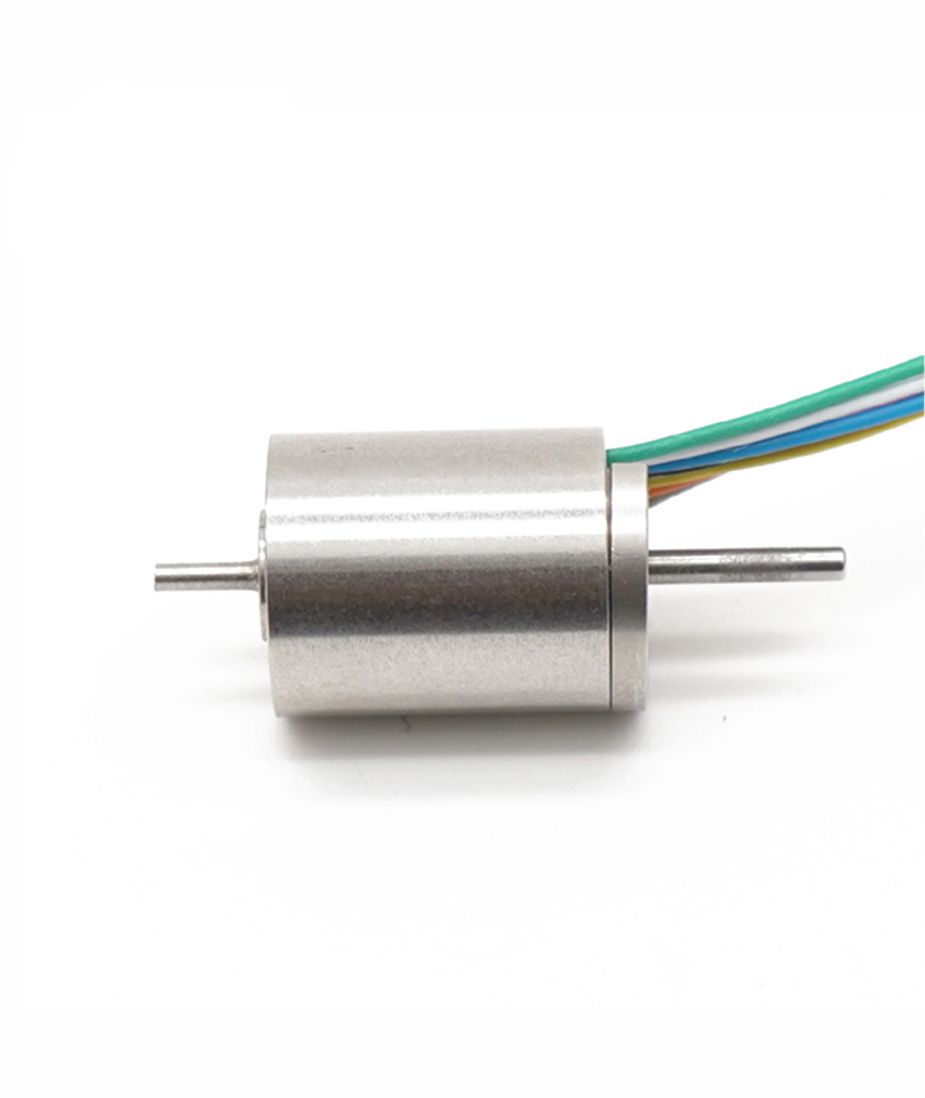

Diameter Ø12mm BLDC Coreless Brushless DC Motor
Brushless DC Motors

ECL1215006

ECL1215006 Coreless Motor Ø12mm BLDC 6V Ironless Winding
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
ECL1215006
Nominal Voltage (V DC)
6
Motor Diameter (Ø mm)
12
Housing Length (mm)
15
Shaft Diameter (Ø mm)
1.2
No-load Speed (rpm)
18000
No-load Current (A)
0.102
Nominal Speed (rpm)
15300
Nominal Torque (gf.cm)
8.8
Nominal Current (A)
0.4
Nominal Power (W)
1.4
Stall Torque (gf.cm)
58.5
Stall Current (A)
2
Life (hr Typical)
10000
Weight (g)
35
Ironless Winding
Yes
Internal Rotor
Yes

Dimension Drawing

Downloads
