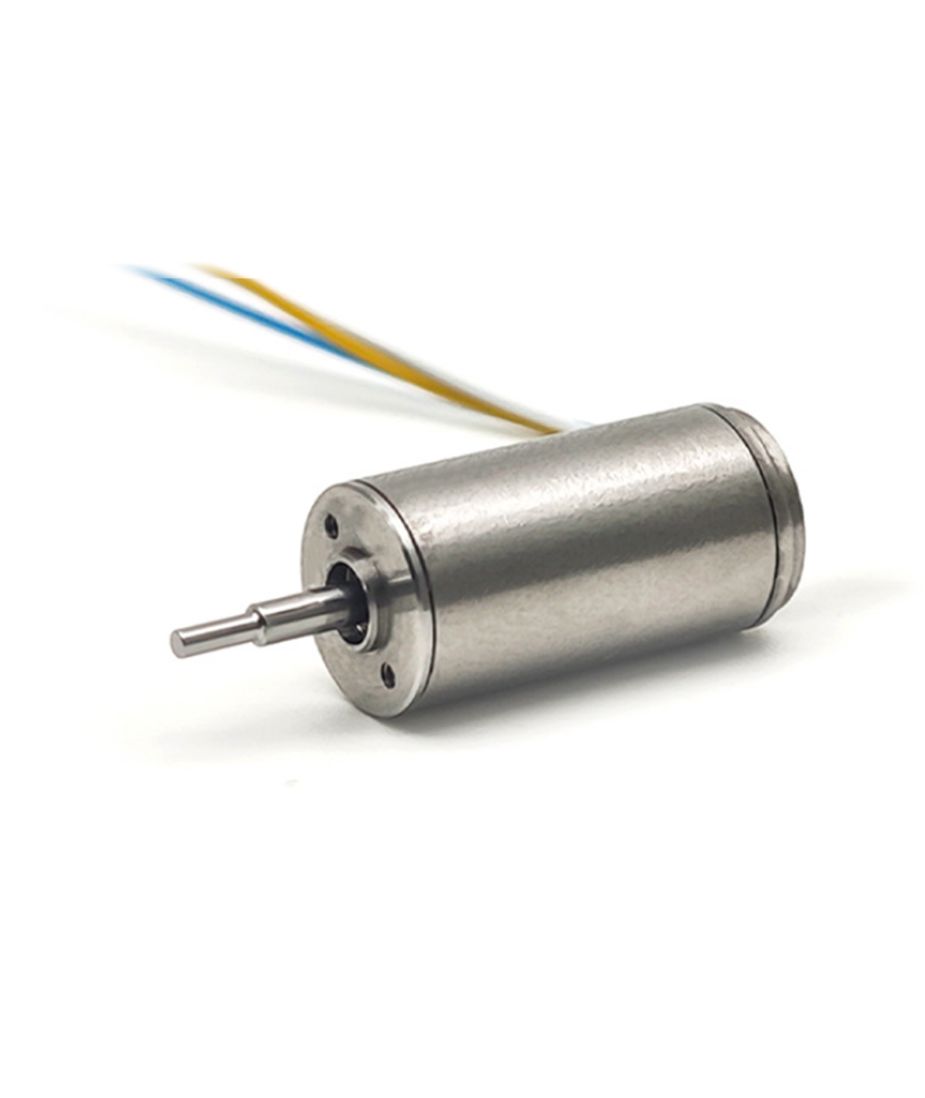

Diameter Ø8mm BLDC Coreless Brushless DC Motor
Brushless DC Motors

ECL0815006

ECL0815006 Coreless Motor Ø8mm BLDC 6V Ironless Winding
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
ECL0815006
Nominal Voltage (V DC)
6
Motor Diameter (Ø mm)
8
Housing Length (mm)
15.5
Shaft Diameter (Ø mm)
1
No-load Speed (rpm)
40243
No-load Current (A)
0.09
Nominal Speed (rpm)
28400
Nominal Torque (gf.cm)
2
Nominal Current (A)
0.270
Nominal Power (W)
0.6
Stall Torque (gf.cm)
6
Stall Current (A)
0.65
Weight (g)
4.5
Ironless Winding
Yes
Internal Rotor
Yes

Dimension Drawing

Downloads
