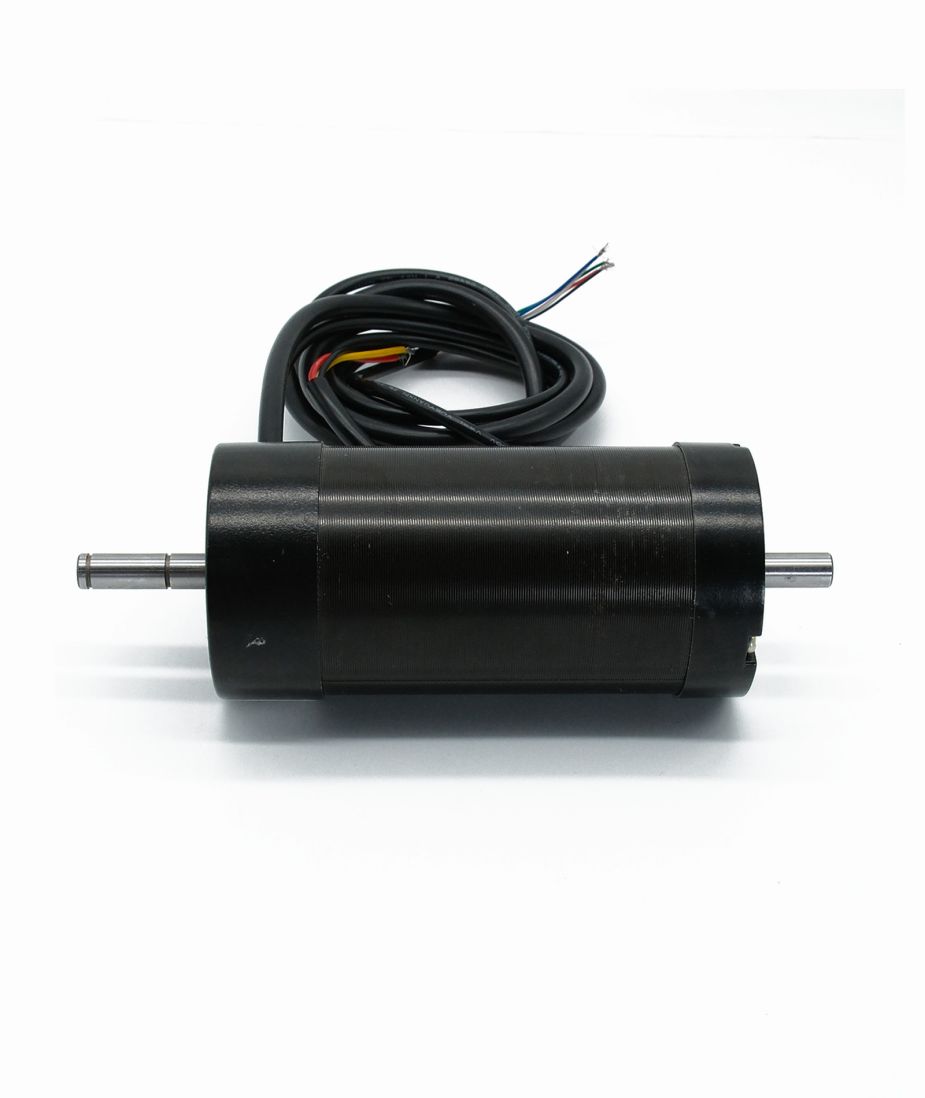

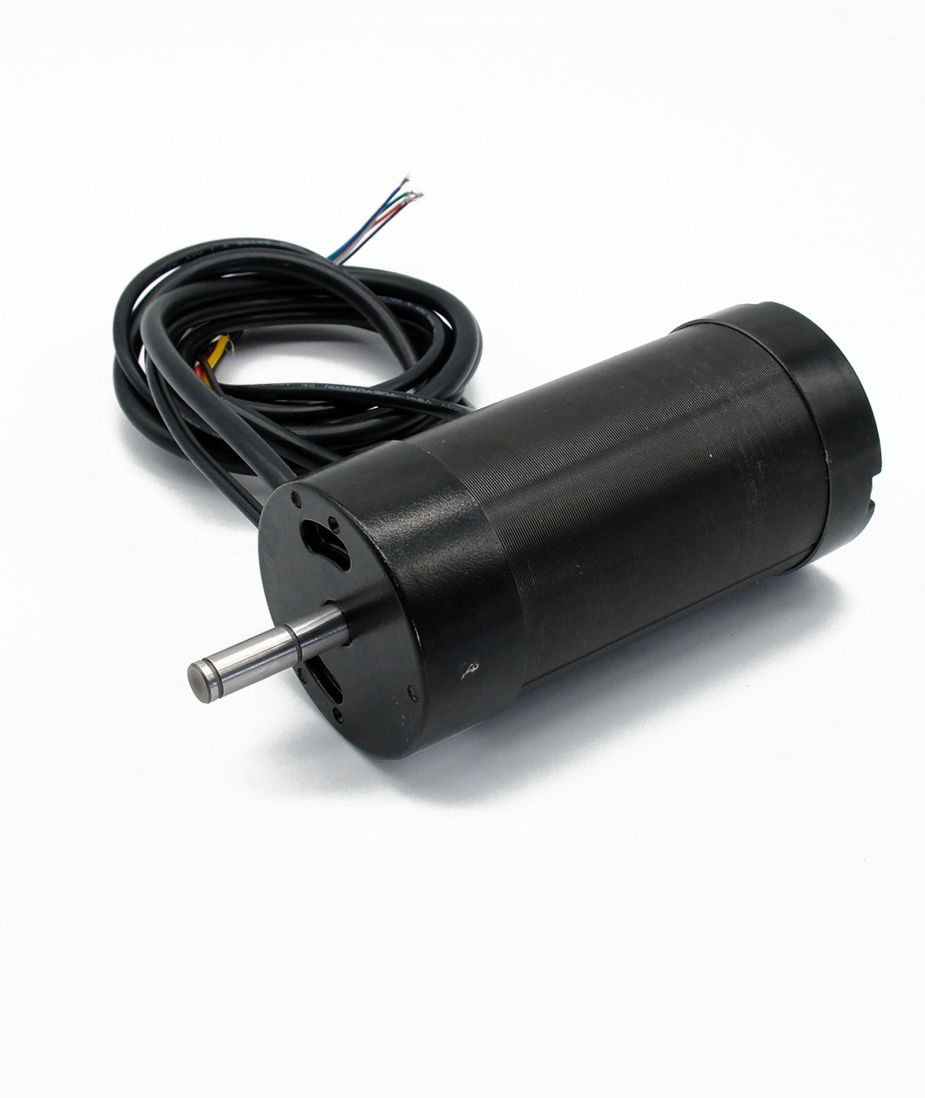

Diameter Ø57mm BLDC Brushless DC Motor
Brushless DC Motors

EC57115012

EC57115012 Brushless DC Motor Ø57mm BLDC 12V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC57115012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
57
Housing Length (mm)
115
Shaft Diameter (Ø mm)
8
No-load Speed (rpm)
3100
No-load Current (A)
0.00047
Nominal Speed (rpm)
2250
Nominal Torque (gf.cm)
1500
Nominal Current (A)
0.0035
Nominal Power (W)
42
Stall Torque (gf.cm)
11000
Stall Current (A)
30
Life (hr Typical)
5000
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
