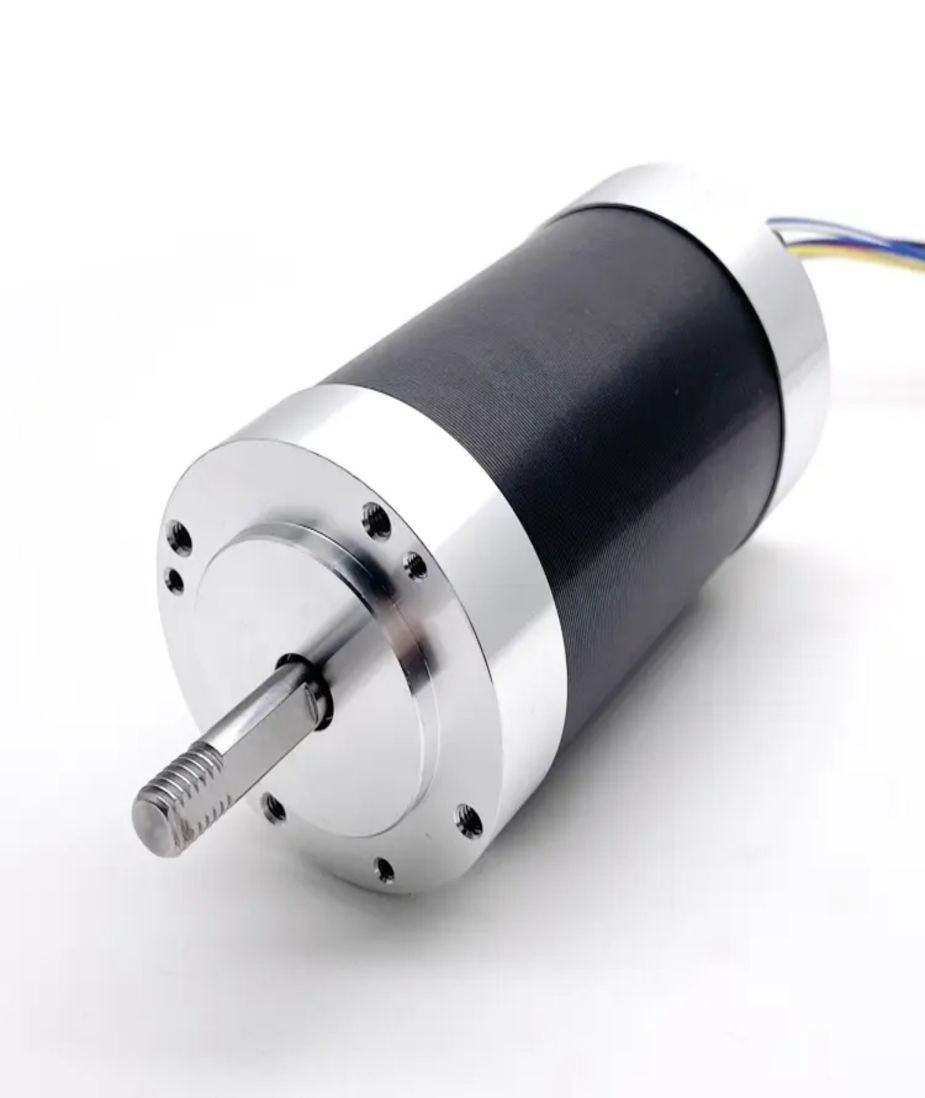

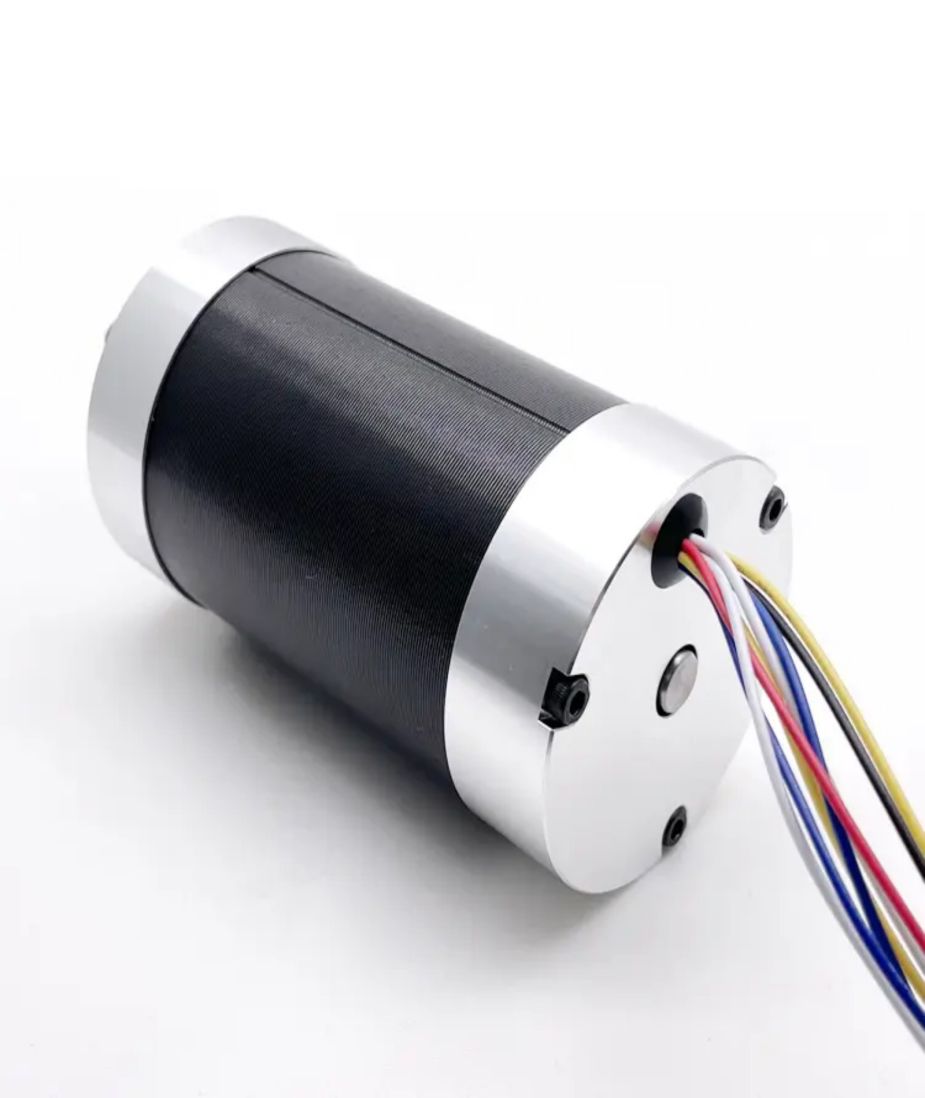

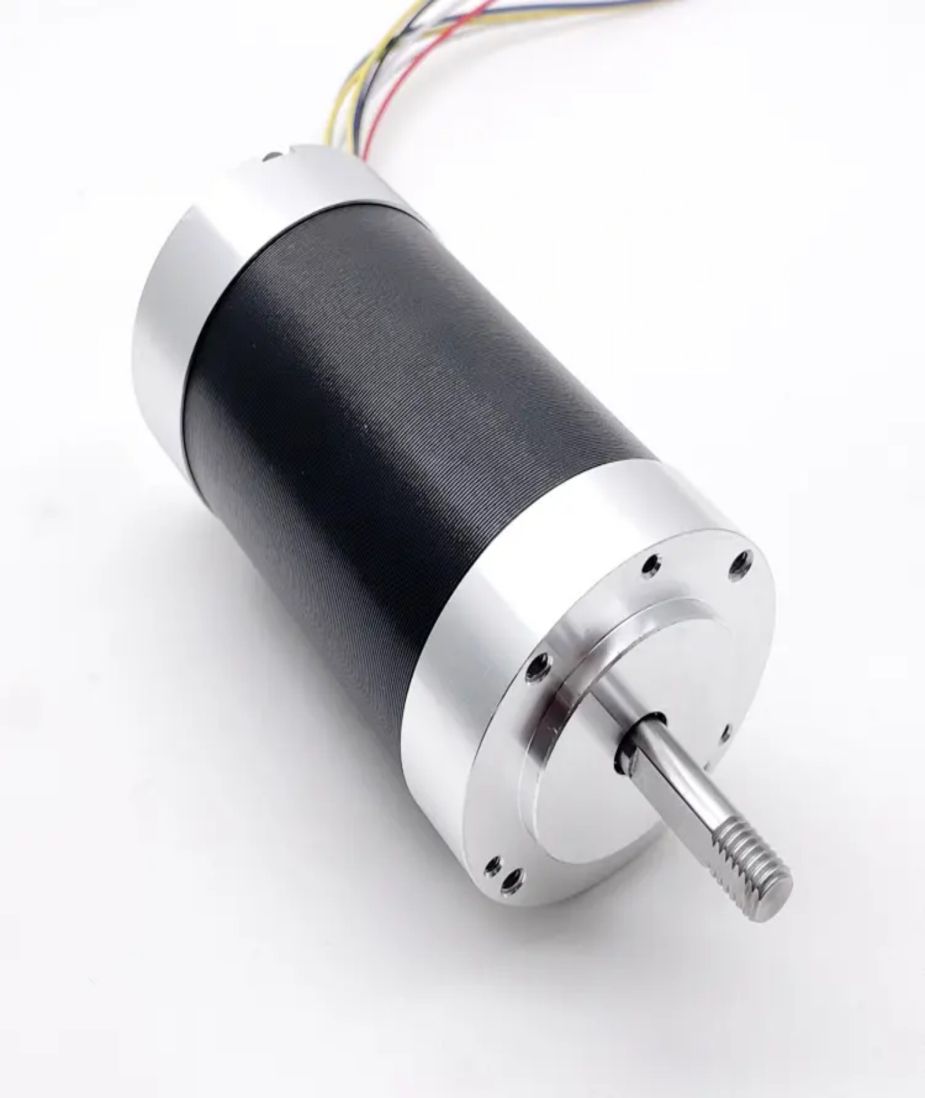

Diameter Ø56mm BLDC Brushless DC Motor
Brushless DC Motors

EC56100012

EC56100012 Brushless DC Motor Ø56mm BLDC 12V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC56100012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
56
Housing Length (mm)
99.5
Shaft Diameter (Ø mm)
8
No-load Speed (rpm)
4500
No-load Current (A)
0.75
Nominal Speed (rpm)
3870
Nominal Torque (gf.cm)
1139.4
Nominal Current (A)
4.74
Nominal Power (W)
45.23
Stall Torque (gf.cm)
8138.2
Stall Current (A)
29.2
Life (hr Typical)
5000
Weight (g)
850
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing
