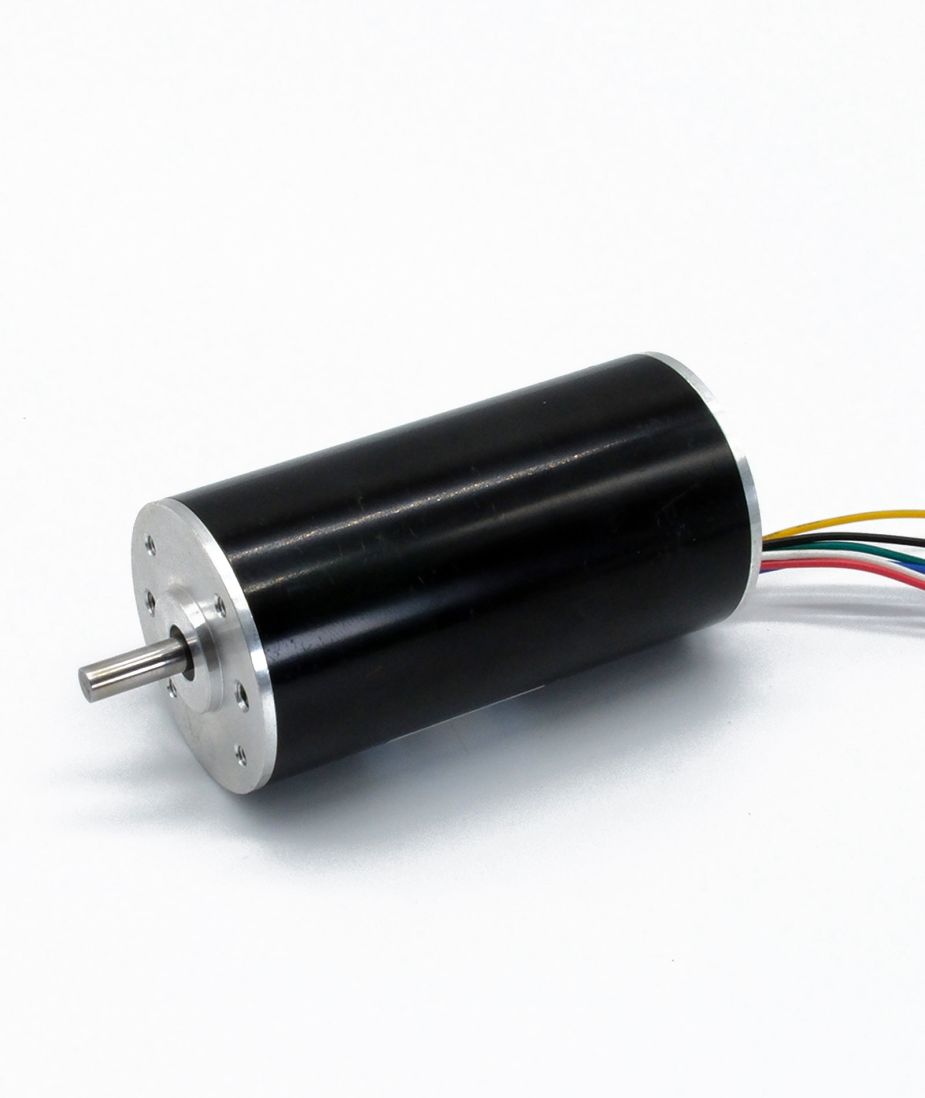

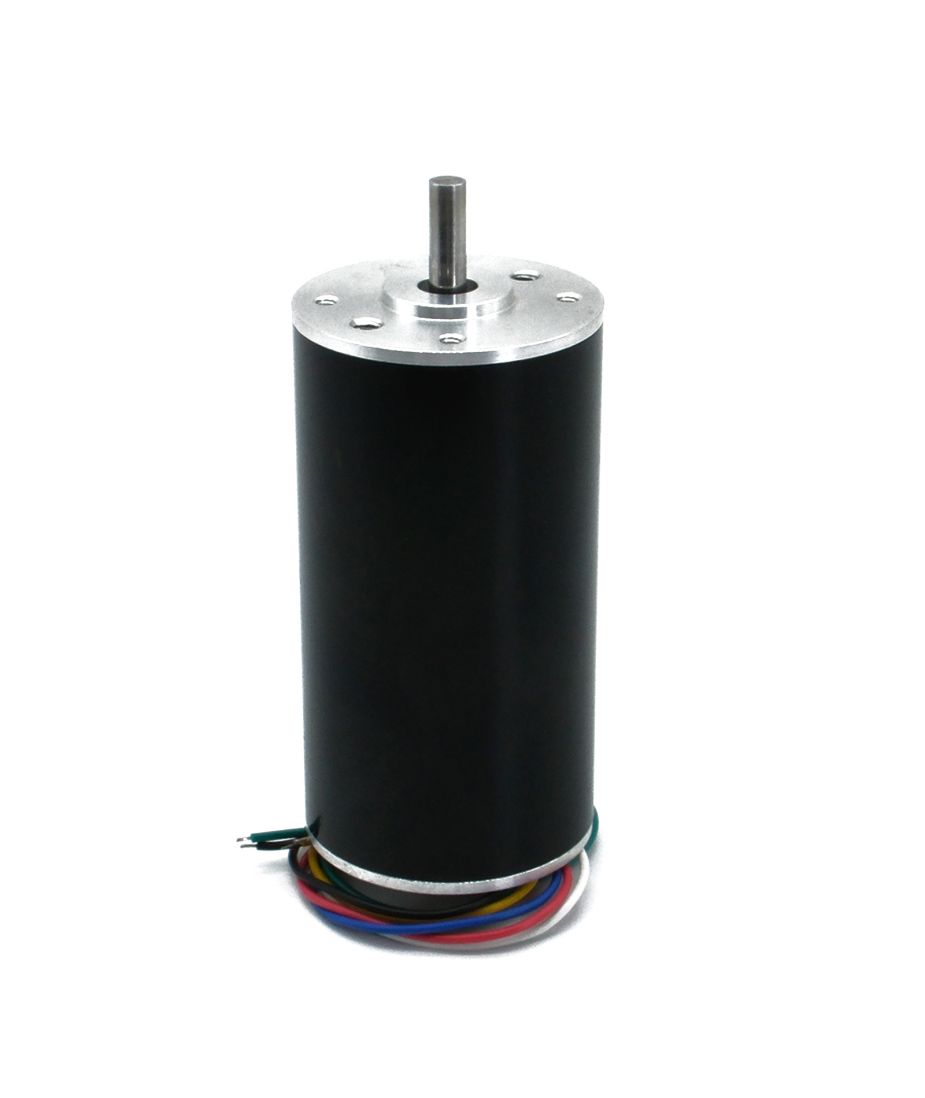

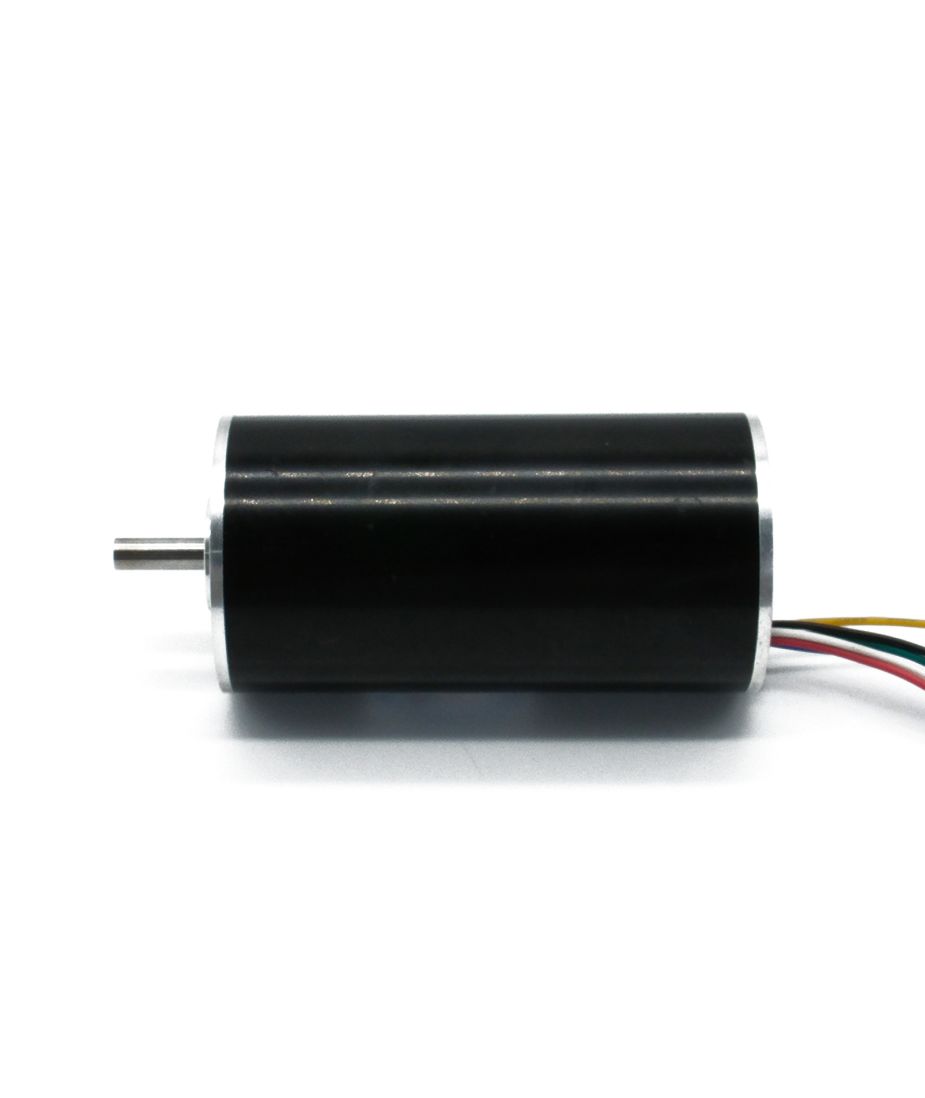

Diameter Ø42mm BLDC Brushless DC Motor
Brushless DC Motors

EC4280012

EC4280012 Brushless DC Motor Ø42mm BLDC 12V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC4280012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
42
Housing Length (mm)
80
Shaft Diameter (Ø mm)
5
No-load Speed (rpm)
5800
No-load Current (A)
0.00027
Nominal Speed (rpm)
5000
Nominal Torque (gf.cm)
1000
Nominal Current (A)
0.0043
Nominal Power (W)
50
Stall Torque (gf.cm)
8500
Stall Current (A)
21
Life (hr Typical)
5000
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing
