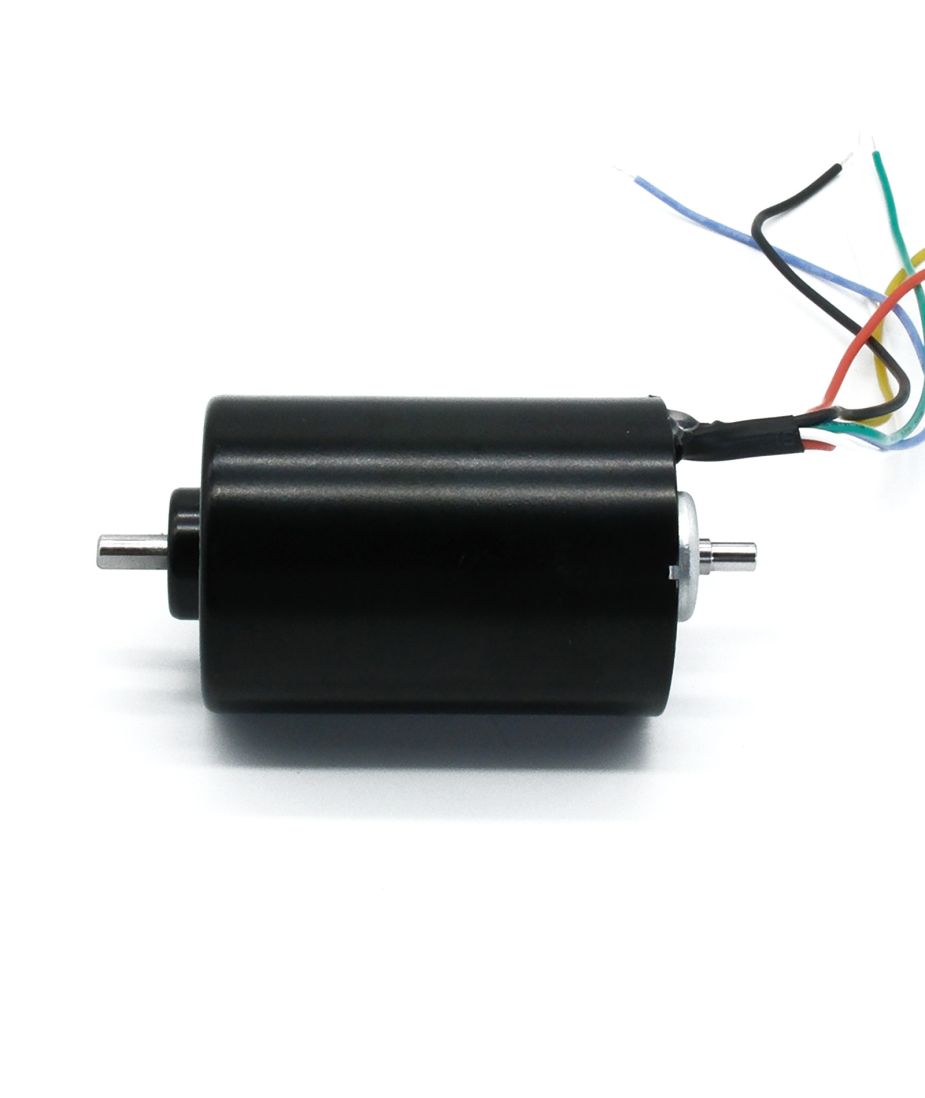

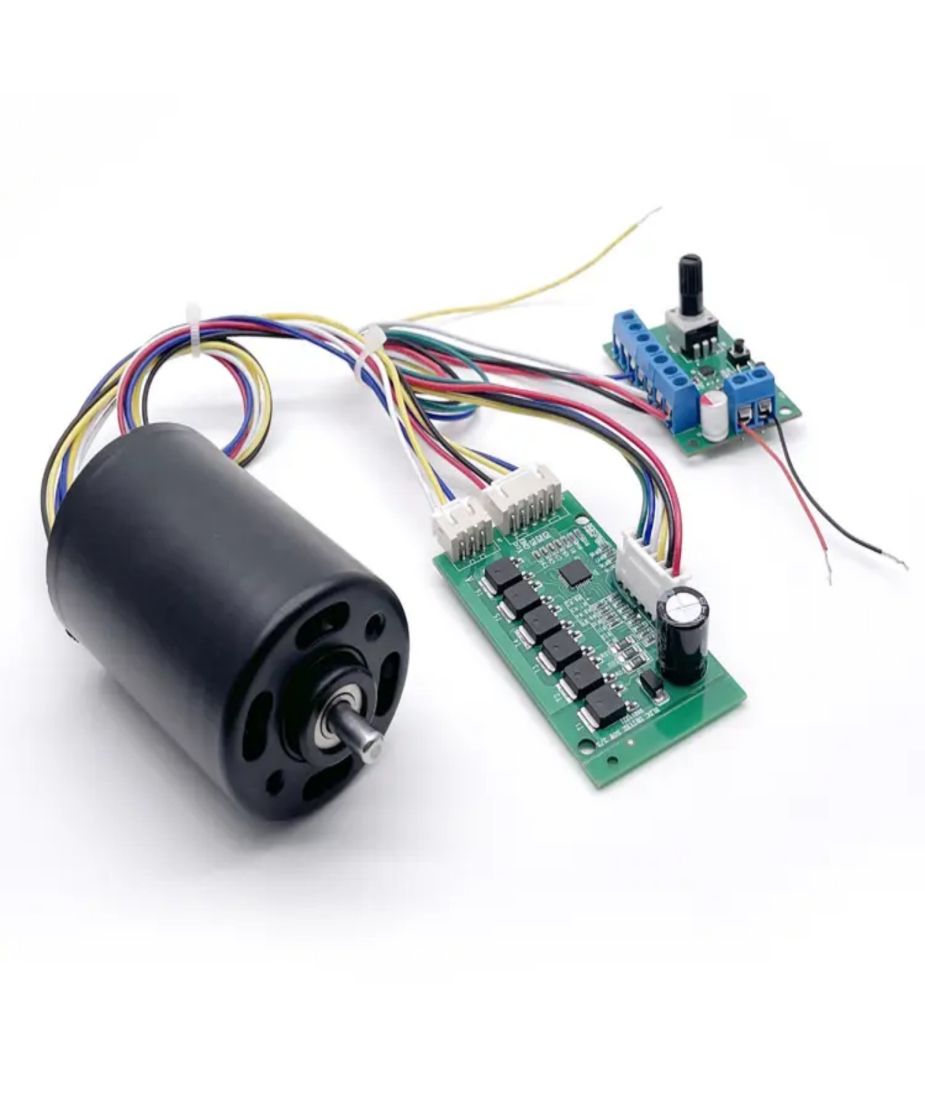

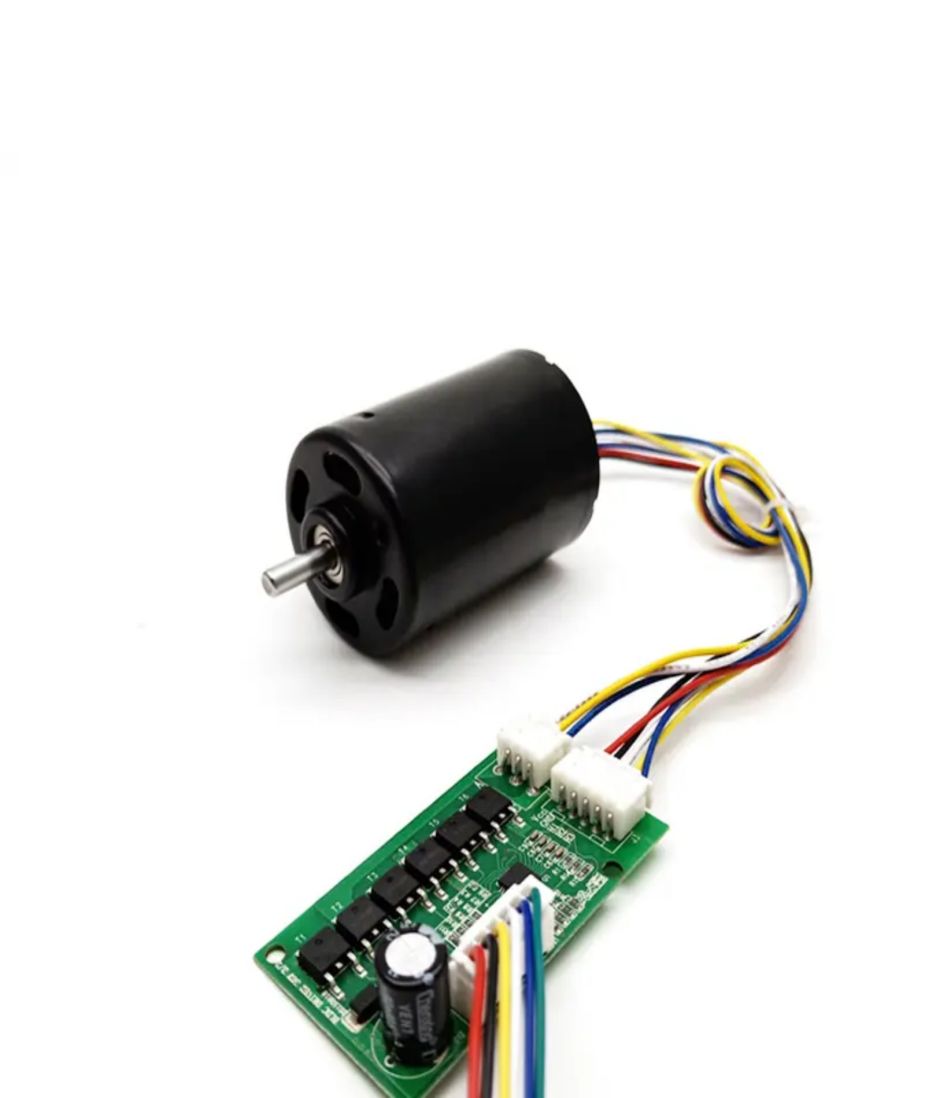

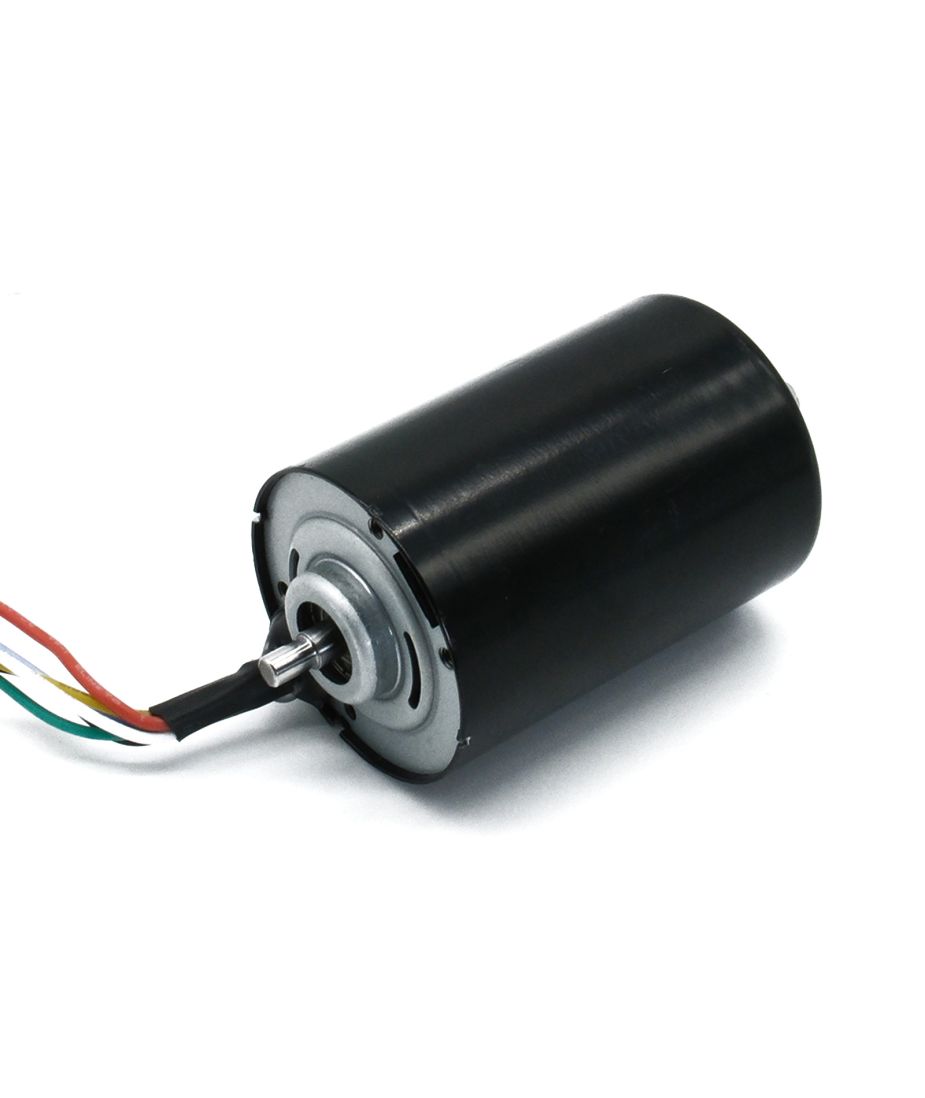

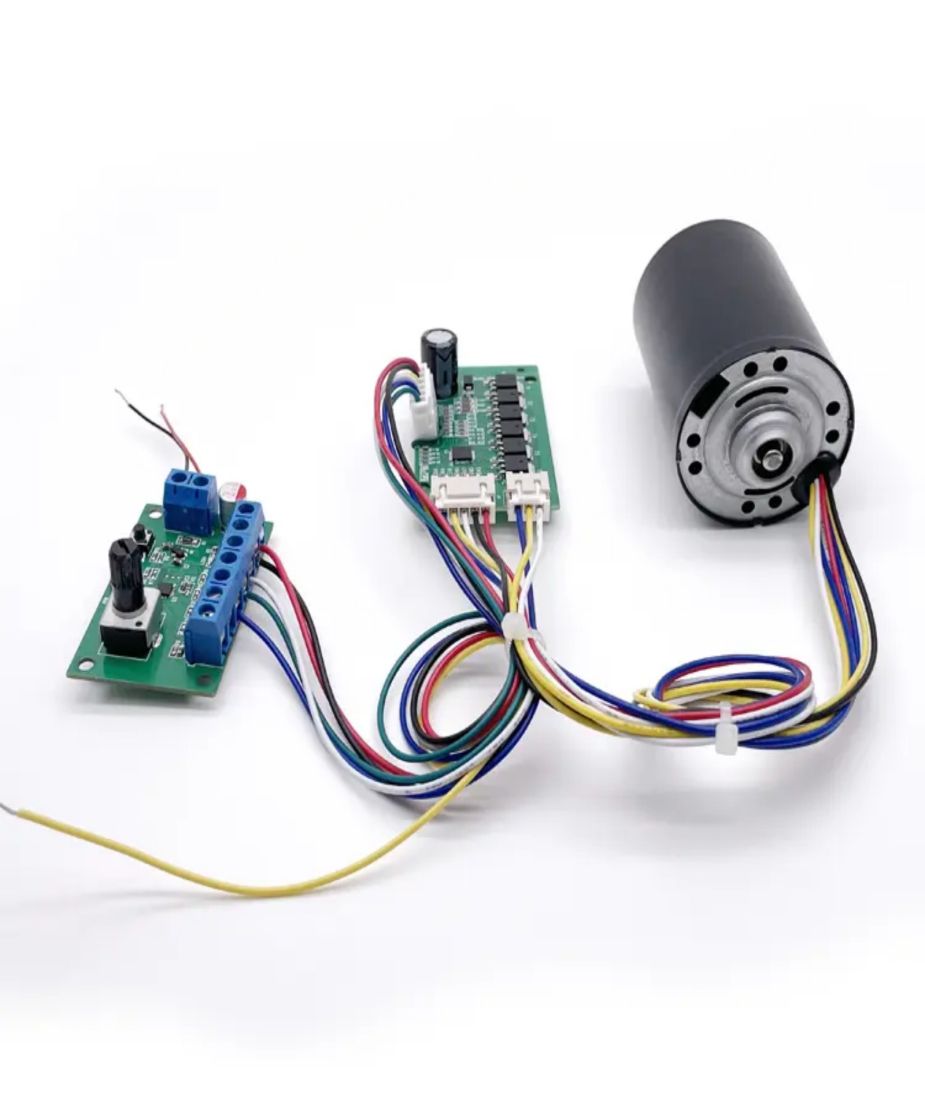

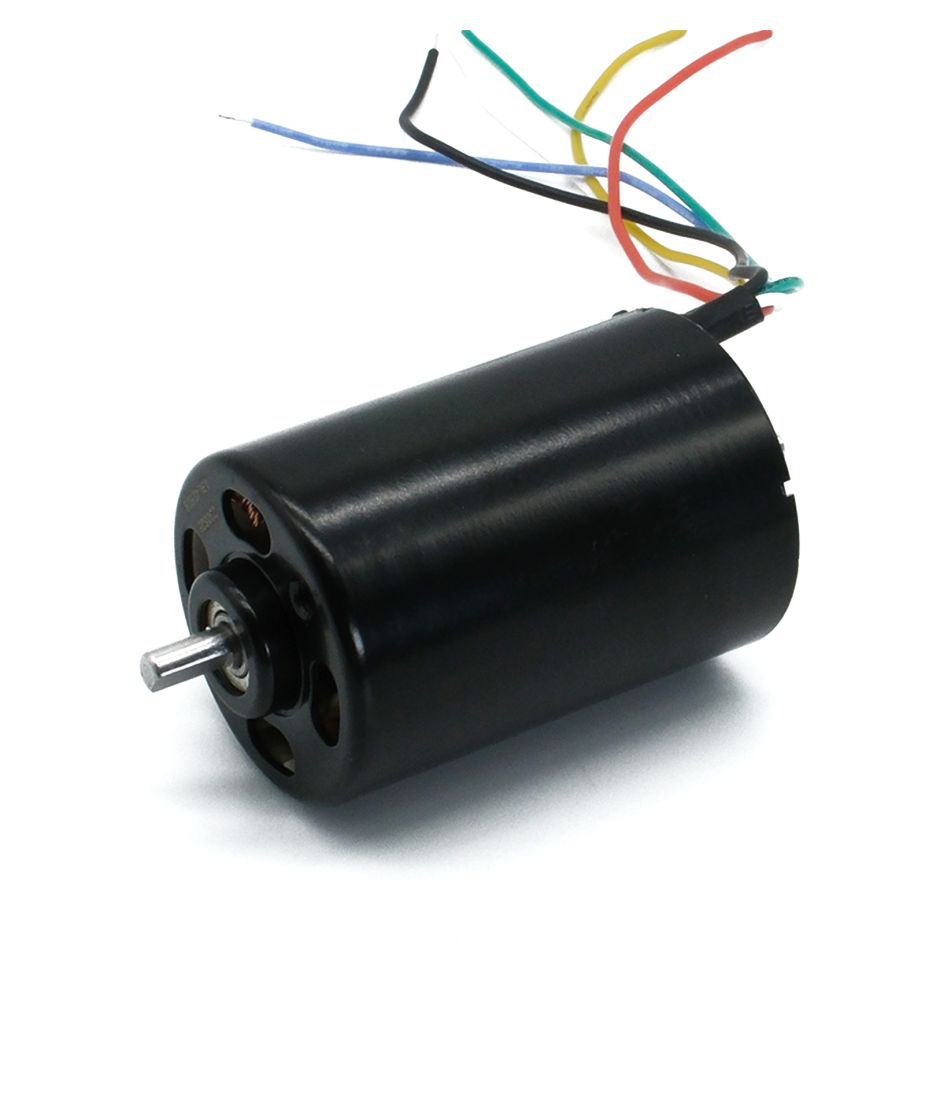

Diameter Ø42mm BLDC Brushless DC Motor
Brushless DC Motors

EC4266024

EC4266024 Brushless DC Motor Ø42mm BLDC 24V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC4266024
Nominal Voltage (V DC)
24
Motor Diameter (Ø mm)
42
Housing Length (mm)
66
Shaft Diameter (Ø mm)
5
No-load Speed (rpm)
5000
No-load Current (A)
0.325
Nominal Speed (rpm)
4400
Nominal Torque (gf.cm)
500
Nominal Current (A)
1.5
Nominal Power (W)
21
Stall Torque (gf.cm)
2500
Stall Current (A)
5
Life (hr Typical)
5000
Weight (g)
350
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing
