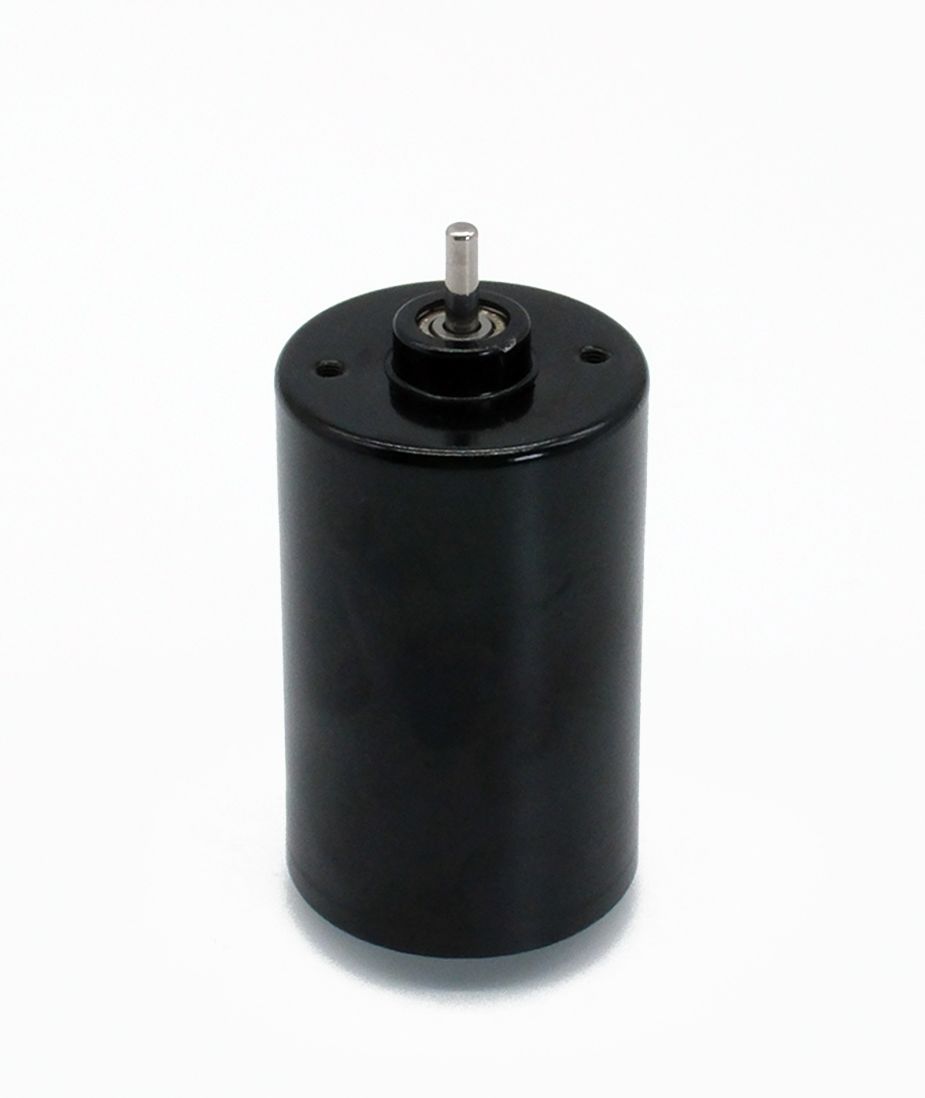

Diameter Ø36mm BLDC Brushless DC Motor
Brushless DC Motors

EC3657012

EC3657012 Brushless DC Motor Ø36mm BLDC 12V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC3657012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
36
Housing Length (mm)
57
Shaft Diameter (Ø mm)
3.175
No-load Speed (rpm)
3800
No-load Current (A)
0.00013
Nominal Speed (rpm)
2500
Nominal Torque (gf.cm)
400
Nominal Current (A)
0.0012
Nominal Power (W)
14
Stall Torque (gf.cm)
1450
Stall Current (A)
5
Life (hr Typical)
5000
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
