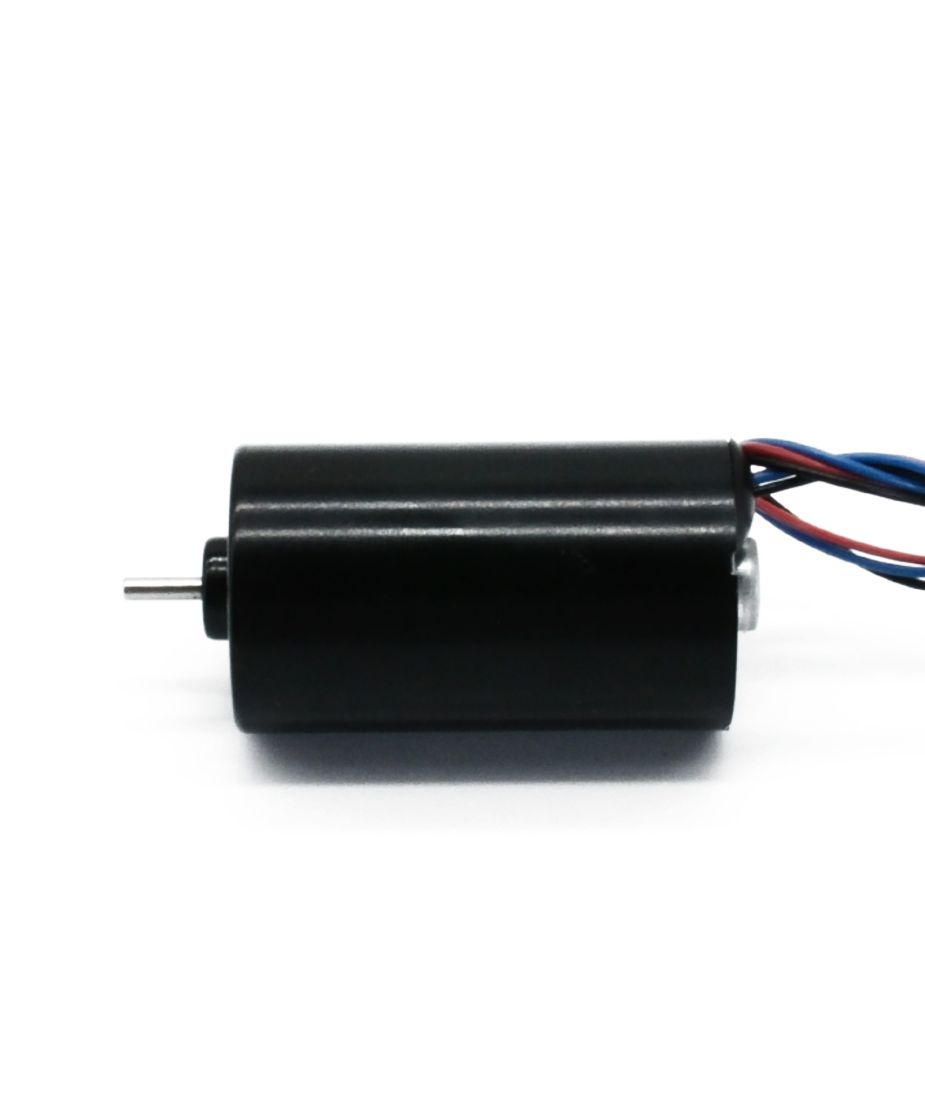

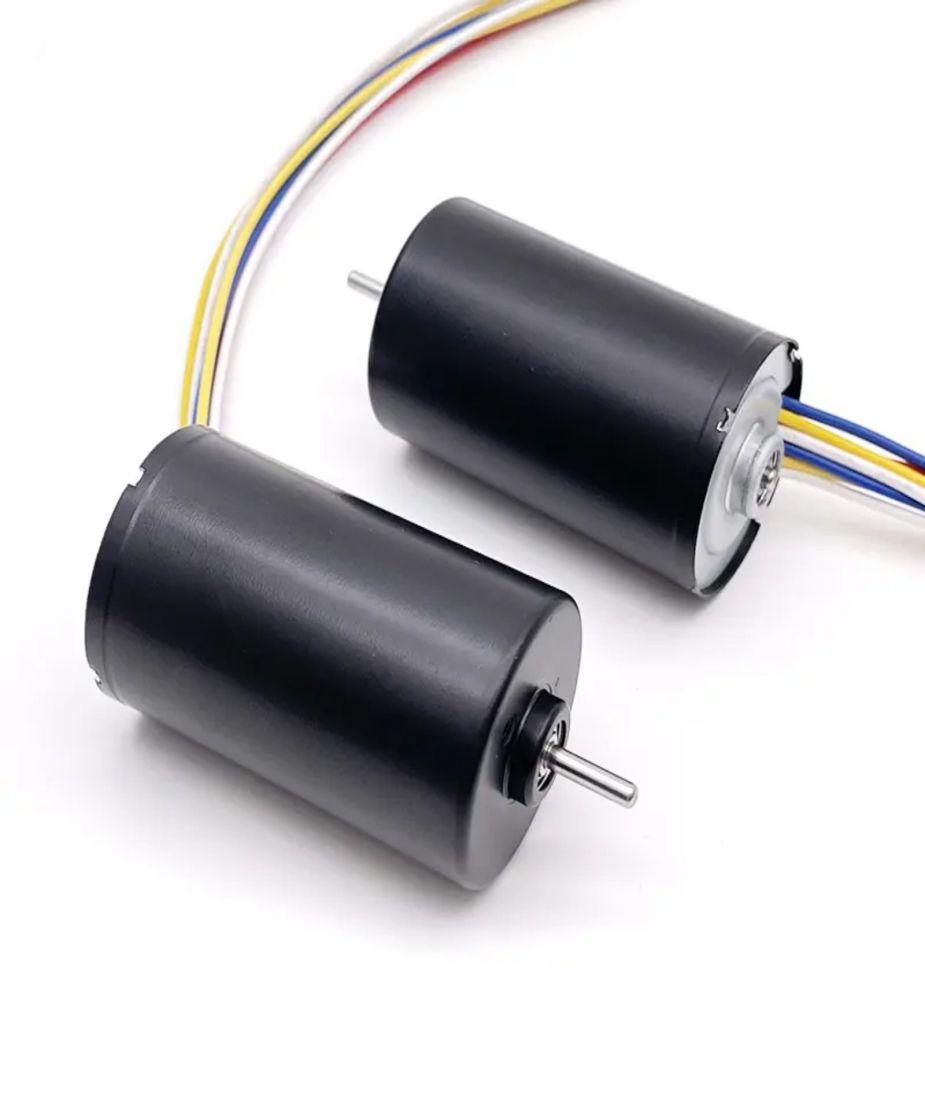

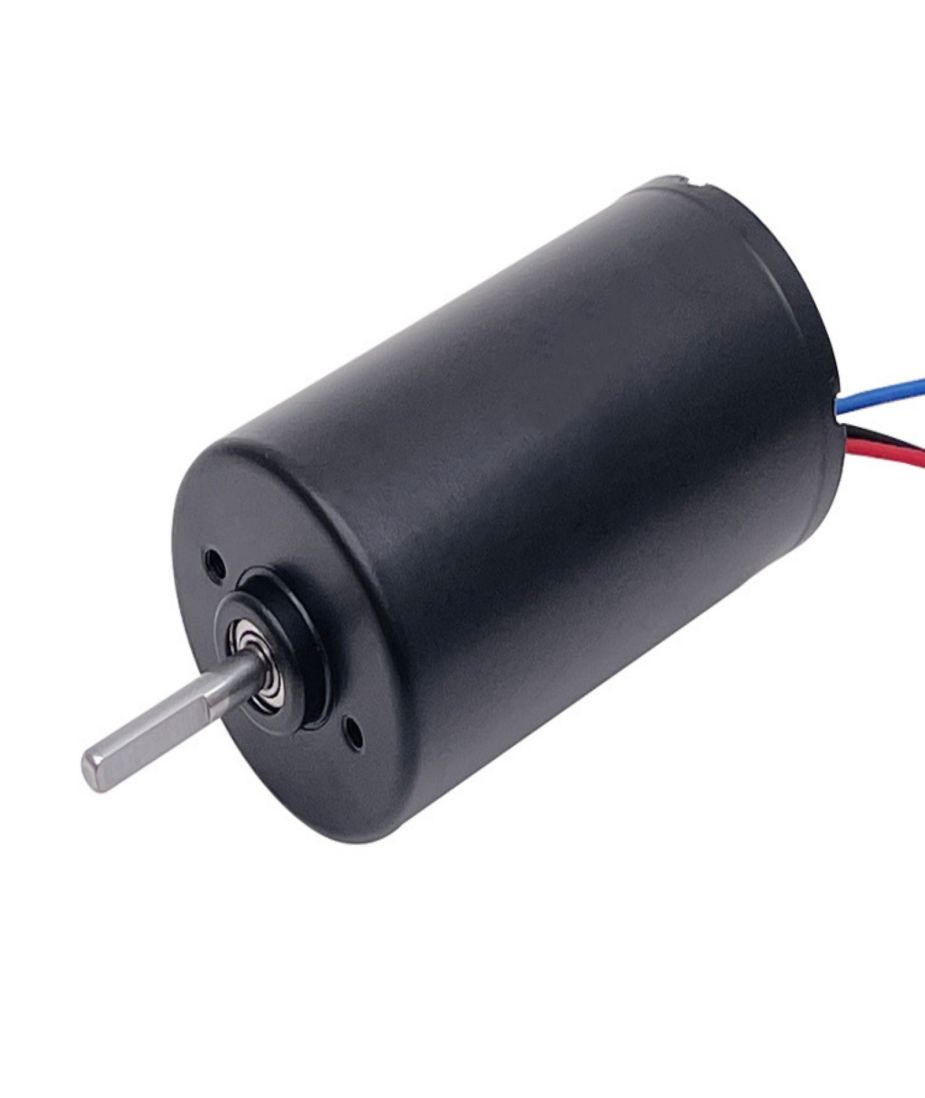

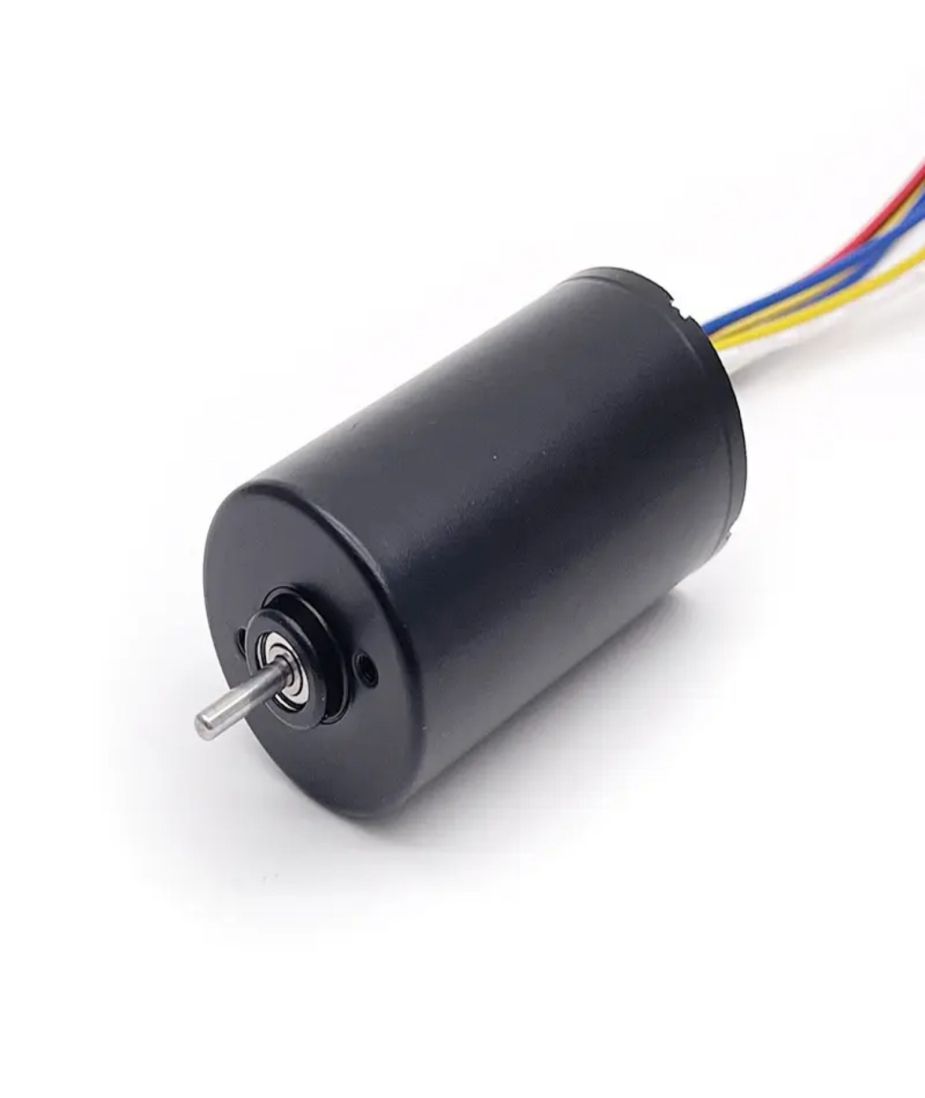

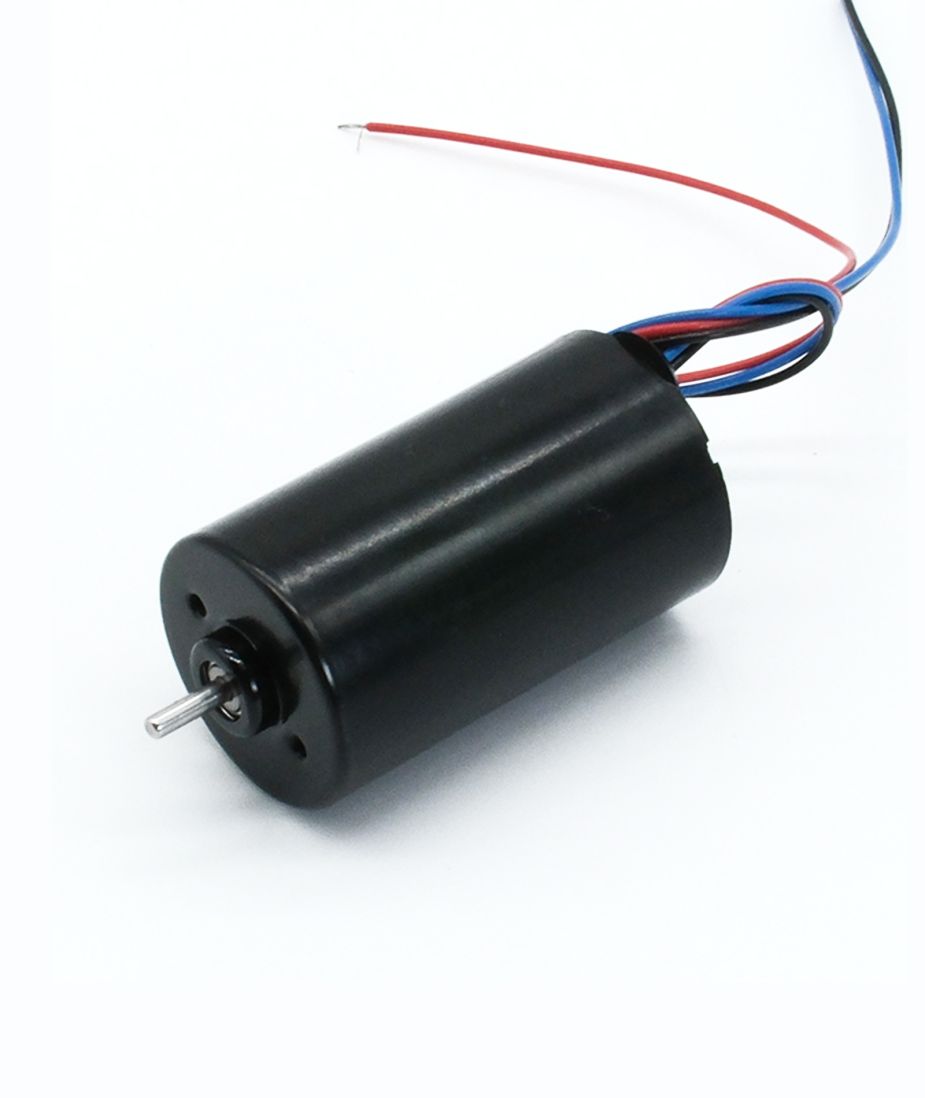

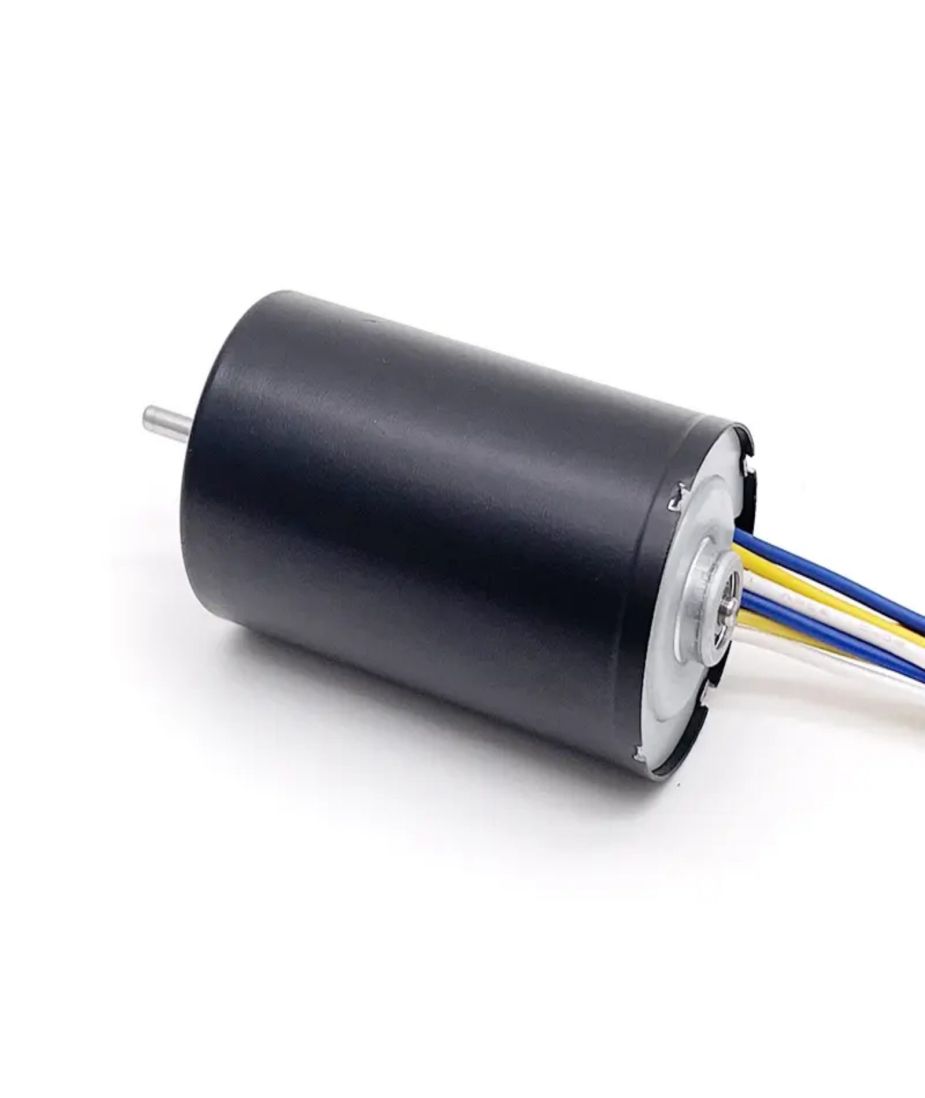

EC2847012 Brushless DC Motor Ø28mm
  • EC2847012 Brushless DC Motor Ø28mm
Brushless DC Motors

EC2847012

EC2847012 Brushless DC Motor Ø28mm BLDC 12V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC2847012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
28
Housing Length (mm)
46.5
Shaft Diameter (Ø mm)
2.3
No-load Speed (rpm)
5000
No-load Current (A)
0.19
Nominal Speed (rpm)
4100
Nominal Torque (gf.cm)
155.5
Nominal Current (A)
0.84
Nominal Power (W)
6.5
Stall Torque (gf.cm)
800
Stall Current (A)
3.8
Life (hr Typical)
3000&5000
Weight (g)
105
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
