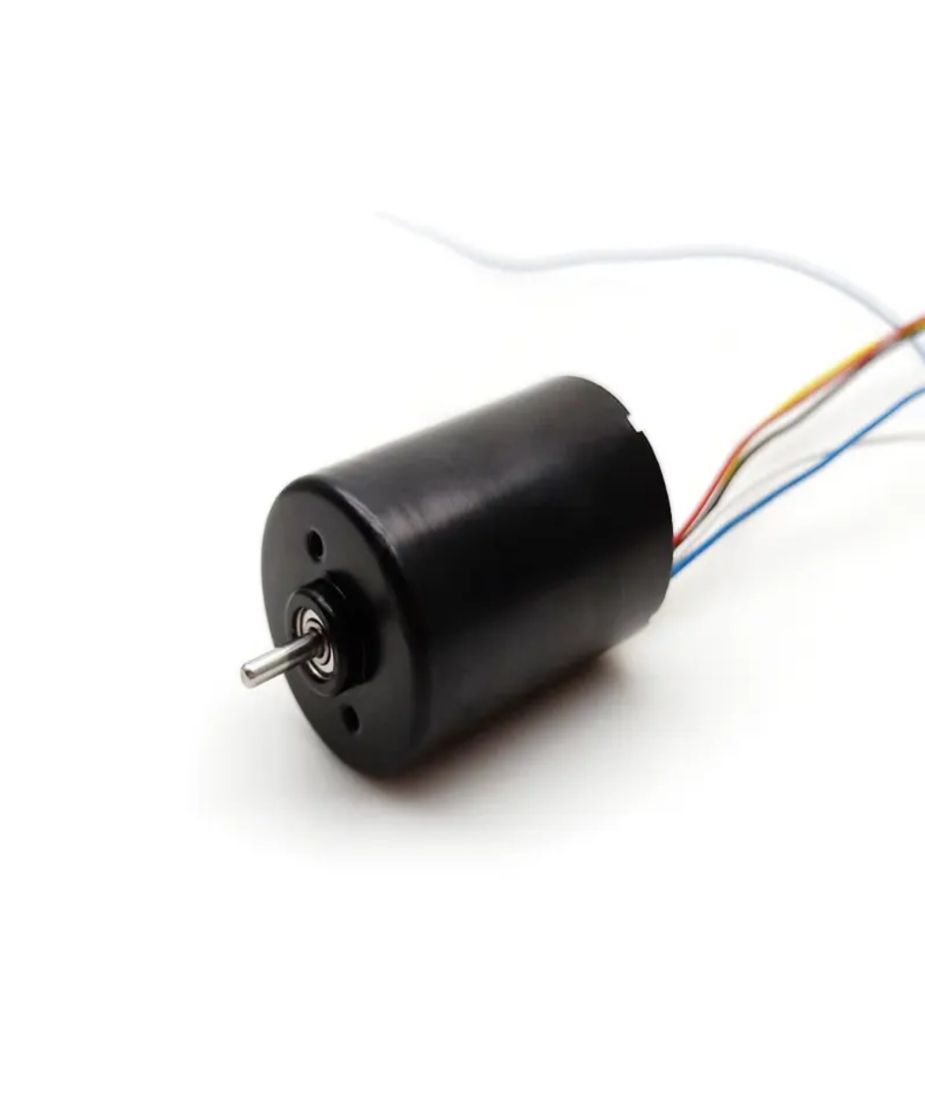

EC2838012 Brushless DC Motor Ø28mm BLDC 12V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service

Specifications

Model
EC2838012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
28
Housing Length (mm)
37.8
Shaft Diameter (Ø mm)
2.3
No-load Speed (rpm)
5000
No-load Current (A)
0.14
Nominal Speed (rpm)
4200
Nominal Torque (gf.cm)
100
Nominal Current (A)
0.55
Nominal Power (W)
4.3
Stall Torque (gf.cm)
750
Stall Current (A)
3.2
Life (hr Typical)
3000&5000
Weight (g)
90
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
