Diameter Ø24mm BLDC Brushless DC Motor
Brushless DC Motors

EC2418012

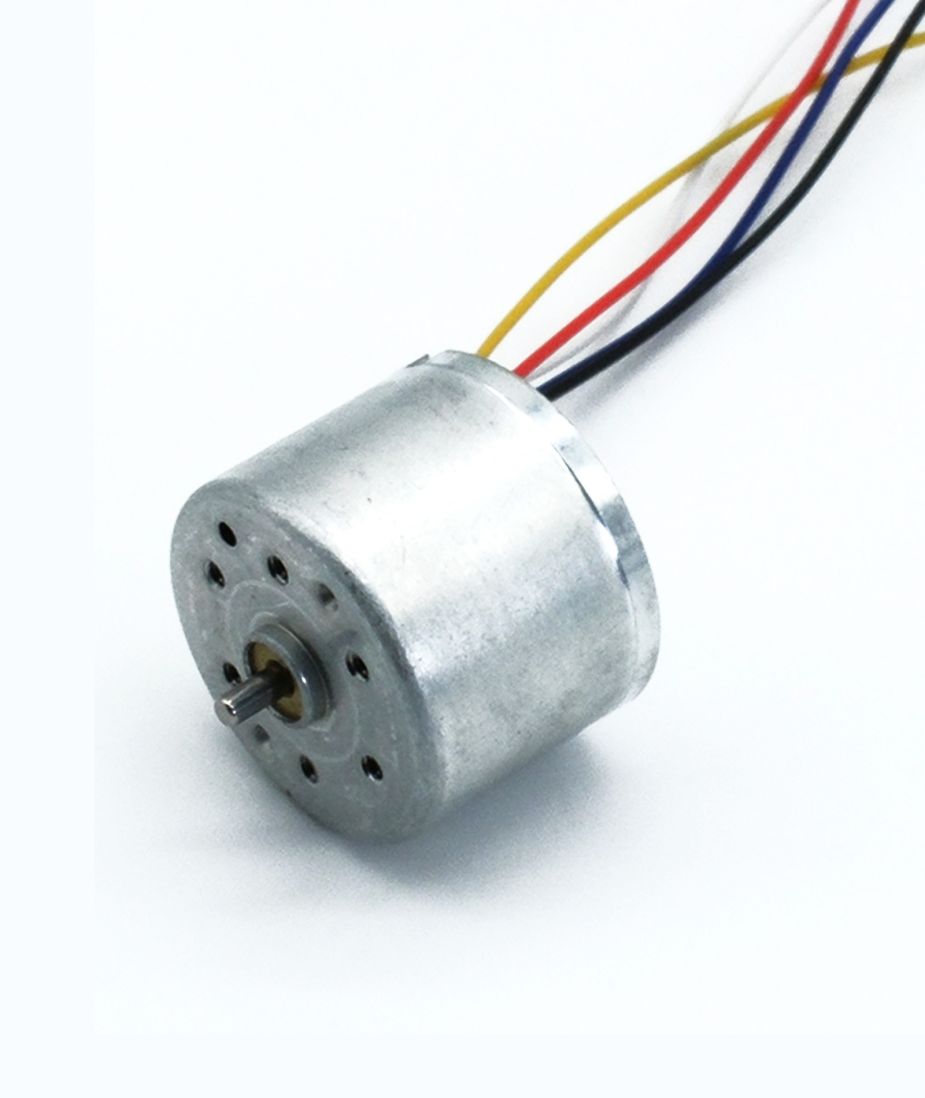

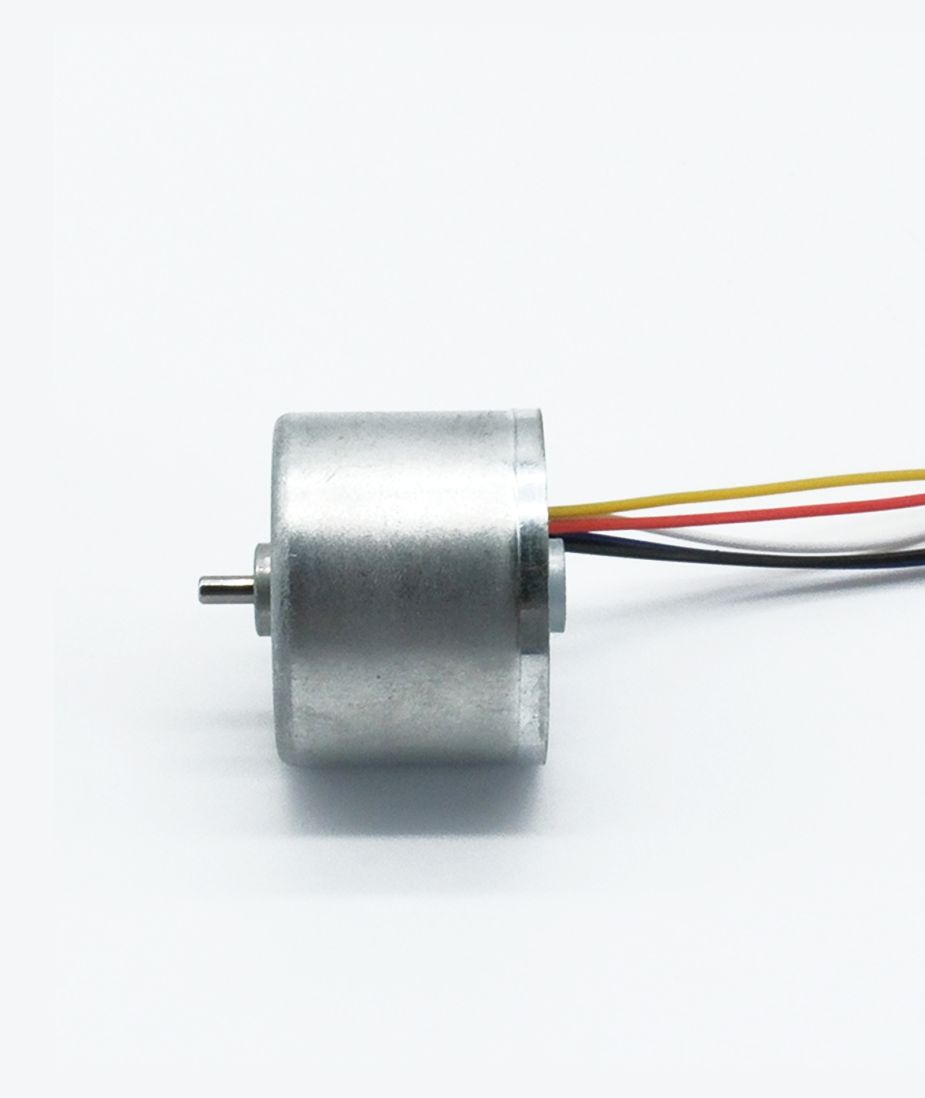

EC2418012 Brushless DC Motor Ø24mm BLDC 12V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC2418012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
24.4
Housing Length (mm)
18
Shaft Diameter (Ø mm)
4
No-load Speed (rpm)
6200
No-load Current (A)
0.06
Nominal Speed (rpm)
5100
Nominal Torque (gf.cm)
20
Nominal Current (A)
0.18
Nominal Power (W)
1.05
Stall Torque (gf.cm)
110
Stall Current (A)
0.7
Life (hr Typical)
3000
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
