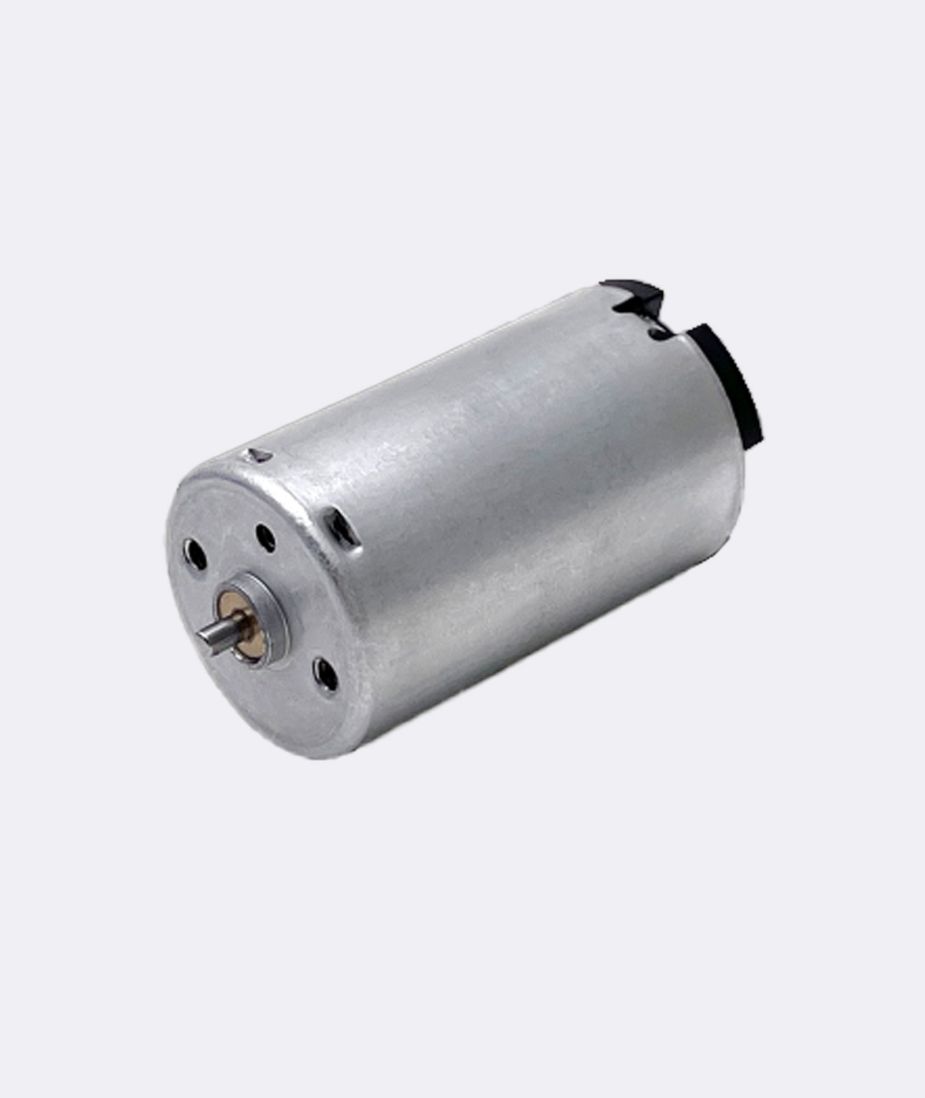

Diameter Ø22mm BLDC Brushless DC Motor
Brushless DC Motors

EC2238012

EC2238012 Brushless DC Motor Ø22mm BLDC 12V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC2238012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
22
Housing Length (mm)
38
Shaft Diameter (Ø mm)
2
No-load Speed (rpm)
5000
No-load Current (A)
0.045
Nominal Speed (rpm)
3100
Nominal Torque (gf.cm)
50
Nominal Current (A)
0.3
Nominal Power (W)
1.6
Stall Torque (gf.cm)
137
Stall Current (A)
0.75
Life (hr Typical)
3000
Weight (g)
47
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing
