Diameter Ø20mm BLDC Brushless DC Motor
Brushless DC Motors

EC2047012

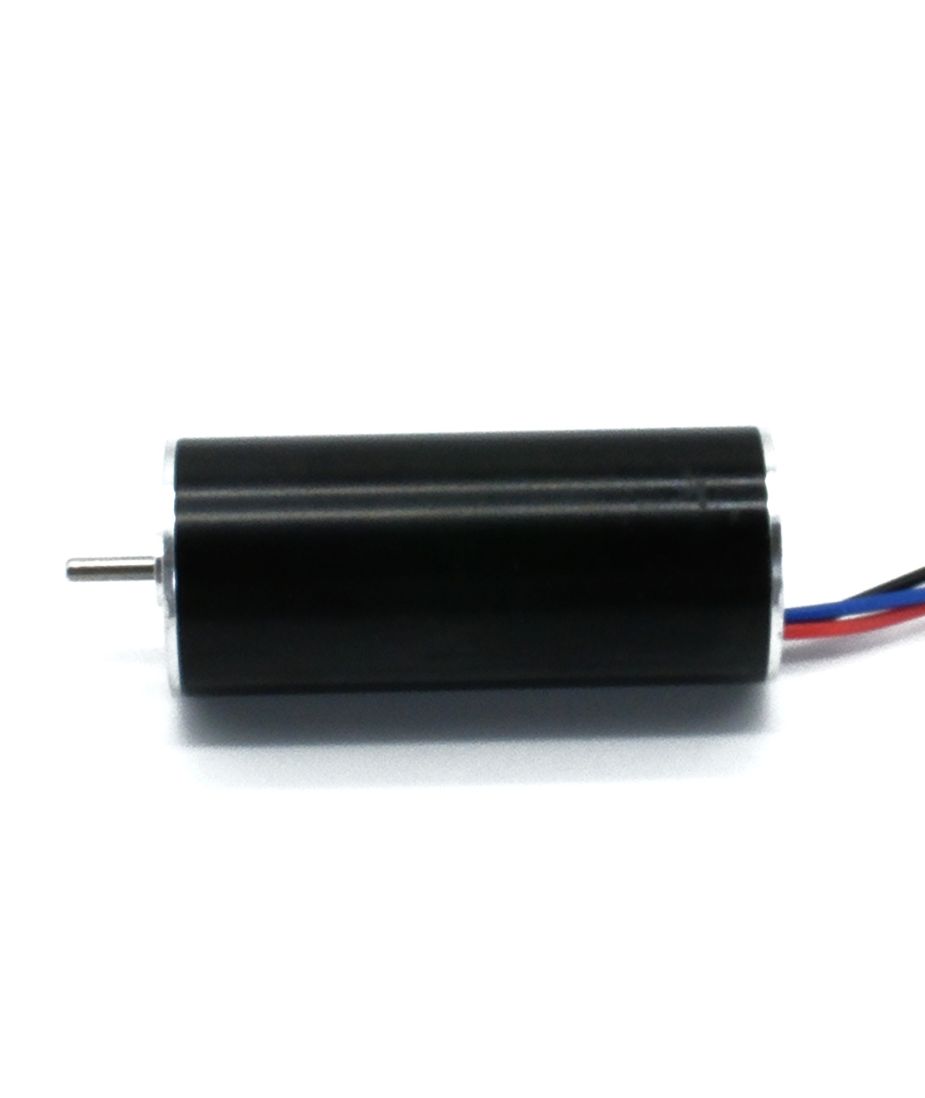

EC2047012 Brushless DC Motor Ø20mm BLDC 12V EC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
EC2047012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
20
Housing Length (mm)
47
Shaft Diameter (Ø mm)
4
No-load Speed (rpm)
5000
No-load Current (A)
0.048
Nominal Speed (rpm)
3700
Nominal Torque (gf.cm)
20
Nominal Current (A)
0.125
Nominal Power (W)
0.75
Stall Torque (gf.cm)
75
Stall Current (A)
340
Life (hr Typical)
3000
Weight (g)
53
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
