Diameter Ø10mm DC Coreless Brushed DC Motor
Brushed DC Motors

DCL1015006

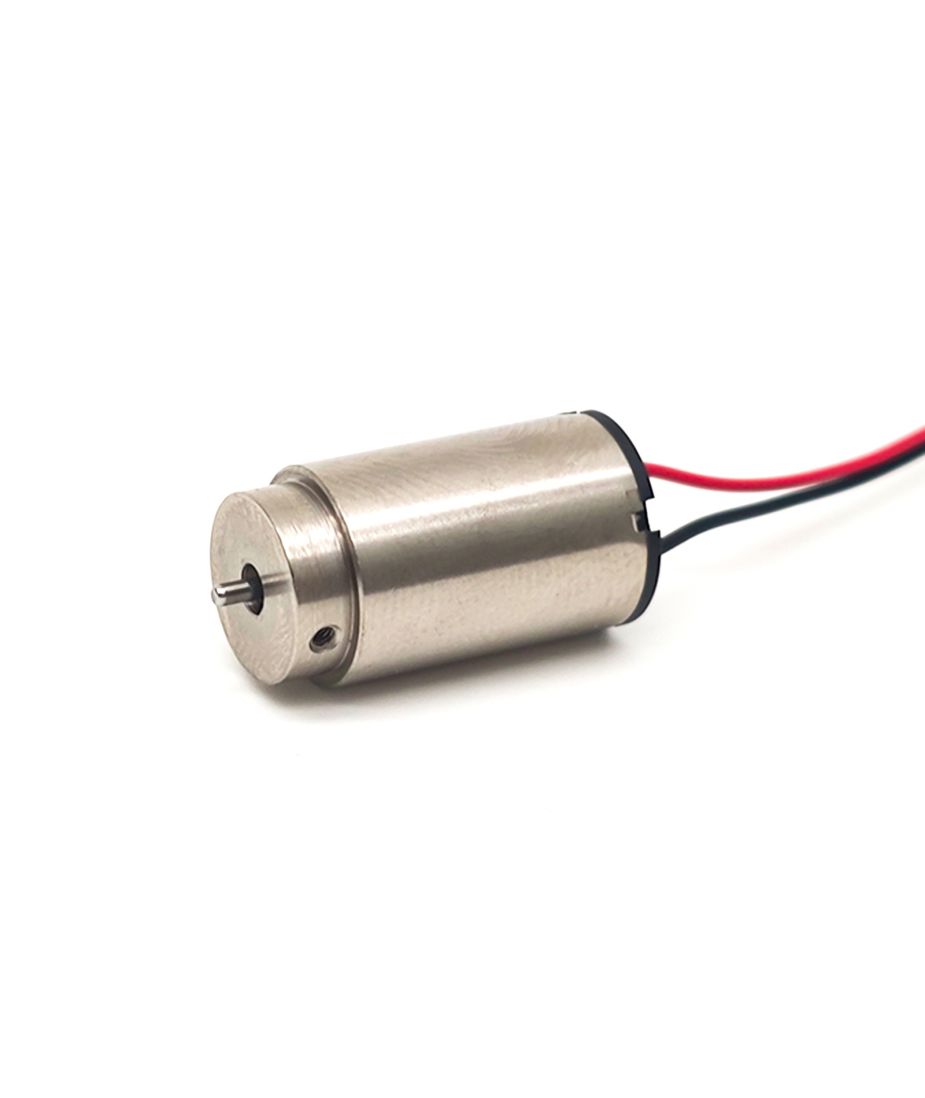

1015 Coreless Motor Diameter Ø10mm DC 6V Ironless Winding
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
DCL1015006
Nominal Voltage (V DC)
6
Motor Diameter (Ø mm)
10
Housing Length (mm)
15
Shaft Diameter (Ø mm)
1
No-load Speed (rpm)
15026
No-load Current (A)
0.01
Nominal Speed (rpm)
11869
Nominal Torque (gf.cm)
5
Nominal Current (A)
0.146
Nominal Power (W)
0.6
Stall Torque (gf.cm)
20
Stall Current (A)
0.65
Weight (g)
6
Ironless Winding
Yes
Internal Rotor
Yes

Dimension Drawing

Downloads
