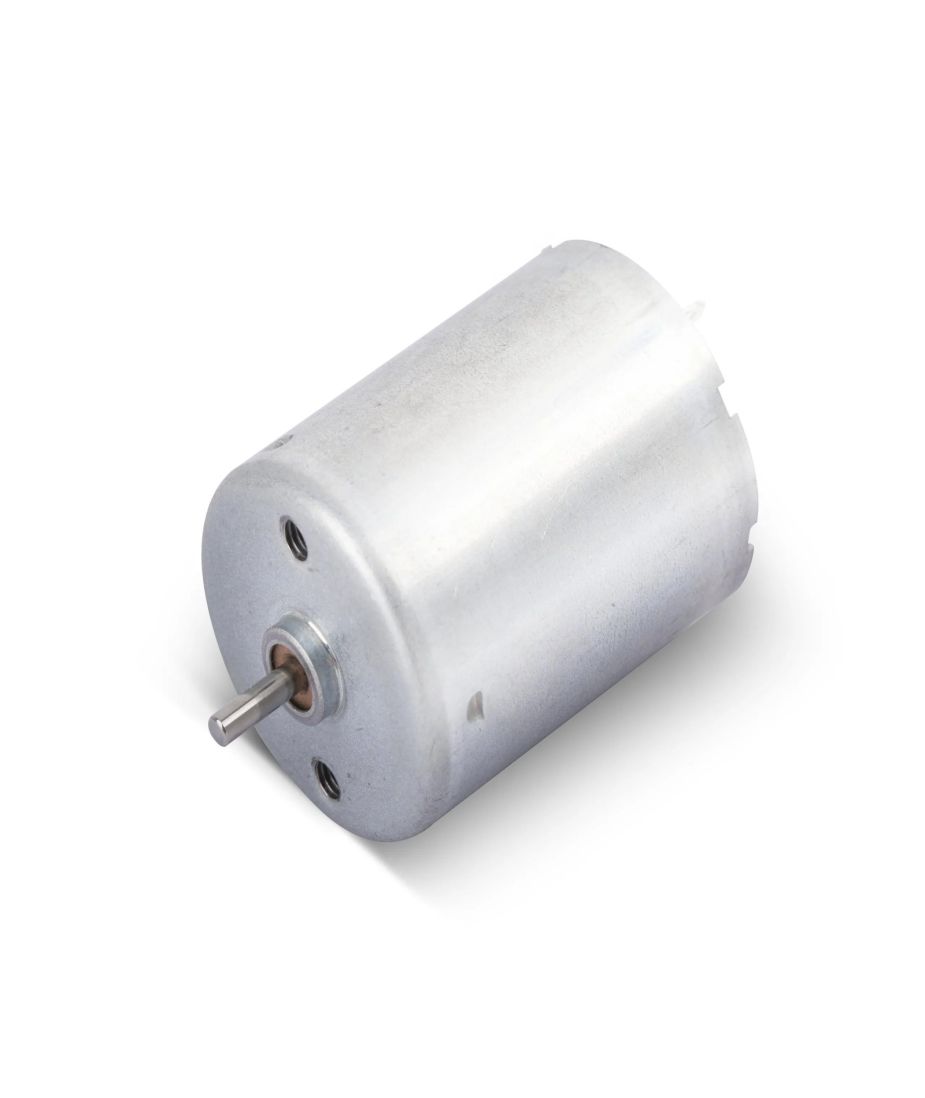

Diameter Ø24mm 370 Brushed DC Motor
Brushed DC Motors

DC2431012

370 Brushed DC Motor Diameter Ø24mm 12V DC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
DC2431012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
24.4
Housing Length (mm)
30.8
Shaft Diameter (Ø mm)
4
No-load Speed (rpm)
5600
No-load Current (A)
0.025
Nominal Speed (rpm)
4850
Nominal Torque (gf.cm)
25
Nominal Current (A)
0.17
Nominal Power (W)
1.24
Stall Torque (gf.cm)
186
Stall Current (A)
1.1
Weight (g)
13
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
