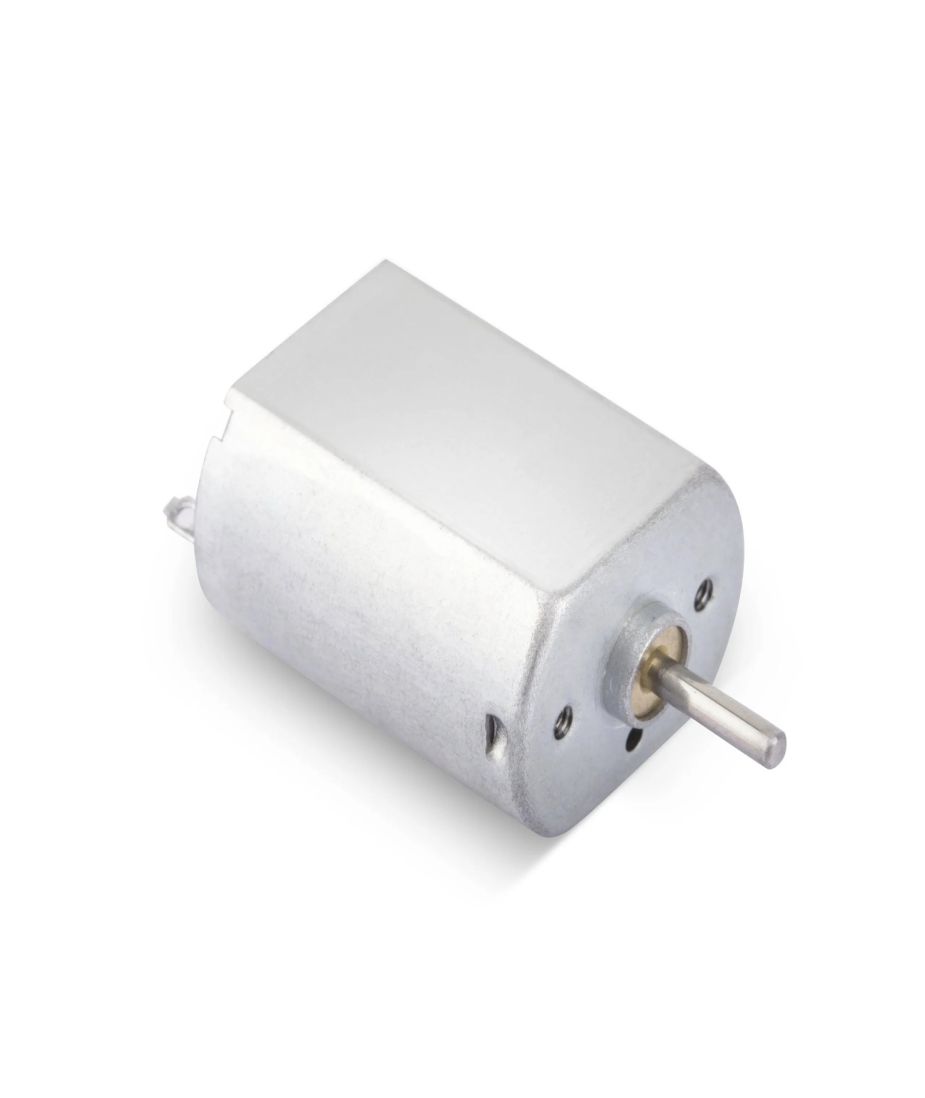

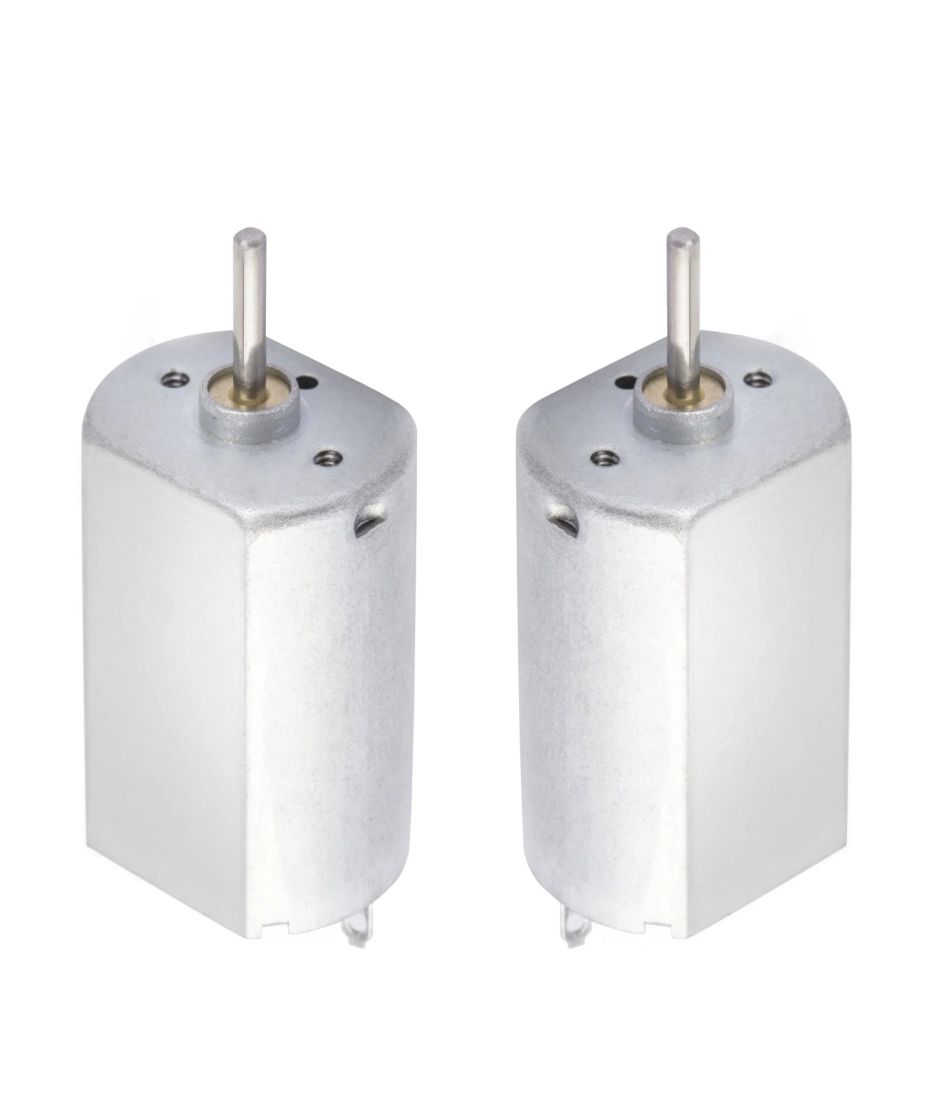

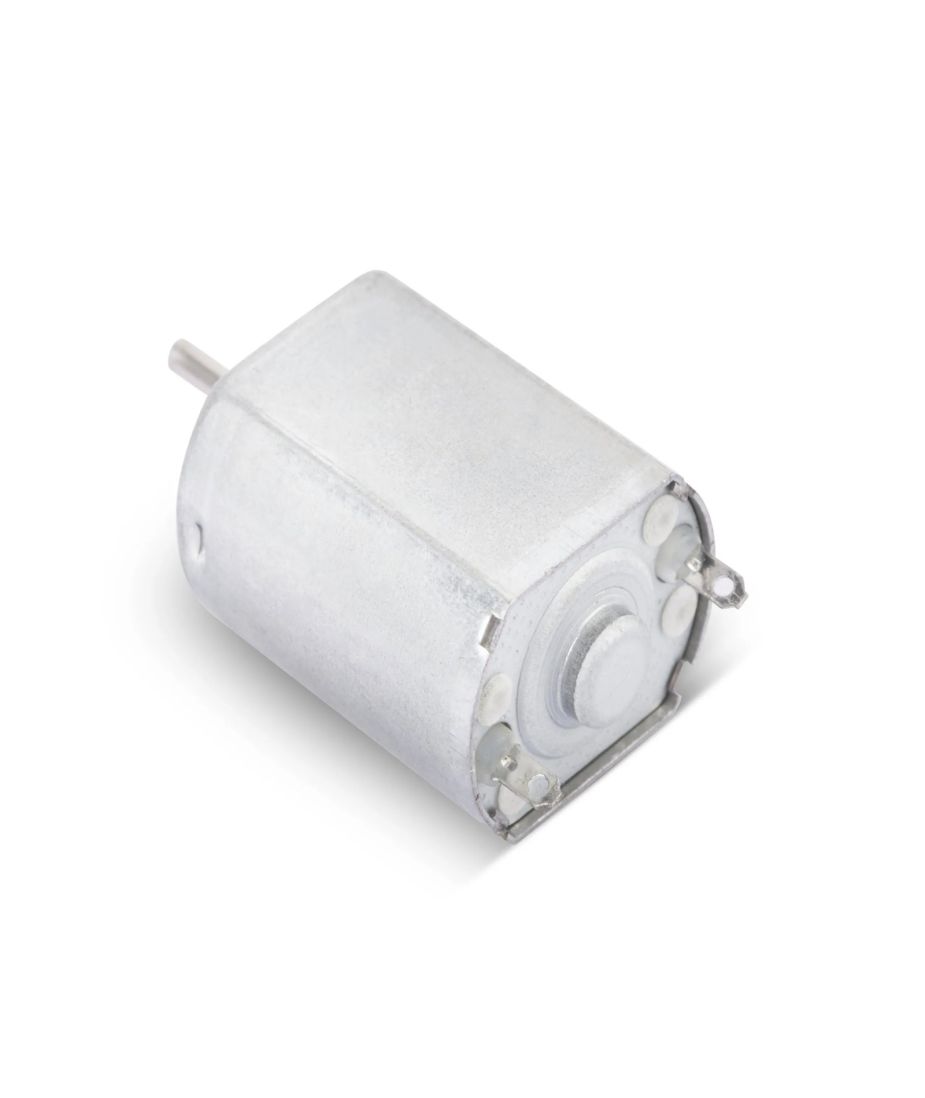

Diameter Ø16mm 130 Brushed DC Motor
Brushed DC Motors

DC1625012

130 Brushed DC Motor Diameter Ø16mm 12V DC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
DC1625012
Nominal Voltage (V DC)
12
Motor Diameter (Ø mm)
15.5
Housing Length (mm)
25.1
Shaft Diameter (Ø mm)
4
No-load Speed (rpm)
8800
No-load Current (A)
0.04
Nominal Speed (rpm)
6900
Nominal Torque (gf.cm)
15
Nominal Current (A)
0.17
Nominal Power (W)
1.1
Stall Torque (gf.cm)
70
Stall Current (A)
0.7
Weight (g)
35
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
