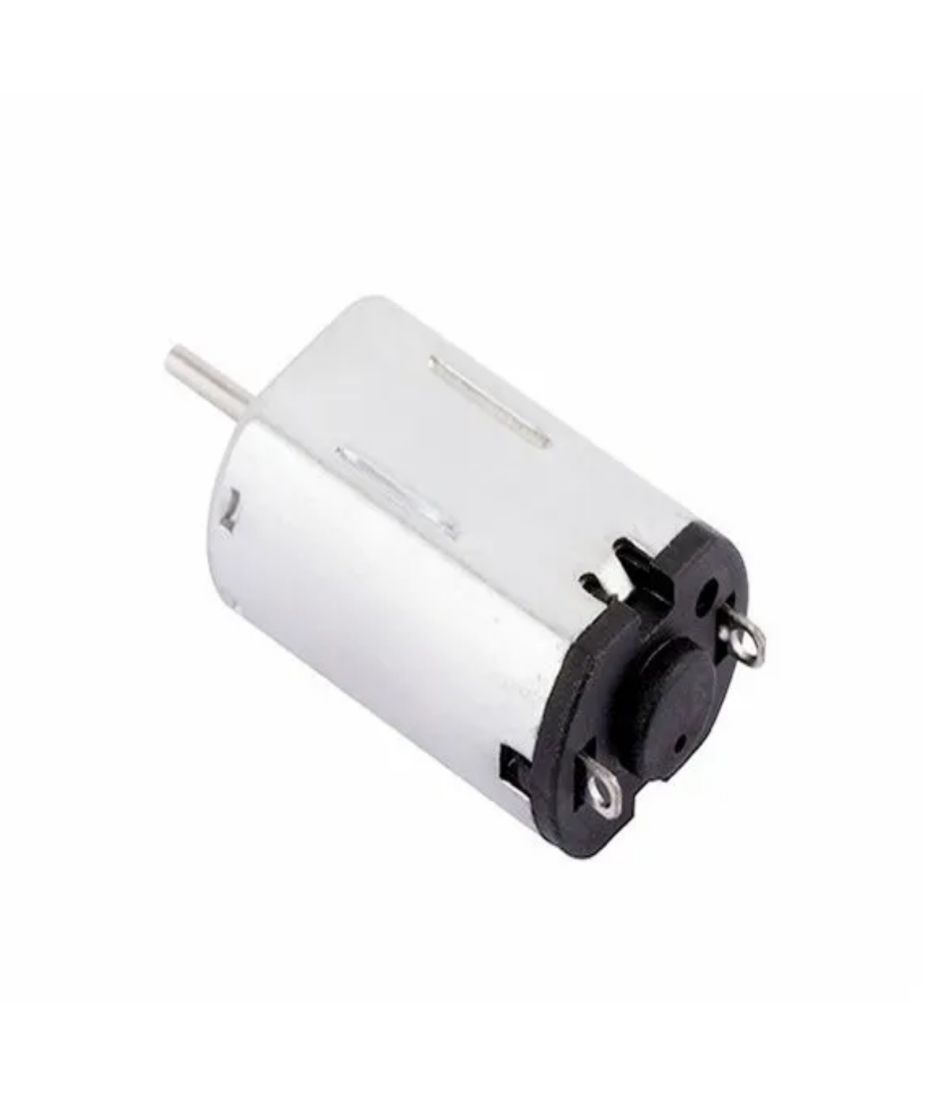

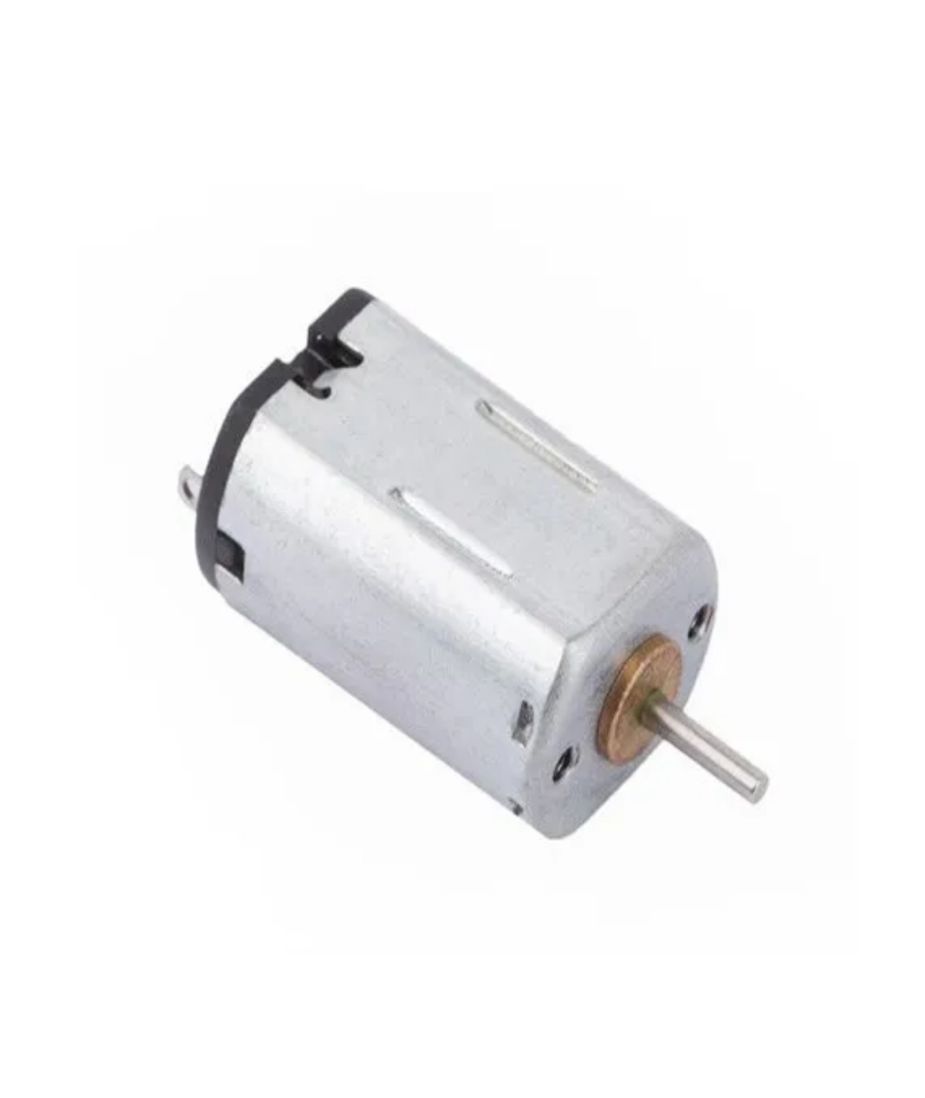

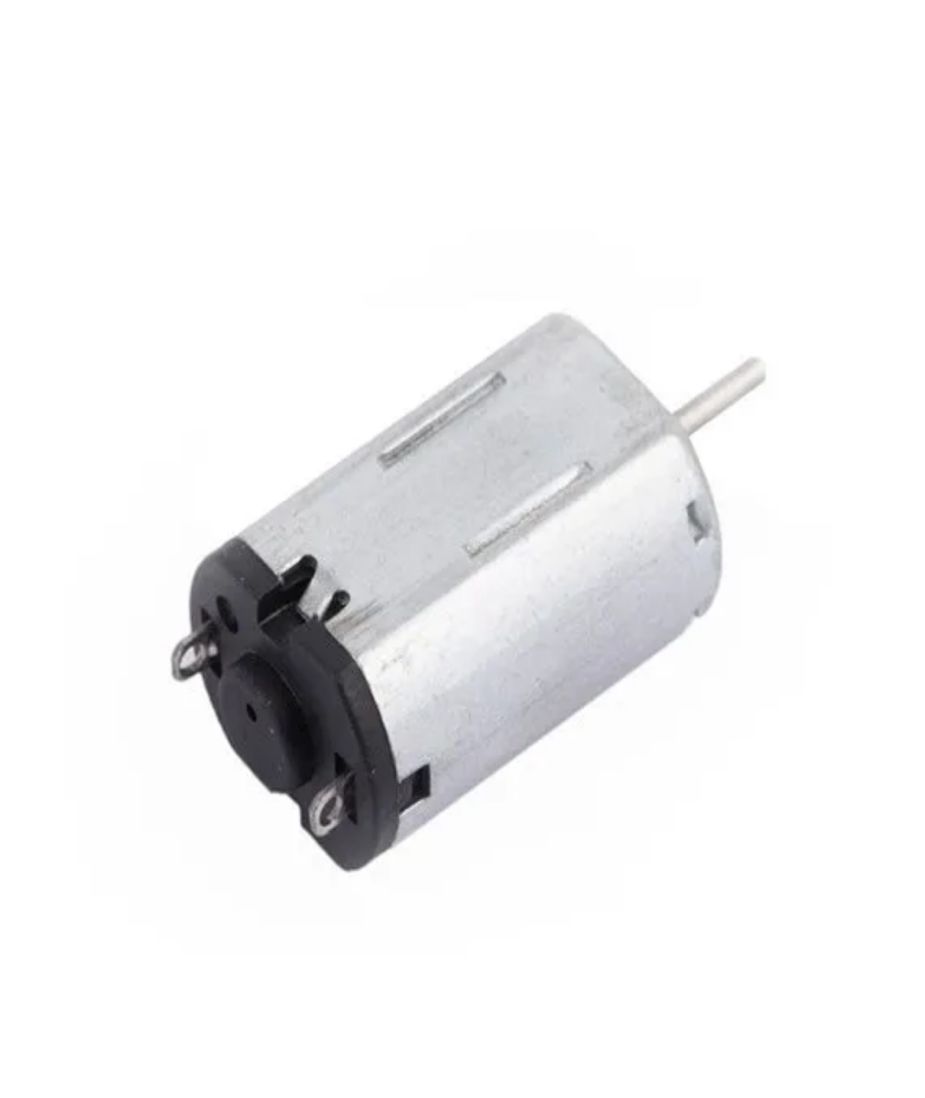

Diameter Ø12mm N30 Brushed DC Motor
Brushed DC Motors

DC1220006

N30 Brushed DC Motor Diameter Ø12mm 6V DC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
DC1220006
Nominal Voltage (V DC)
6
Motor Diameter (Ø mm)
12
Housing Length (mm)
20
Shaft Diameter (Ø mm)
3
No-load Speed (rpm)
12500
No-load Current (A)
0.025
Nominal Speed (rpm)
10600
Nominal Torque (gf.cm)
3
Nominal Current (A)
0.098
Nominal Power (W)
0.33
Stall Torque (gf.cm)
20
Stall Current (A)
0.5
Weight (g)
7.6
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
