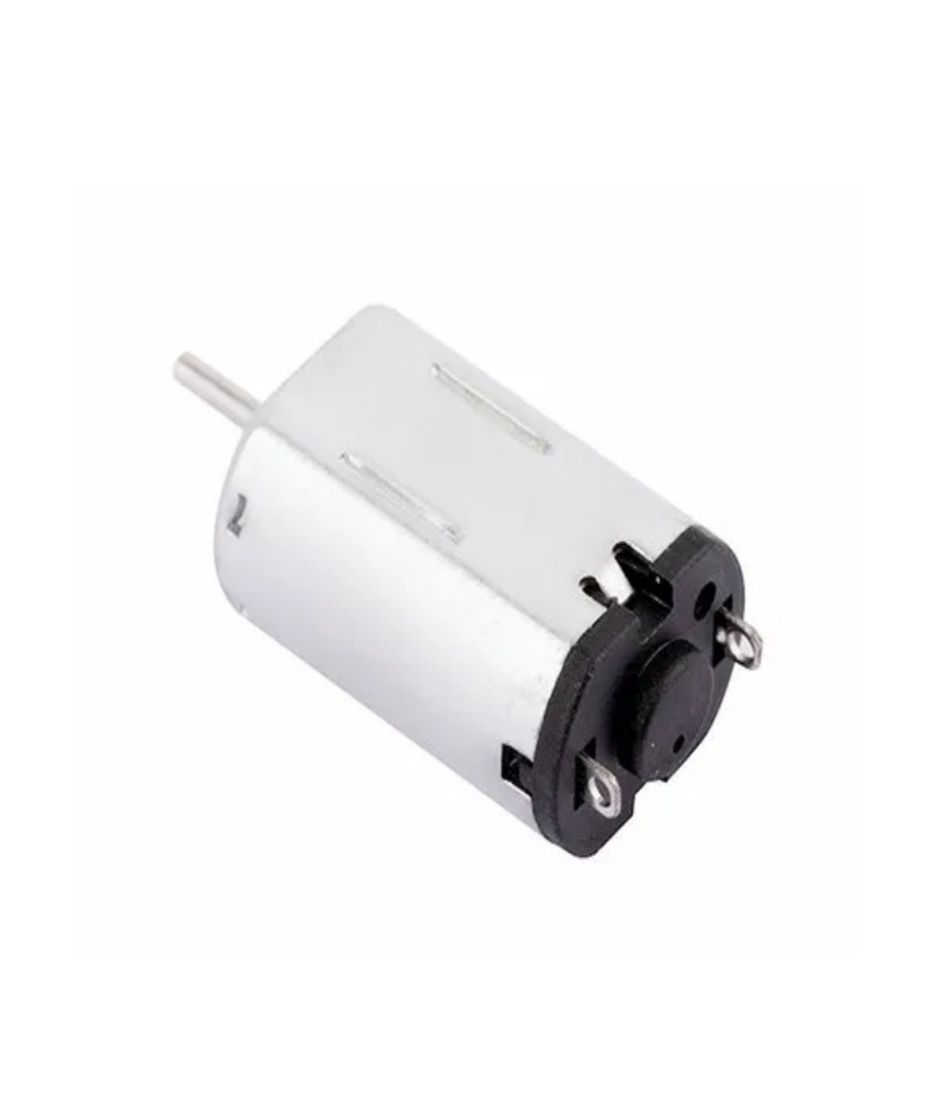

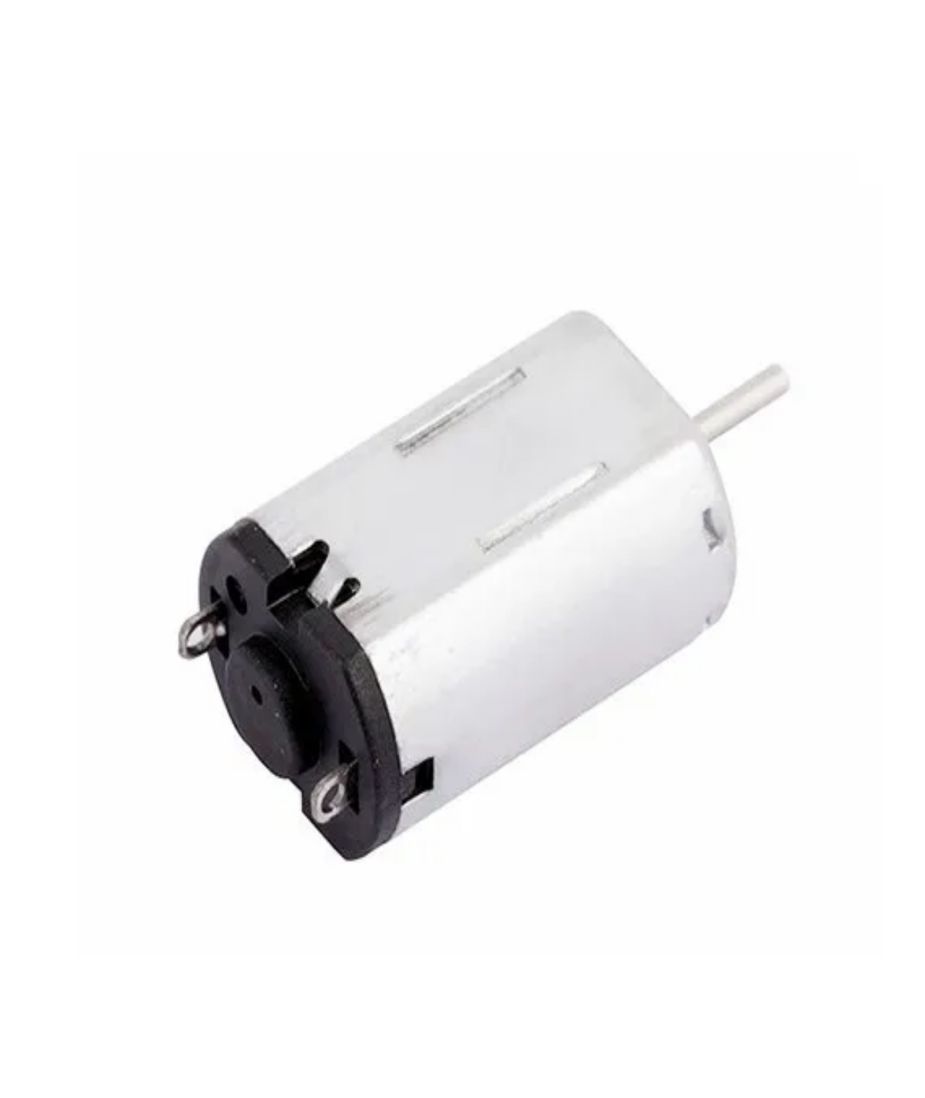

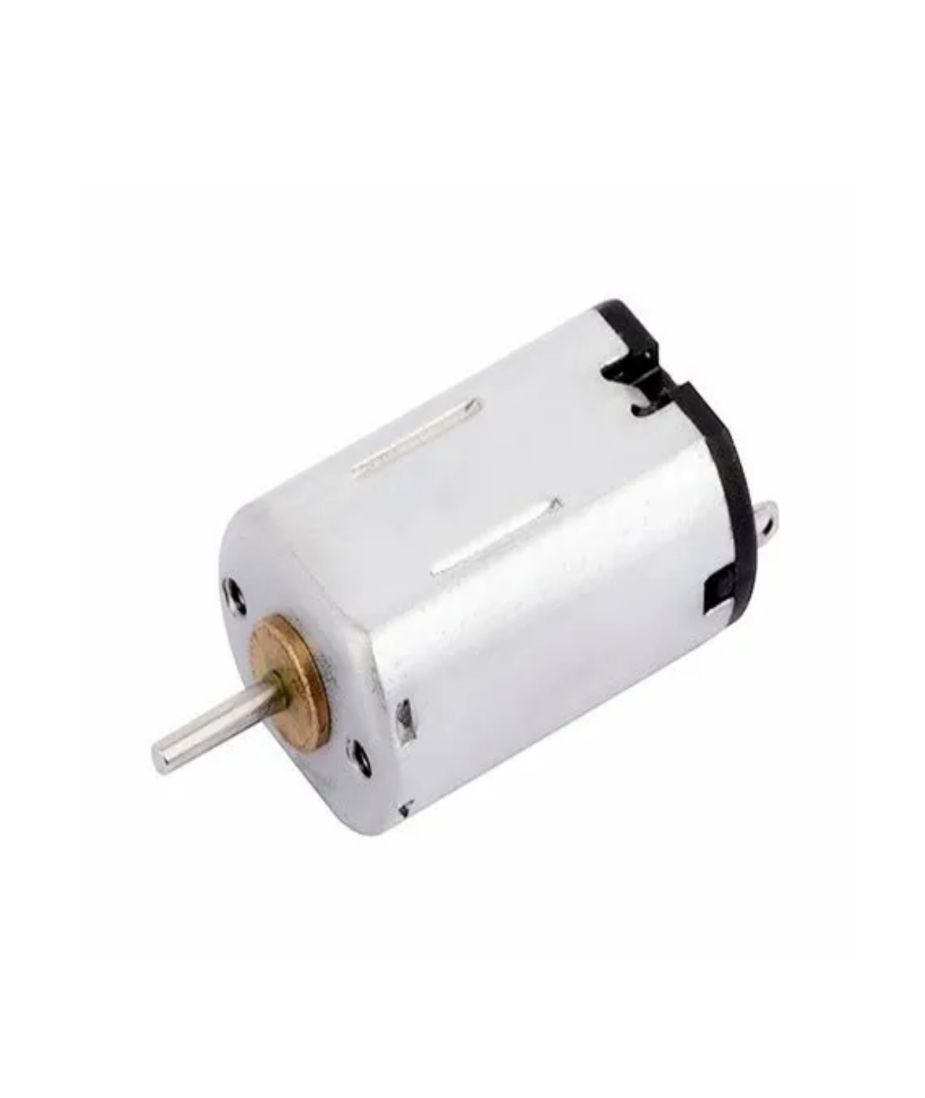

Diameter Ø12mm N20 Brushed DC Motor
Brushed DC Motors

DC12152.4

N20 Brushed DC Motor Diameter Ø12mm 2.4V DC Motor
  • Please contact us for more details
  • On-demand sampling, custom production from your design
  • Committed to excellence in quality and ongoing service
Send a Request

Specifications

Model
DC12152.4
Nominal Voltage (V DC)
2.4
Motor Diameter (Ø mm)
12
Housing Length (mm)
15
Shaft Diameter (Ø mm)
3
No-load Speed (rpm)
14800
No-load Current (A)
0.06
Nominal Speed (rpm)
12100
Nominal Torque (gf.cm)
2.5
Nominal Current (A)
0.26
Nominal Power (W)
0.31
Stall Torque (gf.cm)
14
Stall Current (A)
1.2
Weight (g)
7.5
Ironless Winding
No
Internal Rotor
Yes

Dimension Drawing

Downloads
